Diagnose IMRC issues causing codes like P2004, rough idle, or power loss. Learn to test actuators, sensors, and linkages to distinguish mechanical faults from electrical failures. Avoid unnecessary manifold replacements with targeted fixes.
IMRC stands for intake manifold runner control. It operates flaps inside the intake system to adjust how air reaches the cylinders as driving conditions change. A fault may cause a Check Engine Light, hesitation, reduced power, or rough running. The cause can be a broken linkage, vacuum problem, sticking flaps, actuator failure, or incorrect position feedback. An IMRC code does not automatically mean you need a new actuator or manifold. Check the control system and runner mechanism before choosing a replacement.
Safety note: Inspect accessible components with the engine off and cool. Keep fingers and tools away from linkage during commanded tests; electric fans can also start unexpectedly. Do not apply battery voltage to unidentified terminals or force the flaps. If manifold removal involves fuel lines, follow the vehicle-specific pressure-release procedure and keep debris out of open intake ports. Stop driving for severe misfires, repeated stalling, unsafe power loss, or suspected loose internal parts.
The intake manifold distributes incoming air through passages called runners. IMRC changes airflow using movable flaps or butterfly plates. Depending on the engine, the flaps open an additional passage, alter the effective air path, or create swirl or tumble to help air and fuel mix.
Think of it as changing the route or direction of incoming air to suit the engine’s needs. Some variable-length manifolds use longer paths to support torque at lower speeds and shorter paths for higher-speed power. Not every IMRC system changes runner length. Others primarily control air movement within the cylinders.
The engine computer commands the system based on operating conditions such as speed and load. Opening points and default positions vary; there is no universal RPM at which every IMRC should move.
No—they perform different jobs. Parts listings sometimes use “IMRC valve” loosely, so identify the hardware on your engine before ordering.
| Component | What it does |
|---|---|
| Runner flaps and shaft | Change the airflow path or air motion |
| Electric or vacuum actuator | Provides the movement that operates the flaps |
| Control solenoid | Routes vacuum to a vacuum-operated actuator |

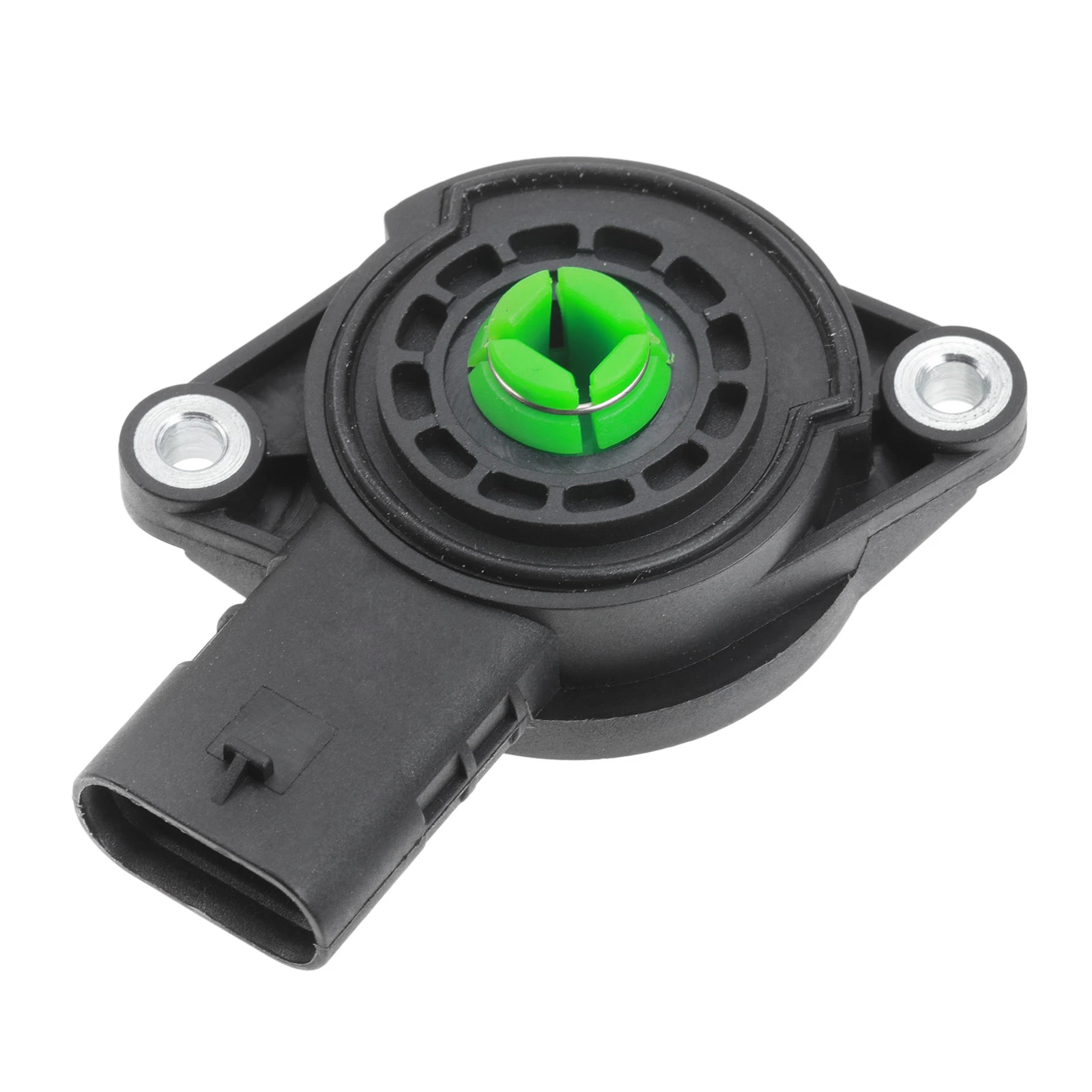

| Position sensor or switch | Reports actuator or runner position to the computer |
Position feedback may be built into the actuator or supplied by a separate component. An IMRC position sensor is not a MAP sensor: one reports position; the other measures intake-manifold pressure.
The actuator is commonly attached to the manifold or connected through a rod or cable. A vacuum solenoid may be nearby rather than on the manifold itself. Use the engine-specific diagram to locate it; connector shape alone is not enough.
These symptoms also occur with ignition, fuel-delivery, and other intake problems. Confirm the fault rather than replacing IMRC hardware based on symptoms alone.

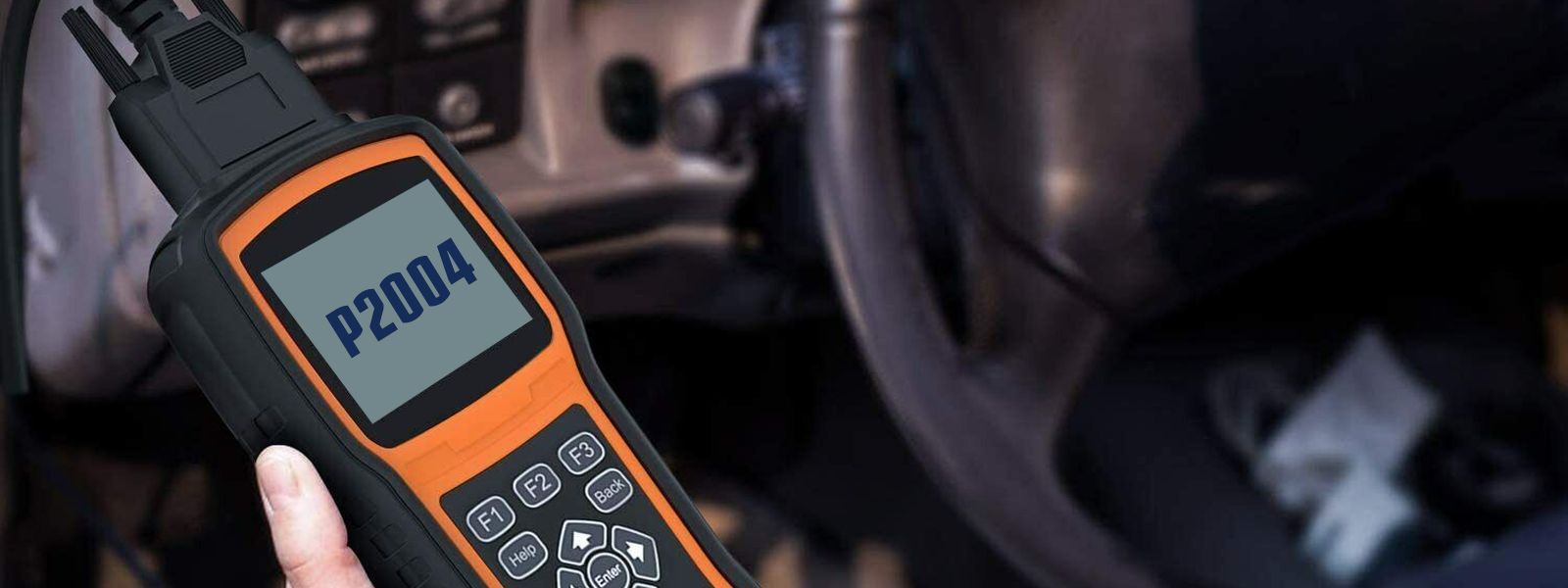

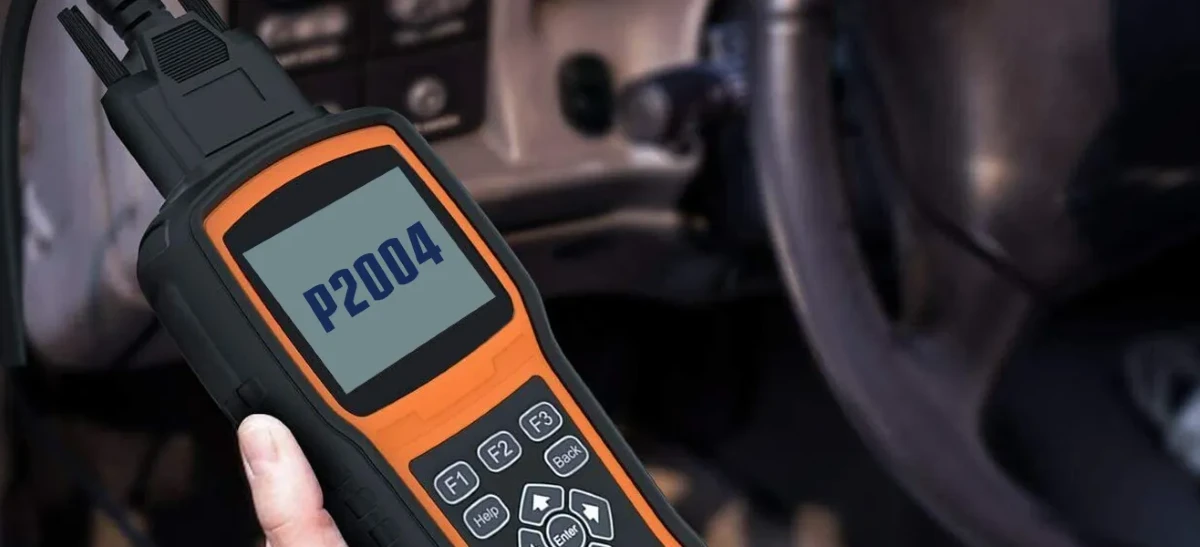

“Circuit low” describes an electrical condition, not low airflow. A position-related code can arise from faulty feedback or a mechanism that cannot reach its expected position. Bank 1 contains cylinder 1; it is not universally the driver or passenger side. Confirm the full code description for your vehicle.
Compare what the computer commands with what the mechanism actually does. Start with visible faults, then use the procedure for your electric or vacuum-operated design.
Save all codes and freeze-frame data before clearing anything. With the engine off, inspect accessible linkage clips, rods, connectors, and vacuum hoses. A disconnected rod can leave the motor moving while the flaps remain stationary. Repair damaged connections before condemning the actuator.
If supported, use a bidirectional scan tool to run the manufacturer’s actuator test. Watch the linkage from a safe distance and compare commanded position with available feedback. Movement without a corresponding feedback change calls for checking the sensor, its wiring, and its connection to the mechanism. No movement requires checking the actuator’s supply and mechanical load.
A basic code reader may not support this test. Revving the engine in Park is not a reliable substitute because the operating strategy may require load or other conditions.
Vacuum-operated system: Check hoses for leaks, restrictions, and incorrect routing. Where the service procedure permits, use a hand vacuum pump at the specified vacuum level to check actuator movement and vacuum retention. Failure to hold vacuum can indicate a hose, connection, or diaphragm leak. If the actuator works directly but not through its control circuit, investigate the vacuum supply and solenoid.
Electric system: Check power, ground, wiring, and control signals using the correct pinout and test specifications. An audible click is not proof of full movement. Do not jumper a multi-pin actuator or assume a universal resistance value.
If the service procedure allows linkage separation, check the runner mechanism independently with the engine off. Binding, excessive play, or damaged stops points toward a mechanical fault. Do not force motor-driven gears. An actuator can be overloaded by sticking flaps, so fitting another motor without checking the manifold may repeat the failure.
Replace the failed serviceable component when the remaining mechanism is sound. A damaged hose, clip, solenoid, or separate actuator does not automatically justify a complete manifold. Internal flap, shaft, bearing, or stop damage may require a manifold assembly when those parts are not serviced separately.
Cleaning may help confirmed deposits if an approved procedure exists, but it cannot repair worn shafts, broken linkage, failed electronics, or a leaking diaphragm. Avoid indiscriminate intake spraying and keep loosened deposits out of the cylinders.
For a confirmed external-control failure, compare A-Premium IMRC valves, solenoids, and actuators. For damaged internal hardware, check the appropriate A-Premium intake manifold and verify that it includes the runner components required for your repair.
A-Premium provides vehicle-specific aftermarket options at competitive prices, with listed specifications and interchange numbers to help reduce wrong-part orders. Parts are quality-tested, and 24/7 customer support can help clarify fitment before purchase. A-Premium offers a 90-day return window; warranty coverage varies by product, with listed IMRC options carrying 2-year coverage. Review the selected product’s terms.
After installation, restore every hose and connector, perform any required adaptation or relearn, and repeat the relevant test. Verify that movement and feedback agree and that the original symptoms and codes do not return. Clearing codes alone is not confirmation.
Ready to repair a confirmed fault? Find the A-Premium IMRC replacement for your engine and check its OE cross-reference before ordering.
Urgency depends on the symptoms and failure. A steady warning light with normal running may allow a short, gentle trip for diagnosis. Avoid hard acceleration. Stop for severe misfires, repeated stalling, unsafe power loss, or suspected internal breakage.
It means intake manifold runner control. Ford has used multiple electric and vacuum-operated designs, so location, activation conditions, and test procedures depend on the engine and model year.
No. Incorrect feedback is one possibility, but worn stops, sticking flaps, linkage problems, or wiring faults can also produce a range/performance code.
Do not count on it. Fuel additives cannot repair electrical or mechanical faults, and they may not reach the affected runner surfaces. Confirm deposits and use the approved cleaning procedure.
No. The throttle body controls overall intake airflow; IMRC changes airflow distribution or motion within the intake system. They are different components and require different tests.
