P0123: Throttle/Pedal Position Sensor A Circuit High Input

The P0123 is a fault code that often appears in car repairs and applies to all car manufacturers. This code specifically refers to the Throttle/Pedal Position Sensor/Switch “A” Circuit High. In the car's electronic throttle control (ETC) system, the accelerator pedal position sensor plays a key role. It is responsible for transmitting the position information of the accelerator pedal to the throttle control module in the form of an electrical signal. This information is the key reference for the throttle actuator to control the opening of the throttle valve.

The P0123 code is a generic OBD-II code that indicates a problem with the Throttle Pedal Position Sensor (TPPS) or the Throttle Position Sensor (TPS) circuit. It is specifically related to the voltage signal from the throttle position sensor being higher than the expected range set by the manufacturer.

When the engine control module (ECM) or powertrain control module (PCM) detects a voltage reading from the throttle position sensor that exceeds the predetermined threshold, it triggers the P0123 code and illuminates the check engine light on the vehicle's dashboard. This code is commonly found in vehicles with electronic throttle control systems.

If you plan to solve P0123 yourself or want to know more about P0123, the following content will be what you need.

P0123 code indicates a problem with the TPS or its circuit. Here are some common causes of the P0123 code:

Faulty Throttle Position Sensor: A malfunctioning or failed TPS can send incorrect voltage readings to the ECM/PCM, causing the P0123 code. This can occur due to wear and tear, electrical faults, or internal sensor failure.

Wiring or Connector Issues: Damaged, loose, or corroded wiring connections or connectors between the TPS and the ECM/PCM can disrupt the voltage signal, leading to the P0123 code. Common issues include broken wires, frayed insulation, or poor connections.

TPS Circuit Problems: Problems within the TPS circuit, such as short circuits, open circuits, or excessive resistance, can affect the voltage signal and trigger the P0123 code. These circuit issues can be caused by damaged wiring, faulty connectors, or component failures.

Throttle Body Issues: In some cases, problems with the throttle body, such as a sticking throttle plate or carbon buildup, can affect the TPS’s operation and cause erroneous voltage readings. These issues can indirectly contribute to the P0123 code.

ECM/PCM Malfunction: Although rare, a malfunctioning ECM/PCM can incorrectly interpret the TPS voltage readings and trigger the P0123 code. This possibility should be considered after ruling out other potential causes.

It should be noted that the specific reason for the P0123 code may vary with the car's brand, model and year. Proper diagnostic coding requires appropriate testing and professional skills. It is recommended that you seek professional assistance or consult qualified technicians to make the correct diagnosis and repair.

The common symptoms of the P0123 fault code are typically related to the throttle pedal position sensor and its ability to communicate with the engine control module (ECM) or powertrain control module (PCM). Here are some of the most frequently observed symptoms:

Erratic Acceleration: The vehicle may experience inconsistent acceleration, either hesitating or surging unexpectedly when the driver presses the gas pedal. This is because the ECM/PCM may not be receiving accurate information about the position of the throttle pedal, leading to improper throttle control.

Delayed Throttle Response: The throttle response may feel sluggish or delayed, meaning there is a noticeable lag between pressing the gas pedal and feeling the engine respond.

Check Engine Light Activation: The vehicle's check engine light (or malfunction indicator lamp, MIL) will typically illuminate on the dashboard when the P0123 code is triggered. This is the vehicle's way of alerting the driver to a potential issue with the throttle control system.

Engine Stalling or Idle Issues: In some cases, the engine may stall unexpectedly or have difficulty maintaining a stable idle speed. This can be due to the ECM/PCM misinterpreting the throttle pedal position and adjusting the engine's throttle incorrectly.

Increased Fuel Consumption: Faulty throttle position sensors can lead to the engine operating inefficiently, potentially resulting in increased fuel consumption.

Transmission Shift Issues: Since the transmission often relies on throttle position information for proper shifting, a fault in the throttle position sensor can lead to issues with transmission shifting, such as delayed or harsh shifts.

It is important to note that these symptoms may differ according to the particular vehicle and the severity of the problem.If you experience any of the above, it is recommended that your vehicle be examined by a specialist in order to diagnose and resolve the problem immediately.

Diagnosing the P0123 fault code mainly involves checking and testing the throttle pedal position sensor. The following are general diagnostic steps:

Check the sensor connection: First, disconnect the connecting plug of the throttle position sensor, and check whether there are cracks or abnormalities in the plug and whether the pins are corroded or rusted. If problems are found, they should be cleaned or replaced.

Use the diagnostic tool to observe the data flow: Connect the diagnostic tool, turn on the ignition switch, and observe whether there is data output from the "throttle position sensor data flow". If there is no data output, further inspection of the sensor or related wiring may be required.

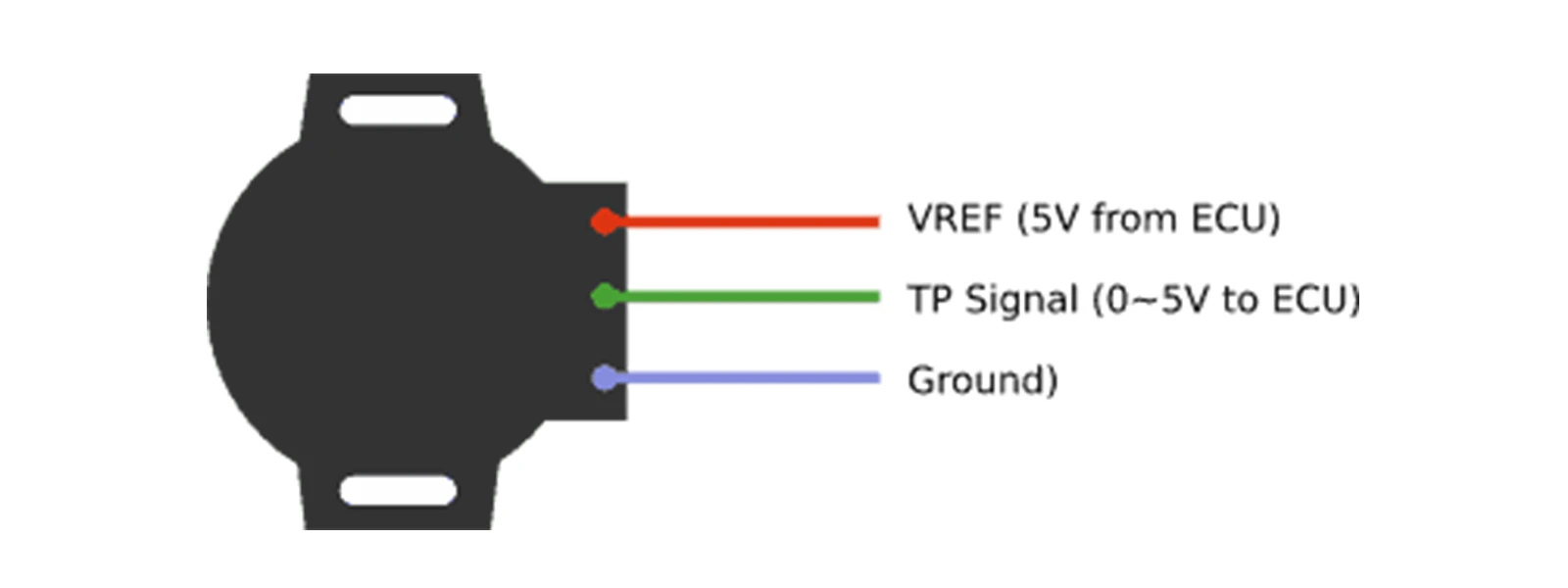

Measure the operating voltage: When the ignition switch is in the LOCK state, disconnect the plug of the throttle position sensor, and then when the ignition switch is on, measure whether the specific pin of the sensor has a normal operating voltage output. If the voltage is abnormal, it may be a problem with the sensor itself or related circuits.

Check the ECM/PCM connection: Sometimes, it is also necessary to check whether the terminal connection between the ECM/PCM and the throttle body is poor or loose. If there is a problem with the connection, it may also cause the P0123 fault code to appear.

Note： Consult your vehicle manual or a professional for specific procedures and instructions.

Fixing a P0123 fault code usually involves inspection and possible cleaning or replacement of the throttle pedal position sensor. Here are the general repair steps:

Check whether the throttle valve is dirty: loosen and disconnect the throttle valve connecting hose, spray the throttle valve with carburetor cleaner, and brush it clean with a brush. Reinstall the air intake hose after cleaning. If the throttle valve is too dirty, it may be the cause of the P0123 fault code. After cleaning the throttle valve, retest the vehicle to see if the fault is resolved.

Check the sensor and its wiring: If the fault persists after cleaning the throttle, you need to check the throttle position sensor and its wiring for short circuits, open circuits, or poor contact. This may require voltage and resistance measurements using professional diagnostic tools.

Check the ECU (Electronic Control Unit): If there are no problems with the sensors and wiring, then you may need to check whether the ECU is faulty. The ECU is the brain of the vehicle, responsible for receiving sensor signals and controlling engine operation. If the ECU fails, it may need to be replaced.

After completing the repair for the P0123 code, it is recommended that the vehicle be tested to make sure that the problem has been solved. If the problem continues, it may be necessary to carry out further checks on relevant systems or components. If you do not have the tools and experience to test a sensor circuit correctly, it is advisable to get professional help. For those with advanced technology and experience, reference to the service manual can be helpful in the testing and replacement of TP sensors.

To prevent the occurrence of the P0123 fault code, it is crucial to adhere to the manufacturer's maintenance schedule and service the throttle system regularly. Periodically cleaning the throttle body helps prevent carbon buildup, which can lead to sensor malfunctions. Additionally, inspecting and maintaining the wiring and connections for the throttle position sensor (TPS) is vital to ensure proper communication with the vehicle's control unit.

Using high-quality fuel can also minimize the risk of sensor issues. Responsible driving habits, such as avoiding aggressive acceleration and deceleration, can help reduce wear and tear on the throttle system. Promptly addressing other fault codes is also crucial, as they may be related to or causing the P0123 code. Regularly scanning for codes using an OBD-II scanner allows for early detection and resolution of any issues.

Remember, regular maintenance and prompt issue resolution are fundamental in preventing the occurrence of the P0123 fault code.
