P0138 Code: O2 Sensor Circuit High Voltage (Bank 1, Sensor 2)

If your vehicle's check Engine light has recently been illuminated, it's important to diagnose the underlying issue as soon as possible. One common trouble code that can trigger the warning light is P0138 - this code is related to the downstream oxygen (O2) sensor in your vehicle's exhaust system. Left unaddressed, a P0138 code can lead to a range of driveability issues, from reduced fuel economy to increased emissions. In this blog post, we'll dive deeper into what the P0138 code means, common causes, and the steps you can take to properly diagnose and fix the problem - crucial information for maintaining your vehicle's performance and emissions compliance.

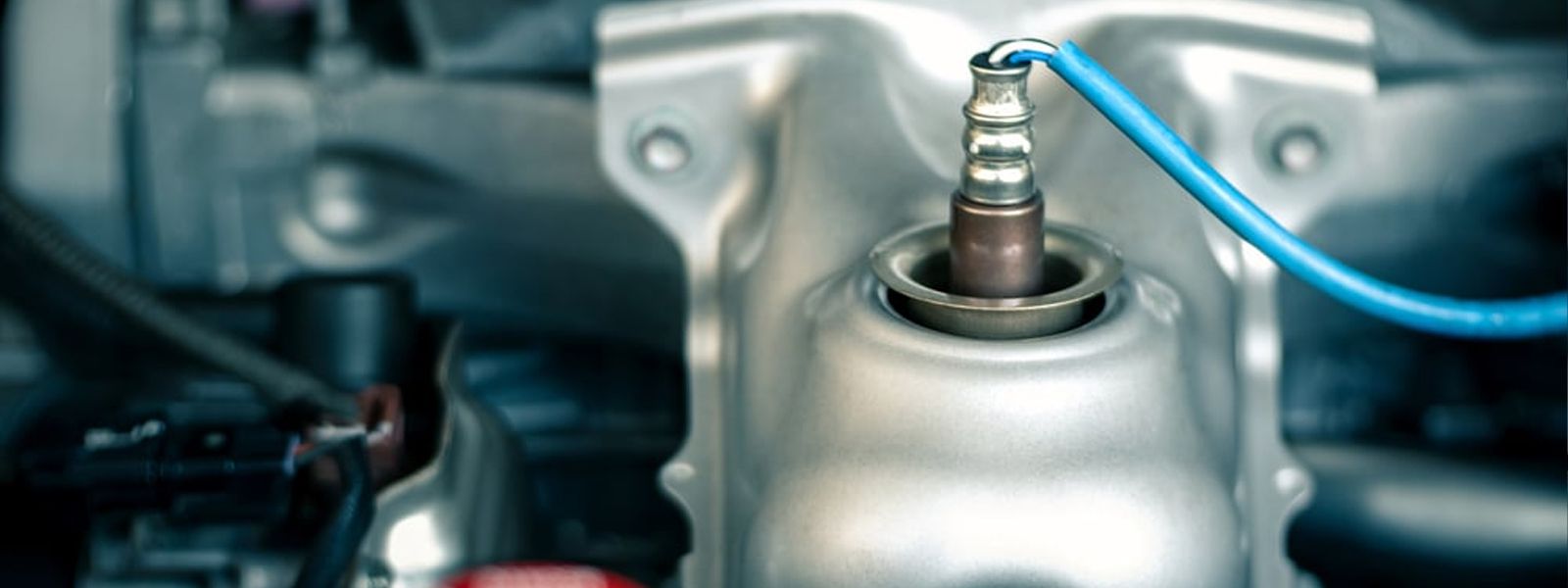

The P0138 diagnostic trouble code denotes an issue with the downstream oxygen (O2) sensor in a vehicle's exhaust system. Specifically, this code signifies the engine control module (ECM) has detected that the voltage or resistance of the posterior O2 sensor is beyond the customary operating range. The downstream O2 sensor is situated after the catalytic converter and is utilized to monitor the efficiency of the converter. If the ECM registers voltage or resistance surpassing the anticipated parameters, it will set the P0138 code.

• Downstream O2 Sensor Malfunctions: The downstream oxygen sensor may provide inaccurate voltage or resistance readings to the ECM due to sensor failure, contamination, or general deterioration over time.
• Wiring-Related Problems: Concerns with the wiring harness or connections to the downstream O2 sensor can lead to values outside the normal voltage/resistance range. This includes issues such as damaged, corroded, or loose wiring.

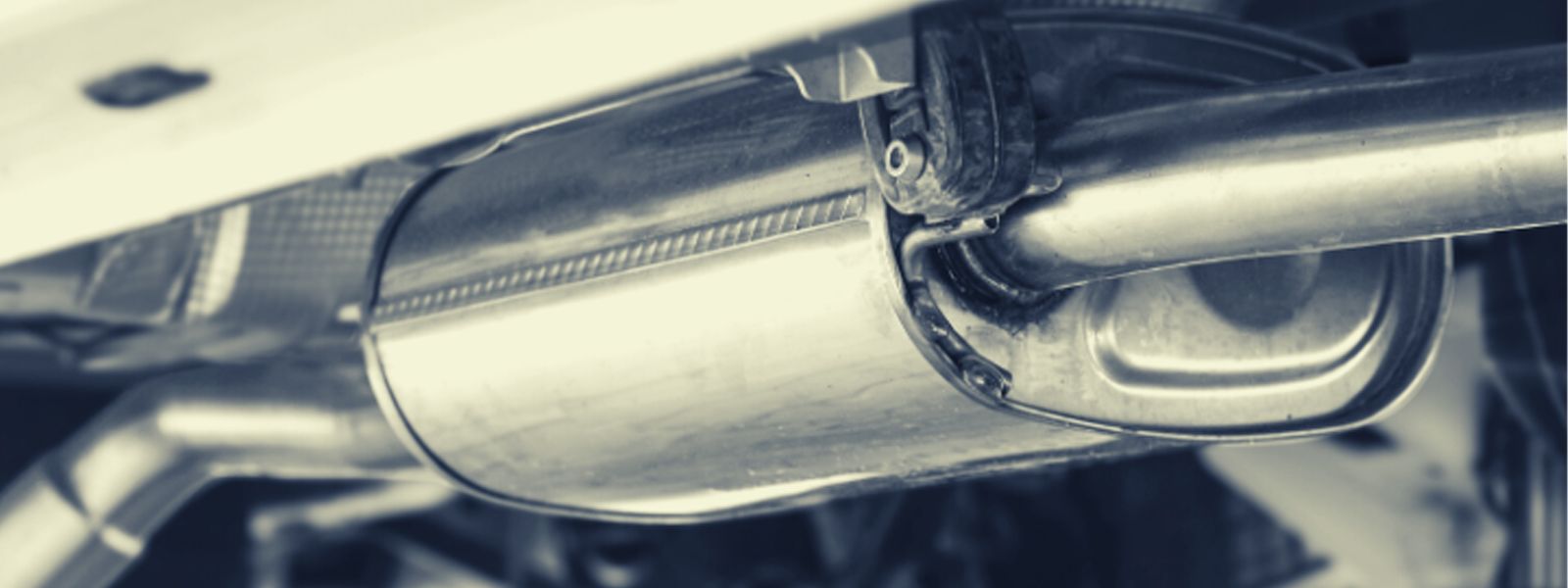

• Catalytic Converter Complications: Problems affecting the catalytic converter, for instance, a blockage or internal damage, have the potential to trigger abnormal downstream O2 sensor readings. A failing converter may lack the necessary capability to properly process exhaust gases.
• Exhaust System Leaks: Leaks present in the exhaust system, either upstream or downstream of the catalytic converter, can influence the readings obtained from the downstream O2 sensor. This allows unprocessed exhaust to bypass the sensor.
• Fuel Delivery System Malfunctions: Issues with the fuel delivery system, like a faulty fuel injector or pressure regulator, can result in an improper air/fuel mixture. This can then impact the readings from the downstream O2 sensor.

The primary symptom associated with the P0138 trouble code is the illumination of the warning light on the vehicle's dashboard. This alerts the driver that the onboard diagnostics system has detected an issue requiring attention. Additionally, the underlying problem causing the P0138 code can lead to a decline in the vehicle's overall fuel efficiency. This is often due to an imbalance in the air/fuel mixture as a consequence of the downstream oxygen sensor malfunction.

Operators may also notice other indicators, such as uneven idling, stalling, hesitation, or a lack of engine power when accelerating. These issues are connected to the downstream oxygen sensor's inability to properly monitor the exhaust and adjust the air/fuel ratio accordingly. Furthermore, the P0138 code is related to the vehicle's emissions control system, which can cause the vehicle to fail a mandatory emissions test or inspection in areas where these are required.

1. Downstream Oxygen Sensor Replacement: If the downstream oxygen sensor is faulty, providing inaccurate voltage or resistance readings, the sensor will need to be replaced. This is often the most straightforward fix for the P0138 code.
2. Wiring Harness Inspection and Repair: Thoroughly inspecting the wiring harness and connections to the downstream oxygen sensor is crucial. Any damaged, corroded, or loose wiring should be repaired or replaced to address any issues in the electrical circuit.
3. Catalytic Converter Inspection and Replacement: Issues with the catalytic converter, such as a blockage or internal damage, can impact the downstream oxygen sensor readings. In these cases, the catalytic converter may need to be inspected and potentially replaced.
4. Exhaust System Leak Repair: Leaks present in the exhaust system, either before or after the catalytic converter, can influence the readings obtained from the downstream oxygen sensor. Identifying and repairing any exhaust leaks is necessary.
5. Fuel System Diagnosis and Repair: Problems with the fuel delivery system, like a malfunctioning fuel injector or pressure regulator, can result in an improper air/fuel mixture. Diagnosing and resolving any fuel system issues may be required.
