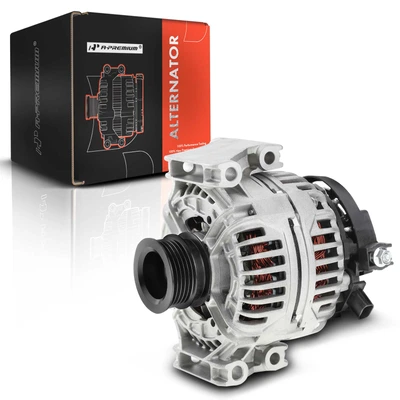

Saturn Vue Alternator

Choose a Car Alternator by Vehicle and Charging Specifications

A car alternator supports the electrical system and replenishes the battery while the engine runs. For an alternator replacement, start with the exact year, make, model, engine, and any production or equipment notes. Then compare voltage, rated amperage, pulley groove count, rotation direction, electrical connector, and mounting pattern on the product page. A 12V alternator with the wrong output or physical configuration is not an interchangeable choice simply because it looks similar.

Which Alternator Specifications Need to Match?

Alternators in the catalog vary across specifications that affect both installation and charging-system operation. Current A-Premium listings include different amperage ratings, pulley groove counts, and clockwise or counterclockwise rotation. Treat each value as vehicle-specific rather than choosing a higher-output unit without application support.

• Vehicle application: Confirm year, model, engine, trim, and every fitment note, including production splits or equipment restrictions.
• Electrical details: Match voltage, amperage rating, regulator arrangement, plug shape, and terminal locations shown for the listing.
• Drive details: Compare pulley type, groove count, rotation direction, belt alignment, and fan configuration.
• Physical fit: Check mounting ears, fastener locations, housing clearance, and the listed interchange numbers against the removed unit.

Charging Symptoms Call for Testing Before Replacement

A charging warning, repeated battery discharge, dimming lights, unstable accessory operation, or unusual belt-area noise can justify a charging-system inspection, but none of these symptoms proves the alternator has failed. A weak battery, loose or slipping belt, corroded terminals, damaged wiring, poor grounds, a fuse, or a control-circuit fault may create similar behavior.

Test the battery and charging system, inspect the belt and tensioner, and check wiring and voltage drops before ordering. If the complaint is a no-crank condition rather than a discharged battery, inspect the starter motor and its control circuit as a separate part of the diagnosis.

Alternator Replacement Checks Before Installation

Before removal, save any required vehicle settings and follow the vehicle manufacturer's battery-disconnection procedure. Record belt routing, connector orientation, terminal positions, and bracket placement. Compare the replacement with the original unit before installation, including the pulley alignment and mounting dimensions. Do not pull the housing into alignment by tightening the mounting bolts.

Inspect the drive belt, tensioner, battery cables, grounds, and connector condition so an unresolved system fault does not damage the replacement. Install fasteners and electrical connections to the vehicle service information, reconnect the battery as directed, and verify belt tracking, warning-lamp behavior, and charging performance after startup. If test results remain abnormal, stop and diagnose the circuit instead of assuming the new alternator is defective.

Why Alternator Amperage Alone Is Not a Fitment Check

Rated amperage helps identify the charging configuration, but two units with the same output may use different housings, pulleys, plugs, terminals, regulators, or rotation. The same model year may also have more than one factory charging option. Use the vehicle selector, equipment and production notes, original-unit label, and interchange data together. If those references conflict, confirm the application by VIN or manufacturer parts information before purchase.
