The P0352 code means that the vehicle's engine control unit (ECU) has detected a primary /secondary circuit fault in ignition coil B. This is a diagnostic trouble code (DTC) that indicates a specific problem in the ignition system. In this piece, we will enumerate the root causes of this malfunction, outline its telltale symptoms, and most crucially, guide you through diagnosing and rectifying the issue. If you're faced with any challenges related to your car's ignition system, this blog serves as a valuable resource, empowering you to gain a deeper understanding of, and effectively address primary/secondary circuit problems.

<h2>What is the code P0352</h2>
Diagnostic Fault Code (DTC) P0352 indicates a failure of Ignition Coil B's primary/secondary circuit in the ignition system of the vehicle. Ignition Coil B plays a key role in the ignition process. Its primary circuit receives the voltage from the battery and transmits it to the secondary circuit. The secondary circuit then produces the required high voltage to ignite the combustion process at the spark plugs. When this particular DTC is triggered,it indicates a failure of the primary or secondary circuitry associated with Ignition Coil B.
<h3>Ignition coil B location</h3>
Before further understanding the P0352 code, it is necessary to introduce the location of the <a href="https://a-premium.com/ignition-coil">ignition coil</a> B. The precise position of Ignition Coil B varies based on the make, model, and engine configuration of the vehicle. Typically, the ignition coil is situated close to the engine's cylinder head or valve cover. It might be mounted directly atop the spark plug or positioned nearby within the ignition system's layout.
Some vehicles have a coil-on-plug (COP) ignition system, in which each spark plug is directly connected to a special ignition coil. In this case, it is likely that ignition coil B corresponds to a specific cylinder in the engine, thus helping to locate it. To ascertain the exact whereabouts of Ignition Coil B, it is recommended to refer to the vehicle's service manual or wiring diagrams tailored to your specific make and model.
<img src="https://media.cdn.a-premium.com/2022/item/image/4c3017ca1b7048719b547de44ede45e8_width_1600_height_600.jpg" alt="Ignition coil B location" width="1600" height="600" />
<h2>What can cause a P0352 code</h2>
Determining the root cause is critical to effective troubleshooting. We will outline the typical reasons why the P0352 code appears.
<ul>
<li>Coil failure: It may be due to the ignition coil itself, such as insulation rupture or internal short circuit.</li>
<li>Coil circuit problems: There may be wire breakage, poor contact, or a short circuit in the primary/secondary circuit of the coil.</li>
<li>Power supply problem: The voltage required by the ignition coil may be unstable or insufficient.</li>
<li>Lead and connection issues: The ignition coil leads or connections may be loose or damaged.</li>
<li>Sensor failure: Sensors that affect ignition control, such as knock signal, crankshaft position signal, camshaft position signal, etc., may be abnormal, causing ignition coil B primary/secondary circuit failure.</li>
<li>ECU failure: If the ECU (electronic control unit) fails, it may not be able to correctly control the ignition process of the ignition coil, resulting in failure.</li>
</ul>
In addition, as the operating life of the car increases, carbon deposits, pollution in the <a href="https://a-premium.com/spark-plug">spark plug</a>, and damage to the insulator will also cause leakage of the secondary circuit and cause failure when the operating conditions of the circuit breaker change, changes in factors such as contact oxidation and ablation will have a certain impact on the secondary voltage, making the fault more serious.

<h2><a href="https://a-premium.com/engine">https://a-premium.com/engine</a>What are the symptoms of the P0352 code</h2>

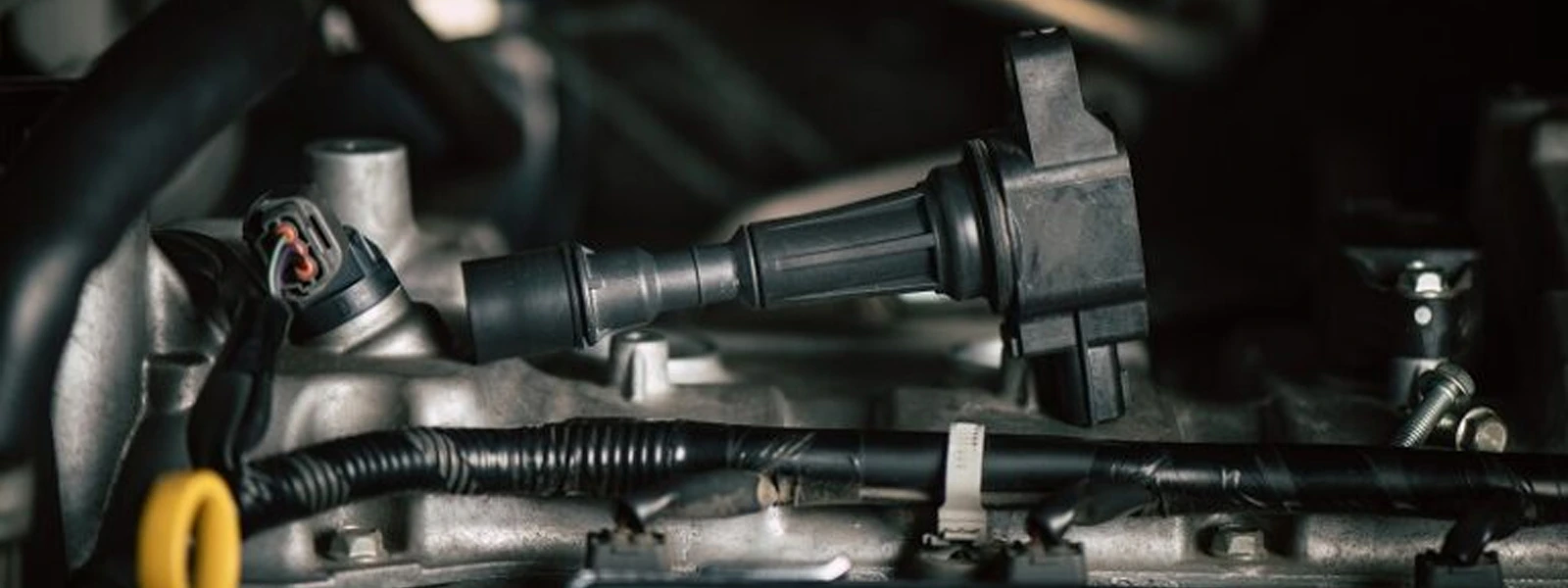

If you have the following symptoms while driving, you are most likely encoded P0352. To prevent more serious problems in the future, it is best to fix this error code now. If you have questions about repairs and diagnostics, consult a service manual or mechanic.
<ol>
<li>Engine vibration: Because the ignition coil B is damaged, the spark plug cannot penetrate and ignite the flammable gasoline well, causing the engine to not work properly, which in turn causes severe vibration.</li>
<li>Increased fuel consumption and decreased power: With the failure of ignition coil B, the flame jumping ability of the spark plug is reduced, which affects the combustion efficiency of combustibles in the internal combustion engine, resulting in fuel consumption and power attenuation.</li>
<li>Carbon deposition: Failure of the ignition coil B will prevent the combustible mixture from being fully burned, thereby generating carbon deposits and adhering to the spark plug or other <a href="https://a-premium.com/engine">engine parts</a>.</li>
<li>Insufficient ignition energy: A short circuit in the ignition coil B winding may cause the voltage generated by it to be too low, resulting in insufficient ignition energy, and the spark plug electrode may turn black too quickly.</li>
<li>Ignition system failure: If ignition coil B is open circuit or poorly grounded, it will be unable to generate high voltage, causing the ignition system to fail to work properly, thus affecting the starting and operation of the engine.</li>
</ol>
If the above symptoms occur, it is recommended to go to a car repair shop for professional inspection in time to determine whether the ignition coil B is faulty and repair or replace it accordingly. During the maintenance process, be sure to follow safe operating procedures to avoid unnecessary damage or danger.
<img src="https://media.cdn.a-premium.com/2022/item/image/71da6234cb194161bdf5dad36136ee75_width_1600_height_600.jpg" alt="Symptoms of P0352" width="1600" height="600" />

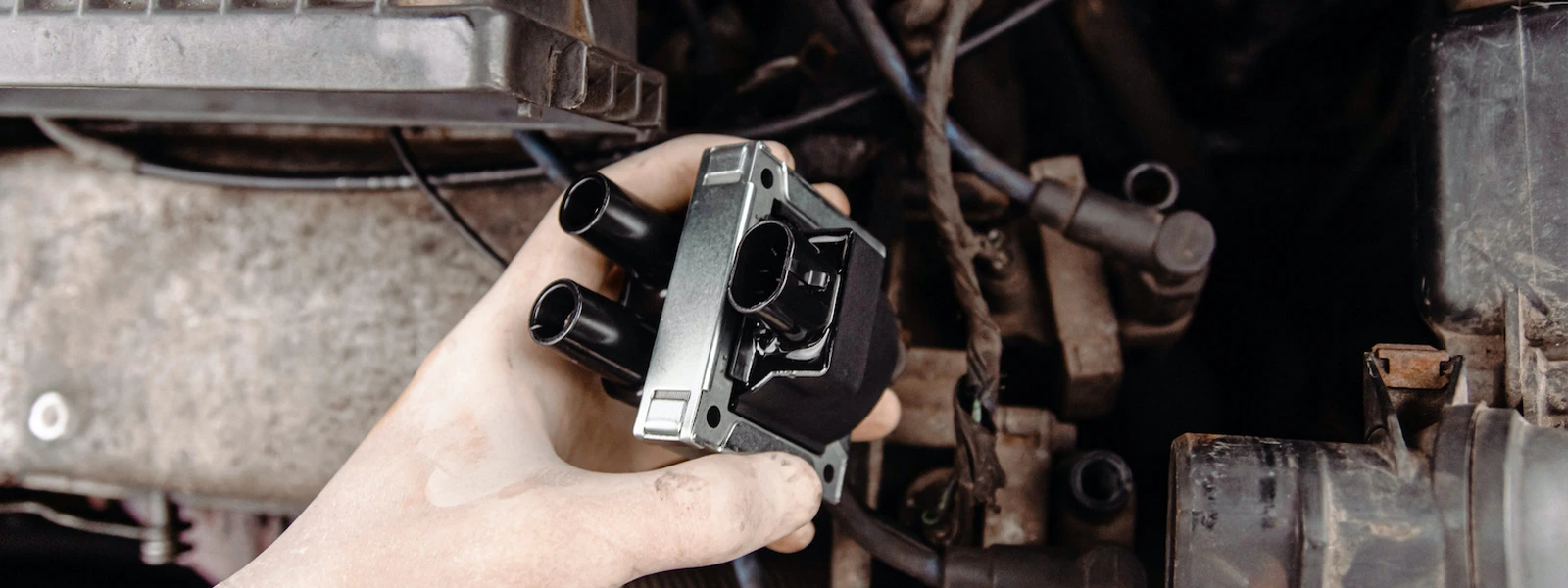

<h2>How to diagnose the P0352 code</h2>
To diagnose the P0352 code (Ignition Coil B Primary/Secondary Circuit Malfunction), follow these steps:
<ul style="list-style-type: circle;">
<li>Gather necessary tools: <a href="https://a-premium.com/code-readers-and-scanners">OBD-II scanner</a>, multimeter, and wiring diagram.</li>
<li>Scan for trouble codes: Connect the OBD-II scanner, retrieve codes, and confirm P0352.</li>
<li>Inspect wiring and connections: Check for damaged wires, loose connections, or corrosion.Repair or replace as needed.</li>
<li>Test ignition coil: Use a multimeter to measure resistance. Replace if outside acceptable range.</li>
<li>Check for engine misfires: Perform a cylinder balance test or monitor misfires. Faulty coil can cause misfires.</li>
<li>Inspect spark plugs: Remove and inspect for wear or damage. Replace worn-out plugs.</li>
<li>Test power and ground circuits: Use a multimeter to check voltage supply and ground connection. Repair any issues.</li>
<li>Test PCM: If the problem persists, consider a faulty PCM after examining other potential causes.</li>
<li>Clear codes and test: Use the OBD-II scanner to clear codes, take the vehicle for a test drive, and monitor for code recurrence.</li>
</ul>
Note: Take caution and seek professional help if you are unsure or lack expertise in this area.
<img src="https://media.cdn.a-premium.com/2022/item/image/48d1f54c3ab04f63bbf2fb7ab1fd065d_width_1600_height_600.jpg" alt="Checking ignition coil B" width="1600" height="600" />

<h2>How to fix the error code P0352</h2>
Fixing this problem usually involves the following steps:
<ul style="list-style-type: square;">
<li>Replace the ignition coil: If it is discovered that the ignition coil is defective, replace it with a new one. Make sure you have a suitable ignition coil for your car.</li>
<li>Repair or replace damaged wiring or connections: If there are any damaged wires, loose connections, or corrosion in the ignition coil circuit, repair or replace them as necessary. Ensure proper connections and good electrical contact.</li>
<li>Replace spark plugs: If the spark plugs are worn, dirty, or damaged, replace them with new ones that match your model.</li>
<li>Check the power and ground circuits: Make sure that the ignition coil and the ground circuit are connected properly. If necessary, fix any power or earth circuit problems.</li>
<li>Clear Trouble Code: After making the necessary corrections, remove the fault codes from the vehicle's memory using an OBD-II scanner. This will reset your system so that you can monitor if there is a recurrence of the code.</li>
<li>Test Drive and Monitor: Take the car for a test drive to make sure it's running smoothly, with no problems or warning lights. Keep an eye on the system for P0352.</li>
</ul>
When repairing the primary/secondary circuit faults of ignition coil B, please follow the vehicle manufacturer's maintenance manual or relevant technical documentation guidelines. If you are not familiar with car repairs, it is recommended to seek the assistance of a professional technician to ensure that the repair process is safe and effective. Safety procedures must be followed during repairs to keep the vehicle in a safe condition and avoid further damage or danger.

<h2><img src="https://yt-prod-media-assets.s3.us-east-2.amazonaws.com/2022/item/image/f47a2ca3802f4349a3a6e77a29d29390_width_1600_height_600.jpg" alt="Fixing ignition coil B" width="1600" height="600" /></h2>
<h2>Precautions:</h2>
During the troubleshooting and repair process of P0352 fault, car owners and technicians need to pay attention to the following points:
1.Follow the repair manual:&nbsp;When performing repairs, be sure to refer to the vehicle manufacturer's repair manual or relevant technical documentation to ensure correct operation.
2.Use professional tools: Use professional diagnostic tools and equipment to detect and repair faults to improve repair efficiency and accuracy.
3.Pay attention to safety: When performing maintenance operations, be sure to follow safe operating procedures to ensure that the vehicle is in a safe condition and avoid accidents
This blog post provides a comprehensive guide to understanding and troubleshooting P0352 code. The post emphasizes the importance of accurately locating ignition coil B, and provides step-by-step instructions on the definition of P0352 code, cause of failure, performance, and repair.Throughout the blog, we emphasize the importance of seeking professional assistance if unsure or lacking the necessary expertise. It is always recommended to consult a qualified automotive technician for accurate diagnosis and repair.

The P0352 fault code indicates that the ignition coil B circuit is abnormal, affecting engine ignition and vehicle performance. Ignoring this issue can result in engine damage and safety hazards. Solving this problem requires prompt inspection and repair.
