P0353 Code: Ignition Coil C Circuit Causes and Fixes
Diagnose P0353 Ignition Coil C Circuit faults with this guide. Learn causes, symptoms, and fixes for misfires. Includes coil swap tests, wiring checks, and cost estimates to resolve issues safely and avoid catalytic converter damage.
Quick Answer
P0353 means the powertrain control module detected an electrical fault in ignition coil C’s primary or secondary circuit. Coil C commonly serves the third ignition channel and often cylinder 3, but confirm the cylinder layout for the exact engine before removing parts. A failed coil can cause P0353, but loose terminals, damaged wiring, lost power, a poor ground or control circuit, and a PCM driver fault can set the same code. If the Check Engine Light flashes or the engine shakes or loses power, stop driving to reduce the risk of catalytic-converter damage.
Safety note: Ignition systems can generate dangerous high voltage. Switch the ignition off and let the engine cool before unplugging or moving a coil. Do not touch a coil, plug wire, or exposed ignition terminal while the engine is running. PCM control-circuit testing may require a wiring diagram, a high-impedance meter, and an oscilloscope; refer that work to a qualified technician if you lack the correct procedure or equipment.
What Does the P0353 Code Mean?
P0353 is the generic OBD-II description for Ignition Coil “C” Primary/Secondary Circuit Malfunction. Some scan tools show Ignition Coil C Primary Control Circuit/Open. The primary side is the low-voltage power and control side of the coil. The secondary side produces the high voltage that jumps the spark plug gap. Depending on system design, the PCM monitors the coil driver, current pattern, feedback signal, or another electrical response. It stores P0353 when that response is outside the expected range.
This distinction matters: P0353 identifies an electrical circuit problem, not proof that the coil itself has failed. A worn or fouled plug may cause a misfire and increase demand on the ignition system, but it does not automatically explain a coil-control circuit code. Diagnose the circuit and the resulting combustion problem separately.
Is ignition coil C always cylinder 3?
Coil letters normally follow ignition-channel order, so Coil C often corresponds to cylinder 3 on coil-on-plug engines. However, cylinder numbering and coil architecture vary. Some engines use paired coils, coil packs, or manufacturer-specific labels. Use the underhood label, a VIN-matched wiring diagram, or service information to identify Coil C. Do not assume it is the third coil you can see, especially on a V-engine.
Formats such as P0353-00, P0353-13, or P035313 retain the P0353 base fault. An enhanced suffix may add information such as an open-circuit failure type, while “FF” on some scan displays can refer to freeze-frame data rather than a different repair. Interpret the suffix with manufacturer-specific service information.
How Serious Is P0353, and Can You Drive With It?
Treat P0353 as an urgent ignition fault when the engine is actively misfiring. Incomplete combustion can send oxygen and unburned fuel into the exhaust, raising catalytic-converter temperature. A severe misfire can also reduce power when pulling into traffic.
| What the car is doing | Recommended action |
|---|---|
| Flashing Check Engine Light, heavy shaking, raw-fuel smell, stalling, or major power loss | Stop driving. Shut the engine off in a safe place and arrange diagnosis or towing. |
| Steady light with a noticeable misfire or hesitation | Avoid highway speed, towing, and hard acceleration. Have the vehicle inspected promptly. |
| Steady light with normal operation | A short, gentle trip for diagnosis may be reasonable, but an intermittent circuit fault can return without warning. |
What Symptoms and Causes Point to P0353?
The Check Engine Light may be the only symptom when the fault is intermittent. When Coil C cannot fire its assigned cylinder correctly, the driver may notice:
- Rough idle, shaking, or an uneven exhaust note
- Hesitation, weak acceleration, or misfire under load
- Hard starting or occasional stalling
- Reduced fuel economy
- A flashing Check Engine Light during an active misfire
| Possible cause | Clue that supports it |
|---|---|
| Failed ignition coil C | Visible cracking or carbon tracking, or the fault follows an identical coil during a controlled swap test |
| Loose, spread, corroded, or heat-damaged connector | Terminal damage, a broken lock, poor pin tension, moisture, or melting at Coil C |
| Open or shorted wiring | Harness rubbed through, pinched, rodent-damaged, oil-soaked, or melted near a hot component |
| Missing shared power, ground, or fuse supply | Several ignition-coil circuit codes or multiple dead cylinders appear together |
| PCM connector or coil-driver fault | Coil, connector, power, ground, and wiring test correctly, but the specified control waveform is absent |
Oil or water in a spark-plug well can damage the boot and create high-voltage leakage, so repair the leak as well as the ignition fault. PCM failure is possible but should remain a late conclusion after the external circuit has been tested.
How Do You Diagnose the P0353 Code?
- Save all scan data. Record current, pending, and permanent codes plus freeze-frame RPM, load, temperature, and voltage before clearing anything. A cylinder-specific misfire stored with P0353 supports an active combustion problem, while several coil-circuit codes suggest a shared supply or harness issue.
- Identify Coil C correctly. Match the VIN, engine code, cylinder-numbering diagram, and wiring diagram. This prevents testing the wrong coil on Ford and Toyota engines with different layouts.

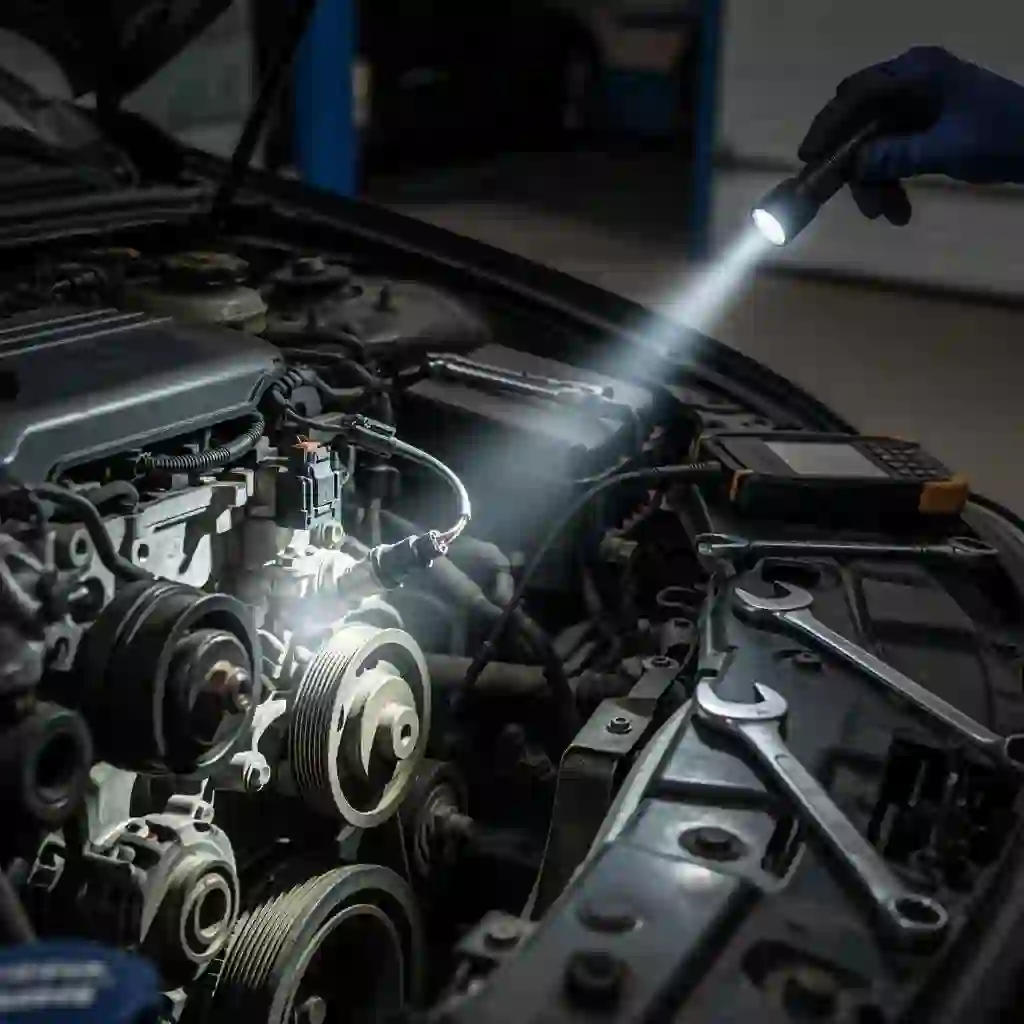

- Inspect the cooled engine. Check Coil C for cracks, tracking marks, oil or coolant contamination, a torn boot, and a damaged spring. Inspect the connector lock, terminals, and nearby harness. Look for a recent repair that left the connector partly seated.
- Perform a controlled coil swap when appropriate. With the ignition off, exchange Coil C with an identical accessible coil. Clear codes, run the engine only as needed, and rescan. If the coil-related or misfire fault follows the moved coil, the coil is a strong suspect. If P0353 stays on channel C, concentrate on its connector, wiring, power, ground, and PCM control.
- Inspect the spark plug and well. Check for a cracked insulator, excessive wear, incorrect gap, fuel or oil fouling, and moisture. Use the vehicle maker’s plug specification and service procedure rather than a universal gap or resistance value.
- Test the circuit from the wiring diagram. Verify the specified power feed, ground or low-reference path, connector terminal tension, and continuity with the circuit de-energized as required. Do not use a conventional incandescent test light on a PCM driver.
- Escalate driver testing when needed. If the coil and external circuit pass, a technician can compare Coil C’s control waveform with a known-good channel using the correct oscilloscope and procedure before condemning or programming a PCM.
Resistance testing is not a universal verdict for modern coil-on-plug units because many contain internal electronics and do not expose both windings in a testable way. Follow the manufacturer’s diagnostic chart instead of applying generic ohm ranges.
Does P0353 diagnosis differ on Ford and Toyota?
The base meaning remains a Coil C circuit fault, but the pinout, cylinder layout, power distribution, coil design, and PCM test strategy differ by engine. Ford F-150 searches, for example, cover several engine families and model generations, so one universal “third coil” diagram would be misleading. Toyota models also use different inline, V-engine, and hybrid powertrains. Start with VIN-matched information and check manufacturer bulletins. A documented connector-seating issue on one application does not make connector replacement the fix for every P0353.
How Do You Fix P0353, and What Do the Parts Cost?
The correct repair follows the failed test. Replace a coil that is physically damaged or fails the swap or manufacturer-specified test. Repair a loose terminal, connector, or wire when the fault remains with channel C. Replace the correct spark plug when it is worn, cracked, fouled, or out of specification, and correct any oil or water leak that contaminated the plug well.
| Confirmed repair | Typical online parts cost | What to verify |
|---|---|---|
| One ignition coil | About $20–$120 | Engine, connector, terminals, mounting, boot length, and OE number |
| Coil connector or pigtail | About $10–$45 | Keying, terminal count, wire gauge, and an underhood-rated repair method |
| Spark plug | About $3–$25 each | Thread, reach, seat, heat range, material, and specified gap |
| Ignition coil and spark plug kit | About $55–$250+ | Cylinder count, kit contents, and exact engine fitment |
These are approximate parts-only ranges. Wiring diagnosis, difficult access, PCM testing, and programming can make a shop repair cost substantially more.
You do not automatically need every ignition coil because one P0353 fault appeared. Replacing one confirmed failed coil is reasonable when the other coils operate normally. Consider a complete set or a coil-and-plug kit when testing identifies several weak coils, multiple coils have similar age-related failures, the plugs are already due, or the labor to reach the bank is substantial.
Why Does P0353 Return After Replacing Ignition Coil C?
A replacement coil will not repair a loose connector, spread terminal, broken control wire, missing power feed, plug-well leak, wrong part, or failed PCM driver. The code can also return if Coil C was identified incorrectly or the new coil’s connector and internal design do not match the engine.
When P0353 returns, rescan before buying another coil. If the code remains tied to channel C after an identical coil was moved, inspect that channel’s connector and circuit. If the circuit tests correctly but the cylinder still misfires, separate the circuit code from possible plug, injector, compression, or mechanical problems. Persistent control-waveform testing belongs with a technician who can protect the PCM while measuring it.
Why Choose A-Premium for P0353 Ignition Parts?
After testing confirms the repair, A-Premium offers competitively priced replacement ignition coils, spark plugs, and ignition coil and spark plug kits. The catalog lets shoppers narrow fitment by year, make, model, trim, and engine instead of choosing a coil only because its housing looks similar.
Before ordering, compare the original part’s OE or interchange number, connector shape, terminal count, mounting design, boot length, and required quantity. For plugs, also confirm thread size, reach, seat type, heat range, and the vehicle maker’s specification. These checks are especially important when one Ford or Toyota model year offers several engines.
A-Premium’s quality-tested ignition options help restore the correct fit and electrical performance without dealership-level parts pricing. If an engine option or kit quantity is unclear, 24/7 customer service can help verify fitment before purchase. Warranty coverage varies by listing, and eligible purchases are supported by a 90-day free return policy under the posted terms.
How Do You Confirm the P0353 Repair?
- Reconnect every coil and harness retainer, then verify that no wire rests against a hot or sharp surface.
- Clear the codes with an OBD2 scanner only after completing the repair.
- Start the engine and check for a smooth idle, stable operation, and no fuel or burning smell.
- Monitor pending codes and misfire data, if supported, during a safe drive under conditions similar to the saved freeze frame.
- Rescan after the drive. Confirm that P0353 does not return and that the applicable readiness monitors can complete.
A permanent code may remain visible until the OBD system completes enough successful monitor checks. Disconnecting the battery is not a substitute for repair verification and may erase useful adaptive or readiness information.
FAQs
Is P0353 the same as a cylinder 3 misfire?
No. P0353 identifies an electrical problem in ignition channel C. A cylinder-specific misfire code reports incomplete combustion. They may appear together, but either can appear alone.
Can a bad spark plug cause P0353?
A damaged or excessively worn plug can increase ignition demand and contribute to coil stress or a misfire. However, P0353 specifically calls for checking the Coil C electrical circuit rather than assuming the plug is the direct cause.
Can a bad fuel injector set P0353?
An injector can cause a cylinder misfire but does not normally create an ignition-coil control-circuit fault. If the engine still misfires after the P0353 circuit is repaired, injector and compression tests may be appropriate.
Will P0353 clear itself after the repair?
The warning light may turn off after successful trips, but stored or permanent information can remain until the monitor confirms the fault is gone. Scan again instead of assuming the absence of symptoms proves the repair.
Should you replace all ignition coils for P0353?
Not automatically. Replace the confirmed failed coil when the others test and operate normally. A complete set may make sense when several coils are failing, the plugs are also due, or access labor is unusually high.
