P0420 Code: Catalyst System Efficiency Below Threshold (Bank 1)
Diagnose P0420 codes effectively. Identify root causes like exhaust leaks, sensor faults, or catalyst failure. Avoid unnecessary replacements by checking misfires and leaks first for a precise, cost-efficient repair.
Quick Answer
P0420 means Catalyst System Efficiency Below Threshold (Bank 1). The engine computer has determined that the monitored Bank 1 catalyst is not performing to its calibrated emissions standard. Possible causes include catalyst deterioration, exhaust leaks, inaccurate sensor feedback, and engine faults that damage or disrupt the catalyst. Save all codes, address misfires or mixture problems, and check leaks and sensor operation before replacing the converter. A short trip may be reasonable if the car runs normally; flashing warnings, severe power loss, or overheating require stopping.
Safety note: Exhaust parts can remain dangerously hot after shutdown. Inspect only after cooling, work in a well-ventilated area, and use rated jack stands when lifting the vehicle. Stop safely for a flashing Check Engine Light with rough running, a glowing converter, severe power loss, or exhaust fumes entering the cabin. Do not keep driving to see whether the code clears.
What Does the P0420 Code Mean, and Why Does It Set?
P0420 means Catalyst System Efficiency Below Threshold (Bank 1). The computer infers that the monitored catalyst has lost enough emissions-conversion capability to fail its calibrated test.

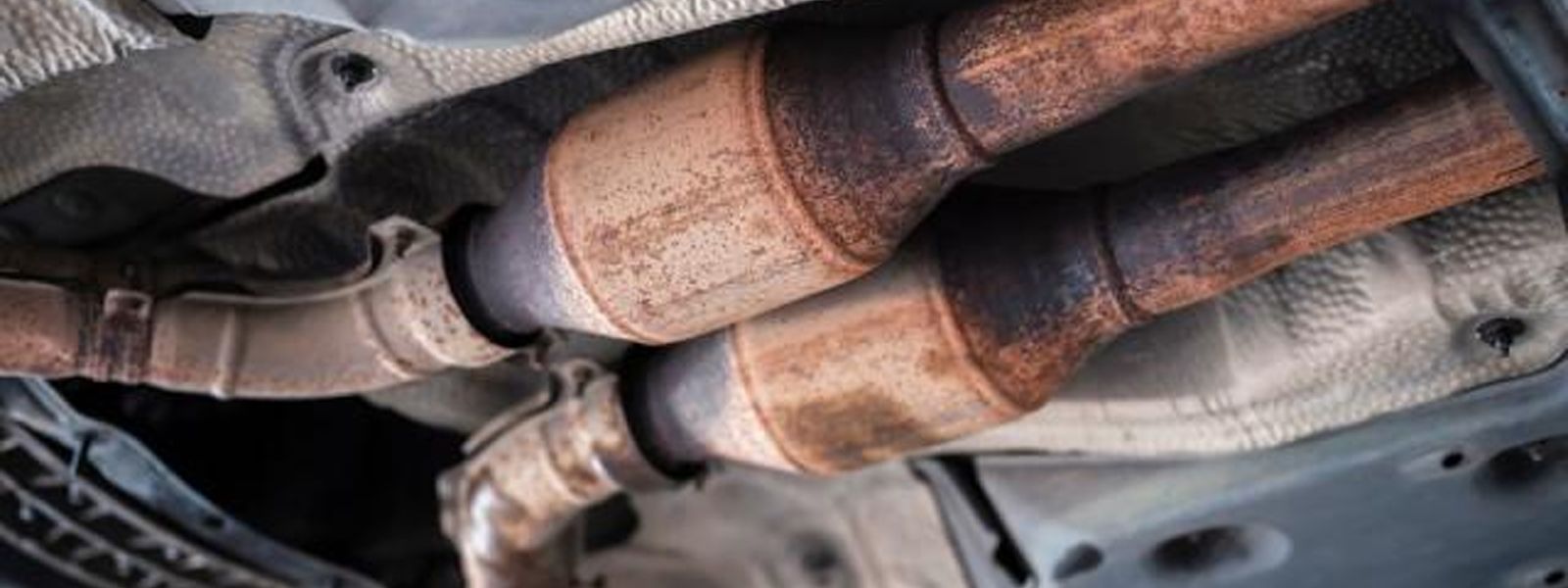

A three-way catalytic converter treats carbon monoxide, hydrocarbons, and nitrogen oxides. Its oxygen-storage material stores excess oxygen when exhaust briefly runs lean, then releases oxygen when exhaust runs rich to help oxidize carbon monoxide and hydrocarbons. This buffers the oxygen changes passing through the converter.
How Does the Computer Detect the Problem?

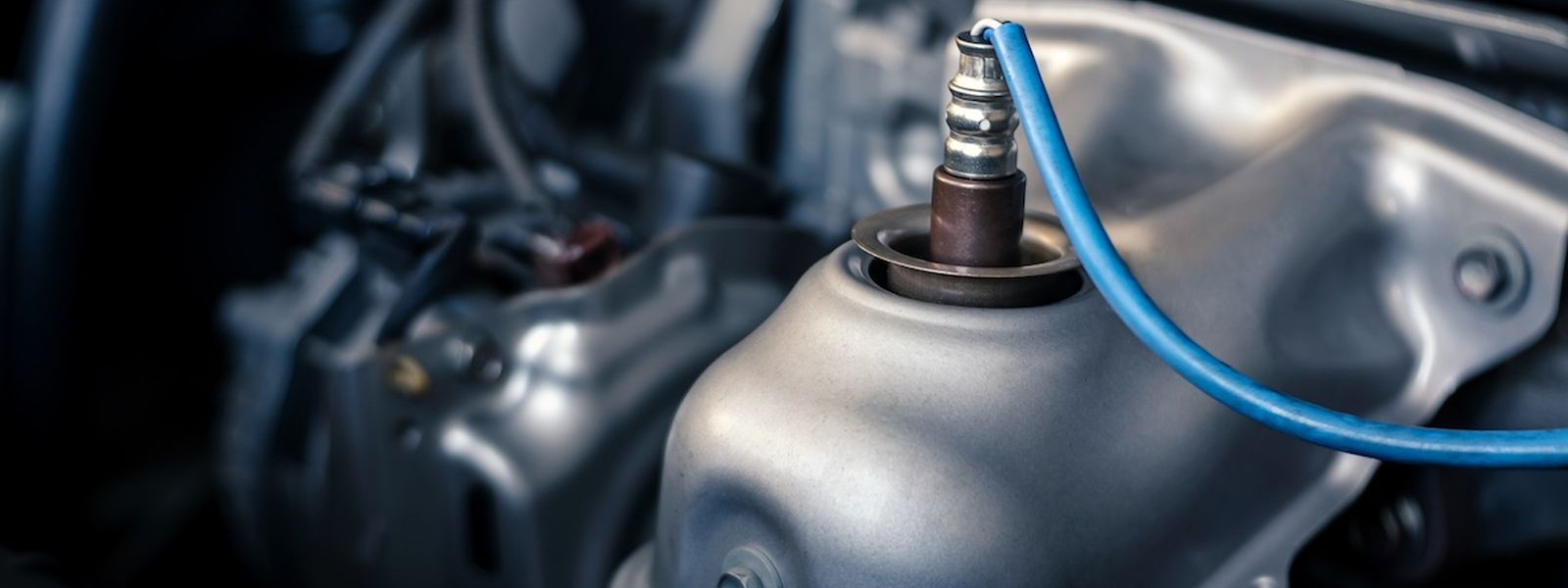

- Before the converter: the upstream oxygen or air-fuel ratio sensor reports mixture changes entering it.

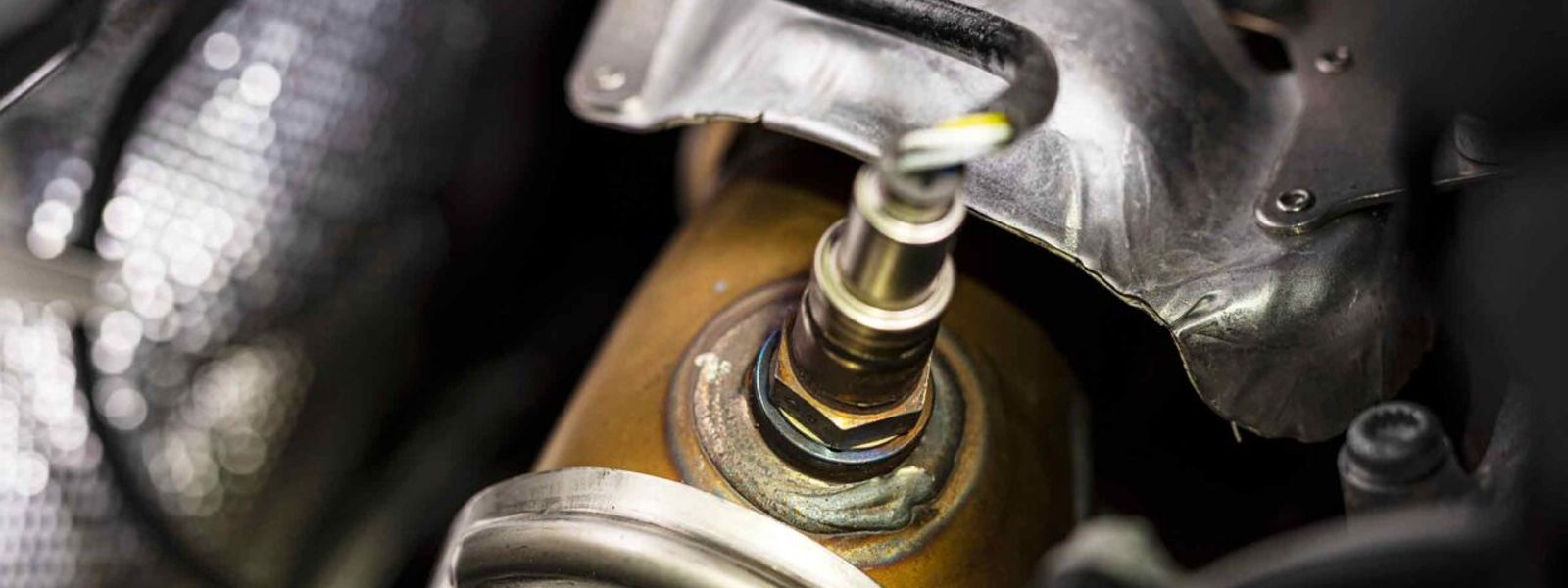

- After the converter: the downstream sensor reports the oxygen response leaving it. A healthy catalyst delays or reduces those changes because it stores and releases oxygen.
- When storage capacity declines: changes reach the downstream sensor sooner or more strongly. Under the required warm-engine and driving conditions, the computer evaluates this response against its programmed limit. Failed testing can store P0420 and illuminate the light once the confirmation criteria are met.
Depending on the vehicle, the calculation uses switching activity, response during controlled mixture changes, or a catalyst model. It is an indirect efficiency assessment—not a direct measurement of tailpipe pollutants. Wideband and narrowband sensor outputs require different interpretation; their displayed voltages cannot simply be compared as if they were identical sensors.
What Does Bank 1 Mean?
Bank 1 is the cylinder bank containing cylinder 1; it is not universally the driver or passenger side. Most inline engines have one bank. Use the engine’s cylinder-numbering and exhaust diagrams to identify the monitored converter. P0430 refers to the corresponding Bank 2 efficiency fault.
Can You Drive With a P0420 Code?
A short trip for diagnosis is usually reasonable if the light is steady, the engine runs smoothly, and power and temperature are normal. Arrange diagnosis soon. Reduced catalyst efficiency can increase emissions without causing an obvious change in how the car drives.
Stop for severe rough running, a flashing warning light, overheating, or major power loss. An active misfire can overheat the converter; a damaged or restricted substrate can impede exhaust flow. P0420 alone does not establish a blockage or a safe remaining mileage.
What Can Cause P0420 on Bank 1?
Likely Causes and Checks That Matter
| Possible Cause | Why It Matters / What to Check |
|---|---|
| Aged, contaminated, or heat-damaged catalyst | Reduced oxygen storage can fail the monitor. Confirm efficiency after other faults are addressed. |
| Exhaust leak near the monitored system | Outside air can distort oxygen feedback. Check joints, cracks, sensor fittings, and flex sections. |
| Sensor, heater, or wiring fault | Incorrect or slow feedback can affect fueling or monitoring. Test the signal and circuit against service specifications. |
| Misfires, rich running, or cylinder imbalance | Abnormal exhaust can overheat or overload the catalyst. Diagnose accompanying codes and engine symptoms. |
| Oil or coolant entering the exhaust | Contamination can damage the catalyst. Investigate abnormal fluid consumption and its source. |
| Incorrect replacement application or calibration issue | Verify emissions fitment, installation, and applicable manufacturer bulletins. |
How Do You Diagnose and Fix P0420 Step by Step?
Check engine operation and leaks before judging the converter. Abnormal exhaust can damage it, while leaks or incorrect sensor feedback can distort the test. This order addresses contributing faults first and helps avoid paying for a converter that does not solve the problem.
1. Record the Codes and Identify the Monitored Converter
Save stored and pending codes, freeze-frame data, and readiness status before clearing anything. Note recent repairs and oil or coolant consumption. Use the engine and exhaust diagram to locate Bank 1 and its monitored catalyst; some systems have several converter sections. Check relevant service bulletins for your exact engine and calibration.
2. Check Misfires and Mixture Problems First
If misfire or rich/lean codes accompany P0420, follow their diagnostic procedure first. With supported scan data, look for a cylinder accumulating misfires and compare short- and long-term fuel trims at warm idle and the specified higher-speed condition. Positive trim means fuel is being added; negative trim means it is being removed. Persistent excessive correction needs diagnosis, not automatic catalyst replacement.
For a cylinder-specific misfire, inspect its spark plug and connections. Where the service procedure permits, swapping its ignition coil with another cylinder can help: a misfire that follows the coil supports a coil fault. A leaking fuel injector needs injector testing. Investigate compression, oil burning, or coolant entering combustion when the evidence points there. Correct the cause, then reassess the catalyst.
3. Inspect the Exhaust and Sensor Wiring
With the exhaust cold, inspect the exhaust manifold, flange gaskets, flex sections, welds, and sensor fittings. Soot trails or cracks help locate leaks, but their absence does not rule one out. Check sensor wiring for melting, chafing, loose plugs, or damage after exhaust work.
Repair confirmed leaks before interpreting oxygen readings. If a leak is hard to locate, have a shop perform a suitable low-pressure test. Do not block the tailpipe as an improvised test or work beneath a vehicle supported only by a jack.
4. Evaluate Sensor Response With the Catalyst Warm
If the car is safe to drive, follow the manual’s warm-up and test conditions. Graph the correct upstream and downstream data using a compatible scanner. Save a recording or have a passenger operate the tool; do not watch the scanner while driving.
On a conventional narrowband system, a downstream signal closely repeating upstream changes during the specified test can support low oxygen storage. A flat or slow signal requires a response and circuit check before blaming the sensor. For wideband systems, use the specified lambda, current, or other data parameter rather than a generic voltage rule.
If your tool only reads codes, contact a repair shop for sensor-response and catalyst testing. Asking for those checks before authorizing parts replacement is more useful than buying a sensor to see whether the light goes out.
5. Confirm Catalyst Failure and Verify the Repair
With engine operation, leaks, and sensor function checked, review supported Mode $06 catalyst results against the correct limits or have a shop perform the prescribed oxygen-storage test. If severe power loss suggests a restriction, request an exhaust-backpressure test as well; efficiency and blockage are different faults.
Replace the converter when testing confirms it has failed, or repair the leak, circuit, or sensor identified earlier. Then complete the vehicle-specific monitor procedure and rescan for pending faults and catalyst readiness. A completed, passing monitor is the useful checkpoint—not simply an extinguished light immediately after clearing codes.
Get the Parts Your P0420 Fix Needs in One Place
From a failed converter to a cracked manifold or misfiring coil, A-Premium.com brings the replacement parts for your confirmed P0420 repair into one convenient online catalog. Compare vehicle-specific options and get the parts needed to restore emissions performance and address contributing engine faults:
- Catalyst and feedback: vehicle-specific catalytic converters and upstream and downstream sensors.
- Exhaust leaks: exhaust manifolds for confirmed cracks or damage requiring replacement.

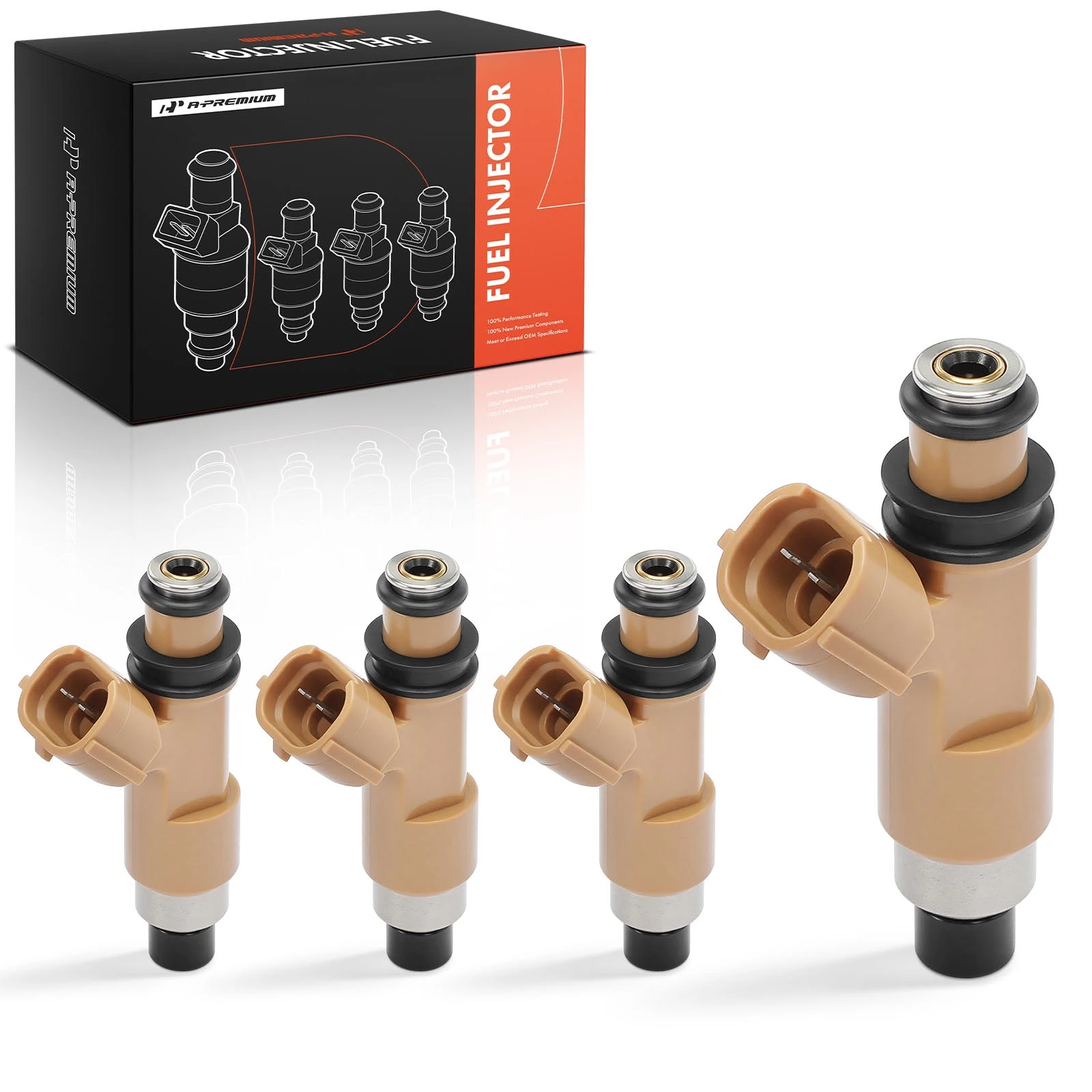

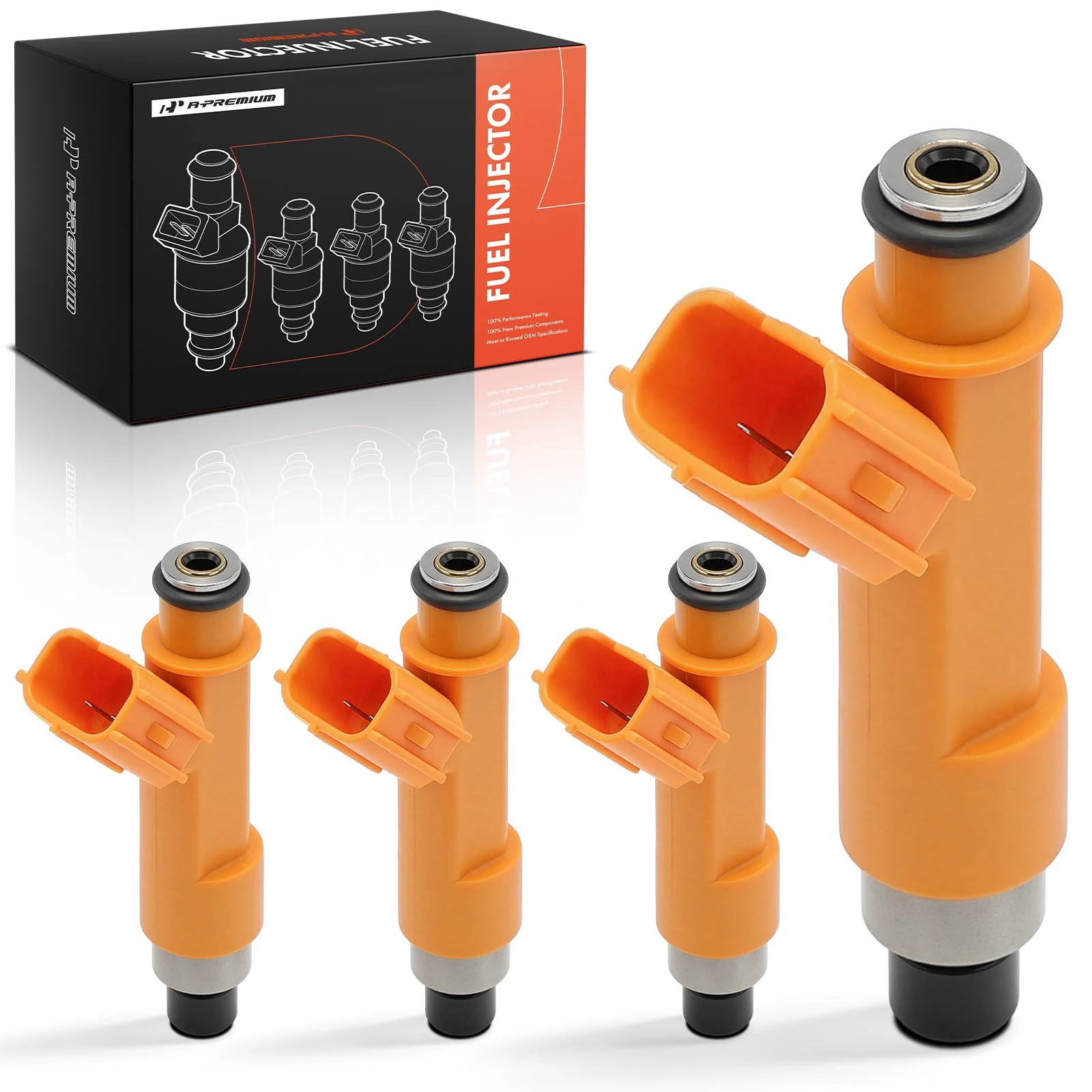

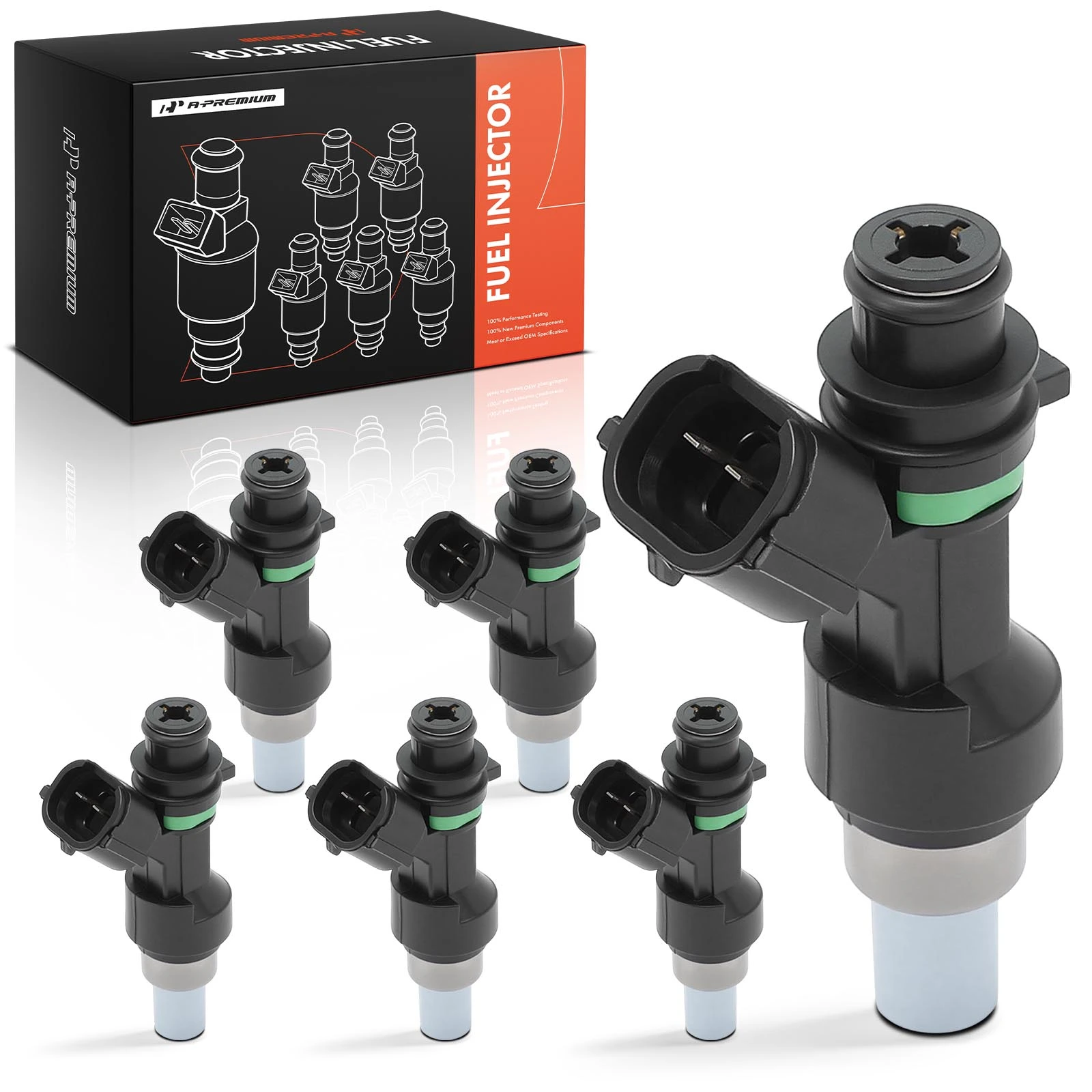

- Ignition and fueling: ignition coils, spark plugs, and fuel injectors for diagnosed combustion faults.
A-Premium offers OE-fit replacement options and quality-focused construction at competitive online prices, backed by product-specific warranty coverage, 24/7 parts and order support, and an eligible 90-day return window. Match the engine, installation position, connector, interchange number, and included parts before ordering.
For converters, physical fit is only part of the choice. A-Premium-brand converters are EPA-compliant options, not CARB-approved replacements. Verify the emissions label, application notes, and rules where the vehicle is registered. If CARB approval is required, select an approved application. The CARB vs. EPA converter guide explains what to check.
FAQs
Does P0420 mean replace Bank 1 Sensor 1 or Sensor 2?
Neither automatically. Sensor 1 is upstream and Sensor 2 is downstream in the usual layout. Test the appropriate sensors and circuits, and replace only a confirmed faulty part.
Does P0420 affect gas mileage?
Catalyst efficiency loss alone may leave mileage unchanged. If fuel economy has dropped, check for misfires, incorrect mixture control, sensor faults, or an exhaust restriction.
Will catalytic converter cleaner fix P0420?
It cannot repair melted, cracked, or worn-out catalyst material. Do not rely on an additive to correct a leak, sensor fault, or engine problem; diagnose the cause first.
Why did P0420 return after a new catalytic converter?
Check the replacement application and emissions specification, installation leaks, sensor operation, and unresolved engine faults. Also confirm whether the scanner shows a new active failure or an old permanent code awaiting monitor verification.
Will P0420 clear itself after the repair?
The light may turn off after the required successful monitor runs. A permanent code, where supported, clears only when the onboard system verifies the repair; a scanner cannot simply erase it.
Does P0420 mean something different on a Ford?
The general efficiency meaning is the same. The monitored converter layout, test method, and limits depend on the engine and calibration, so use the exact Ford service procedure rather than a brand-wide replacement rule.
