Can You Drive With a Bad Idle Air Control Valve? Symptoms and Fixes

The idle air control valve, or IAC valve, meters air around the closed throttle plate so the engine can keep running when your foot is off the accelerator. It also helps the engine catch the idle as you stop and compensate for loads such as the air-conditioning compressor. This component is most common on vehicles with a cable-operated throttle. Many newer vehicles use electronic throttle control and do not have a separate IAC valve, so confirm the vehicle design before testing or ordering a replacement.

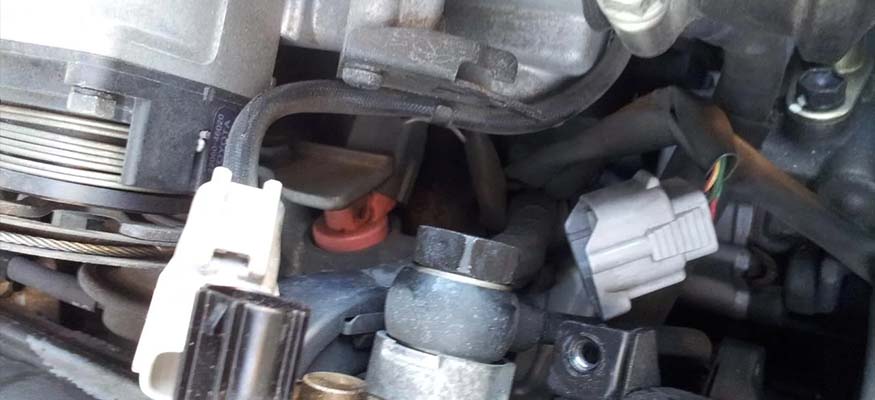

Bad Idle Air Control Valve Symptoms

A failing IAC usually reveals itself when the throttle is closed—not during steady highway driving. Pay attention to the exact moment the problem appears. That operating pattern is more useful than describing the engine as simply “running rough.”

The Engine Dies as You Come to a Stop

The vehicle drives normally while your foot is on the accelerator, but the RPM falls too far and the engine stalls when you brake for a light, coast into a parking space, or shift into Drive or Reverse. This is a strong idle-control clue because the failure appears exactly when the throttle closes and the IAC should take over airflow.

It Starts, but Will Not Idle on Its Own

The engine starts while you slightly press the accelerator, then dies when you release it. A stuck-closed valve or blocked bypass passage can cause this pattern by starving the engine of idle air. A complete no-crank or no-start condition is different and should lead first to battery, starter, ignition, fuel, and engine-mechanical checks.

Warm Idle Stays Abnormally High

A cold engine normally idles faster for a short period. The suspicious pattern is an engine that remains at an unusually high RPM after it is fully warm, or takes too long to settle after you release the accelerator. A valve stuck open can admit excess bypass air, although a vacuum leak can produce the same basic result and must be ruled out.

RPM Hunts Up and Down at a Red Light

The tachometer repeatedly rises and falls while the vehicle is stationary, sometimes with an audible surge. Carbon can make the valve stick and release instead of moving smoothly, while an intermittent connector or winding may cause the command to drop in and out. If the engine also surges under load or at cruising speed, widen the diagnosis beyond the IAC.

Turning On the A/C Nearly Stalls the Engine

At a normal warm idle, switch the A/C on and observe the tachometer. A brief RPM change is normal, but the control system should recover. If the engine continues to shake, drops toward a stall, or dies whenever the compressor engages, the IAC may not be opening enough to compensate for the added load.

An Idle-Control Code Appears

P0505 identifies an idle-control system malfunction, P0506 indicates idle speed lower than expected, and P0507 indicates idle speed higher than expected. These codes support the operating pattern, but none proves the valve itself has failed. The computer only knows that the result is wrong; the next checks determine why.

What Causes an Idle Air Control Valve to Go Bad?

Carbon Makes the Pintle Stick

Oil vapor and intake deposits collect on the pintle and inside the bypass passage. The valve may stick closed, remain partly open, or move in jumps. This is a contamination problem: the electrical section may still work, and cleaning may restore normal movement.

The Motor or Solenoid Fails Electrically

Depending on the design, a stepper motor or solenoid moves the valve. Heat and age can leave a winding open, shorted, or intermittent. In this failure mode, the air passage may be clean but the valve cannot follow the engine computer's command. Cleaning will not repair a failed winding.

The Pintle or Drive Mechanism Wears Out

A worn gear, damaged pintle, or binding internal mechanism can prevent accurate positioning even when resistance readings look normal. This is a mechanical valve failure. It is usually exposed when a scan tool commands movement but the valve or engine RPM does not respond correctly.

The Connector or Harness Interrupts the Command

Loose terminals, corrosion, broken conductors, or damaged insulation can remove power, ground, or a control signal. The valve then appears dead even though it is usable. This is an IAC circuit problem, not an internal valve failure, and replacing the valve alone will not fix it.

Is the IAC Valve Really Bad? Rule Out Other Problems First

The key distinction is when and how the engine runs badly. A true IAC problem is tied closely to closed-throttle airflow and load compensation. Other faults usually leave a different pattern. Use the following comparisons as a working diagnostic route rather than treating every rough idle as a bad valve.

IAC Fault vs. Vacuum Leak

Both can cause a high or unstable idle. The difference is that an IAC fault changes airflow through the commanded bypass valve, while a vacuum leak adds uncontrolled air somewhere else. Inspect split hoses, the PCV system, the intake duct, manifold seals, and the IAC gasket. If available, a smoke test is the clearest way to locate a leak. On a scan tool, a leak may also produce strongly positive fuel trims at idle that improve as RPM rises. Do not replace an IAC until unmetered air has been excluded.

IAC Fault vs. Dirty Throttle Body

A dirty throttle plate or bypass port restricts the path the IAC relies on. The computer may command the valve open correctly, yet the engine receives too little air. Remove the intake duct and inspect the throttle-plate edges and idle passage. If the valve responds to a scan-tool command but RPM barely changes until the passage is cleaned, airflow restriction—not a dead IAC motor—is the better explanation.

IAC Fault vs. Ignition Misfire

An IAC fault changes engine speed but does not normally make one cylinder stop contributing. A misfire often creates sharper, uneven shaking, an irregular exhaust beat, cylinder-specific P030x codes, or misfire counts that continue above idle and under load. A flashing Check Engine Light points away from a simple IAC diagnosis and requires prompt misfire investigation.

IAC Fault vs. Fuel or Sensor Problems

Low fuel pressure, injector faults, or incorrect MAF, MAP, throttle-position, or coolant-temperature data can affect starting, mixture, and drivability beyond idle. If the vehicle also hesitates during open-throttle acceleration, lacks power on the road, or has mixture and sensor codes, follow those clues before testing the IAC. The IAC is primarily an idle-air device; faults that remain strong at cruising speed usually have a broader cause.

Separate IAC vs. Electronic Throttle Control

Many newer vehicles have no separate IAC valve. The throttle motor cracks the throttle plate open to regulate idle. If the parts catalog and service information show no standalone IAC, diagnose the electronic throttle body and its sensors instead of searching for a valve that the vehicle does not use.

If a leak, dirty throttle body, misfire, or wiring defect explains the behavior, repair that cause and recheck the idle before proceeding. If these checks do not reveal the problem, test the valve itself rather than replacing it on suspicion.

How to Test an IAC Valve

Once the engine's behavior remains specific to idle and the external causes have been excluded, testing can answer two separate questions: is the IAC really defective, and is it dirty, electrically failed, mechanically stuck, or simply not receiving a command?

Test procedures and terminal values vary by vehicle, so keep the wiring diagram and manufacturer specifications for the exact year and engine nearby. Do not use a universal resistance number or apply battery voltage to unknown terminals.

Step 1: Reproduce the Fault

Warm the engine fully and record the idle behavior in Park or Neutral. With the brake applied and the area clear, observe whether RPM recovers when the A/C is switched on. Also note what happens as the vehicle returns to idle after a short drive. A valve that fails only cold, only hot, or only under added load may have an intermittent winding, a sticky mechanism, or a command problem that a one-time visual check can miss.

Step 2: Scan Codes and Live Data

Record stored and pending codes before clearing them. Compare desired idle with actual RPM and, where available, watch IAC counts, steps, position, or duty cycle. A high command with a low idle suggests the computer is asking for more air but not getting it; think blocked passage, stuck-closed valve, or insufficient electrical response. A low command with a high idle suggests unwanted airflow from a stuck-open valve or vacuum leak. These data guide the test but do not finish it.

Step 3: Inspect the Valve

With the engine off and cool, remove the valve according to the vehicle procedure. Check the pintle and bypass port for heavy deposits, and inspect the housing, seal, connector, and terminals. Carbon with no physical damage points toward contamination. A cracked pintle, loose internal mechanism, melted connector, or damaged housing supports replacement. Do not force or rotate a stepper-motor pintle unless the service procedure specifically allows it.

Step 4: Command the Valve

If a bidirectional scan tool supports the vehicle, command the IAC through several positions while monitoring RPM. A healthy valve and open passage should produce a controlled change in engine speed. Interpret a failed response carefully:

• The command changes but RPM does not: the pintle may be mechanically stuck, or the bypass passage may be blocked.
• The command and electrical signal are present but the valve does not move: the motor, solenoid, or internal drive is likely faulty.
• No command, power, or ground reaches the connector: diagnose the harness, driver circuit, inputs, or control module before replacing the valve.
• The valve and RPM respond normally: the IAC is capable of working; return to intermittent wiring, leaks, throttle deposits, and other engine controls.

Step 5: Test the Windings and Circuit

Disconnect the IAC and measure resistance only across the terminals identified in the service information. An infinite or open reading indicates a broken winding. A reading substantially below specification suggests a shorted winding. A value within specification means the winding is not obviously open or shorted, but the valve may still bind mechanically. Then verify the connector's specified power, ground, and control circuits. This separates an internally failed IAC from a good valve that is not being driven.

Cleaning vs. Replacing an IAC Valve

The test result—not the severity of the rough idle—should decide the repair.

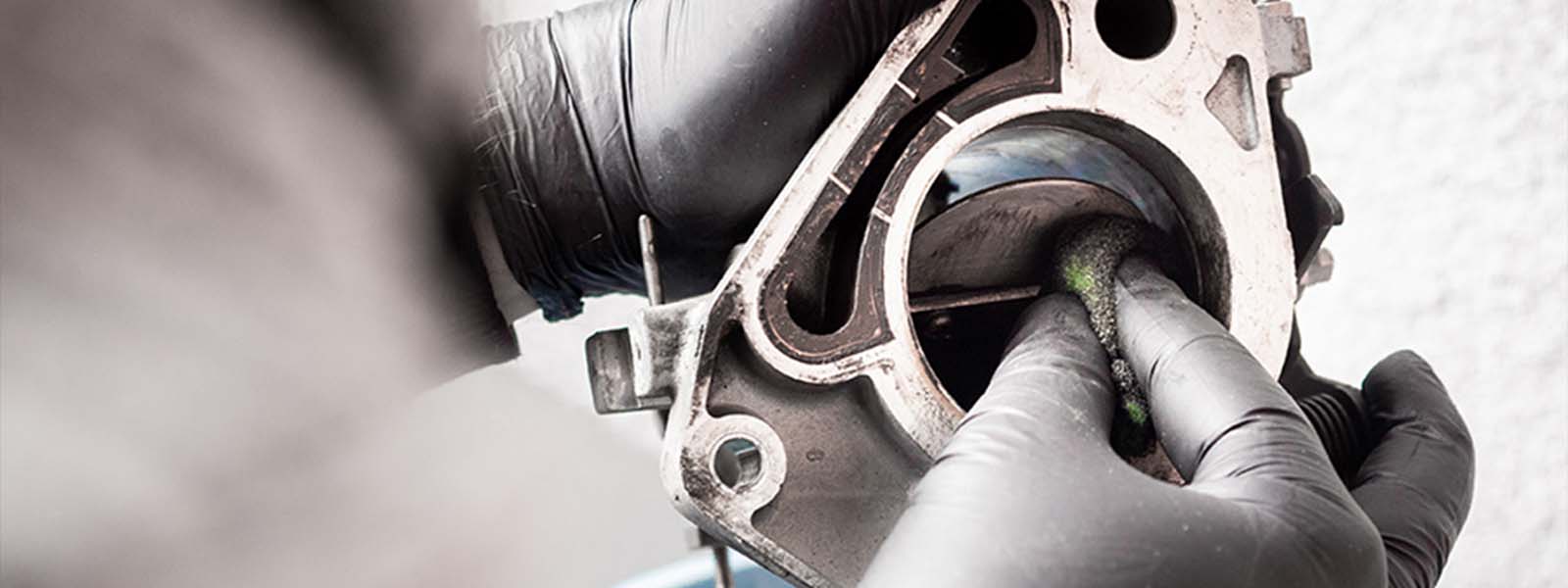

Clean a Dirty but Functional Valve

Cleaning is appropriate when carbon is restricting the pintle or passage, the valve has no physical damage, the winding is within specification, and the circuit can command it. Use a throttle-body cleaner approved for the application, keep solvent out of the electrical section, clean the bypass port, and replace the gasket if required. After reassembly, clear relevant codes and repeat the warm-idle and A/C load checks. If the idle now tracks the command and remains stable, the repair is verified.

Replace an Electrically or Mechanically Failed Valve

Replace the IAC when its winding is open, shorted, or outside specification; the pintle or housing is damaged; or a good circuit commands the valve but it cannot move correctly. Cleaning a failed motor or broken mechanism wastes time. If the valve passes but the harness fails, repair the harness instead.

Verify the Repair and Complete Idle Relearn

Some vehicles require an idle relearn after the IAC or throttle body is cleaned, disconnected, or replaced. Use the model-specific procedure; there is no single sequence for every vehicle. The final check is practical: the engine should start without throttle, settle at warm idle, recover when the A/C engages, and return to idle without stalling after a short drive.

Idle Air Control Valve Replacement Cost

For a vehicle with a separate IAC valve, a typical U.S. shop replacement is approximately $150–$450 total. Parts commonly run $50–$250, while labor is often $75–$250, depending on access and local rates. Diagnosis, cleaning, wiring repairs, and integrated throttle-body designs change the final bill.

These are planning ranges, not quotes. Vehicle design, part availability, regional labor rates, diagnostic time, connector repairs, and relearn requirements can move the price. Ask whether a shop estimate includes diagnosis, a new seal, installation, code clearing, and idle relearn. Paying for a correct diagnosis is usually cheaper than replacing a good valve and returning with the same problem.

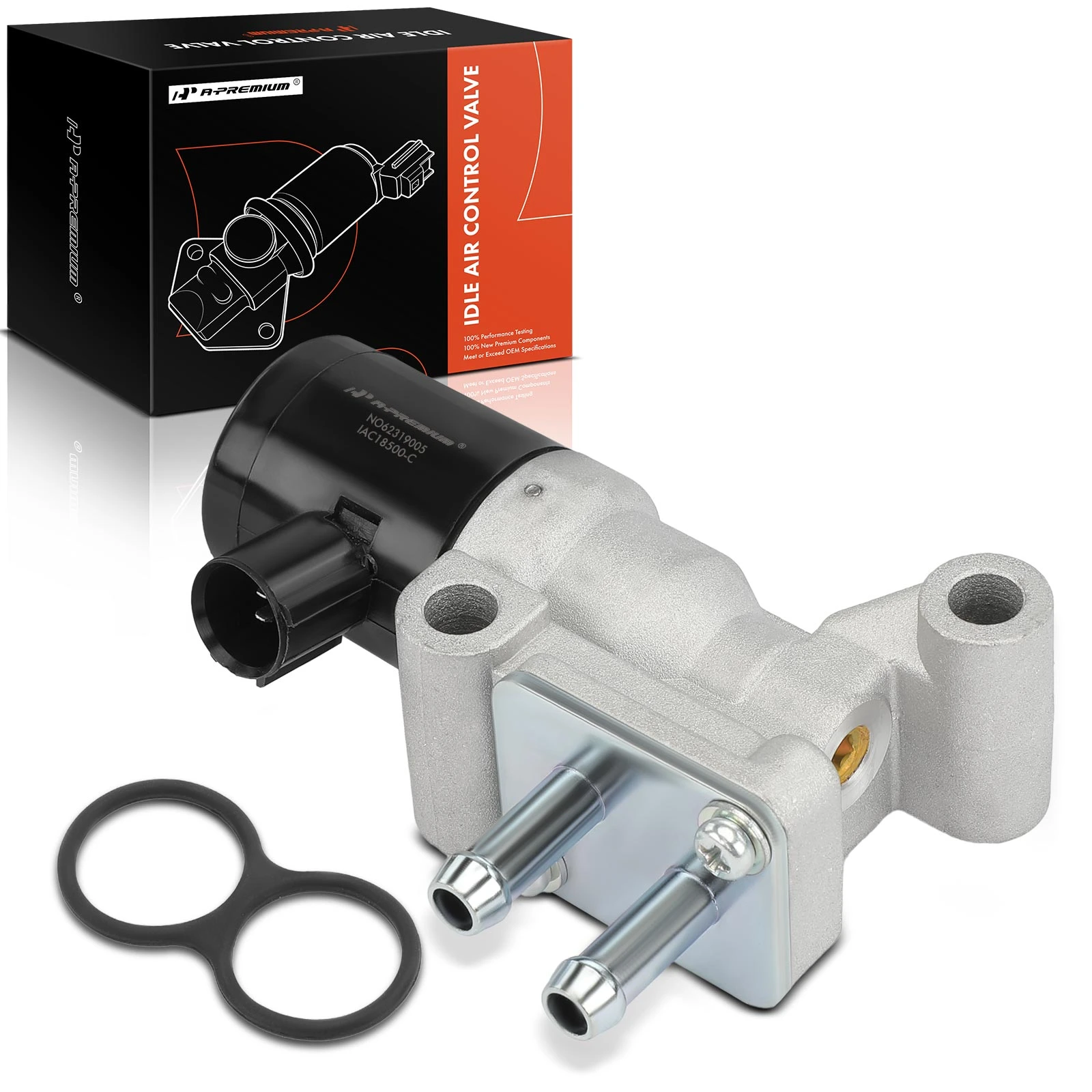

Choosing the Right IAC Valve

Once testing confirms internal valve failure, buyers face a practical second problem: finding a replacement that actually fits. Customer concerns commonly center on valves that look similar in photos but arrive with the wrong connector, terminal count, mounting pattern, pintle design, or calibration. Verify the year, make, model, engine, connector shape, terminal count, mounting holes, seal requirements, and OE or interchange number. Appearance alone is not a fitment check.

A-Premium addresses these concerns with vehicle-based fitment filtering and a broad selection for many IAC-equipped applications. Its direct-to-consumer model reduces unnecessary middleman markup, while product quality controls support reliable idle regulation after a confirmed repair. Available inventory and dependable fulfillment help reduce the time a vehicle remains out of service. Customer support can also assist with product information, fitment, and ordering, and eligible products are backed by the warranty and return terms displayed on their product pages.
