Warped Brake Rotors: What They Look Like and How to Check

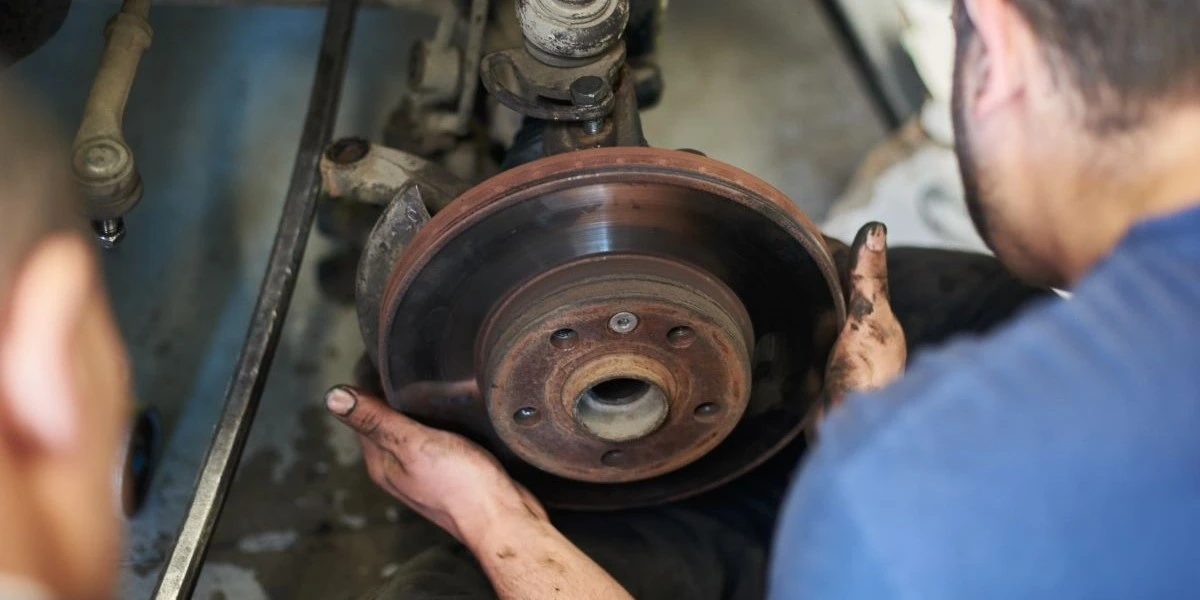

What does a warped brake rotor look like?

Often, there is no obvious visible bend. The dimensional differences that cause brake pulsation can be too small to see. A rotor may have a normal-looking friction surface while still measuring outside the vehicle’s limits.

Brake judder happens when braking force varies as the disc rotates. Uneven thickness, uneven friction-material transfer, and heat-related deformation can contribute. Lateral runout is side-to-side movement of the installed disc; disc thickness variation (DTV) is the difference between its thickest and thinnest measured points. Excessive runout can cause uneven wear and develop into DTV over time.

What causes a warped brake rotor or brake judder?

Uneven heat and pad transfer: Repeated hard braking, long descents, or a dragging brake can create uneven temperatures and deposits. Severe heat can also damage or distort a disc. A pad imprint or blue patch is a clue to investigate, not proof of measurable warping.

Poor mounting: Rust or debris trapped between the rotor and hub can tilt the installed disc. Incorrect wheel-fastener torque or tightening sequence can also contribute to distortion or runout.

Hub, bearing, or caliper faults: Bearing play or hub runout can move the disc out of alignment. Binding caliper slides or pistons can cause uneven pad wear and excessive heat. Replacing the rotor without correcting these problems can lead to repeat vibration.

How to tell if a brake rotor is warped

Inspect first, measure thickness second, and check installed runout third. This finds unsafe damage before further work, identifies discs that are too thin to reuse, and avoids blaming a rotor for a hub or mounting problem. You need a brake-disc micrometer, a dial indicator with a rigid holder, a torque wrench, and the vehicle’s measurement procedure and limits.

1. Note when and where the vibration occurs

If braking remains normal apart from mild vibration, note whether it appears during ordinary braking and disappears when you release the pedal. Shaking that continues while coasting also needs tire, wheel, bearing, or suspension checks. Do not perform repeated hard stops to provoke it.

Steering-wheel shake makes the front brakes a sensible starting point; seat or floor vibration can suggest the rear. Pedal pulsation can come from either axle. ABS operation during a hard stop or on a slippery surface is a separate event from repeatable judder during normal braking.

2. Inspect both sides of the suspected axle

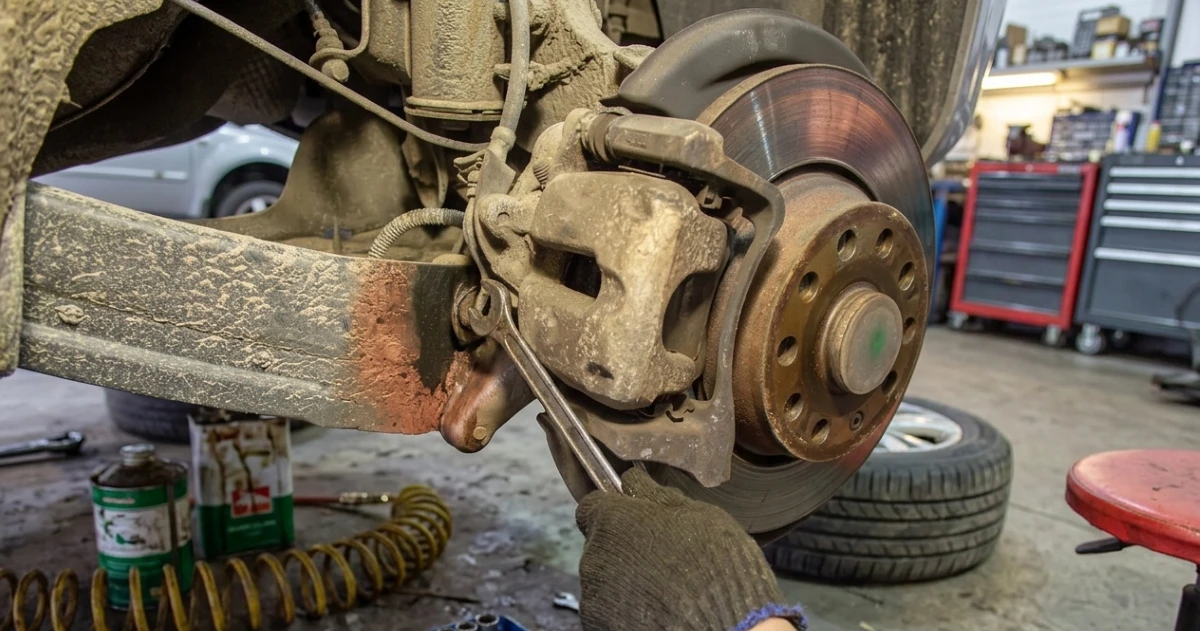

Let the brakes cool, secure and support the vehicle, then remove the wheels. Follow the service procedure to allow hand rotation; release a rear parking brake only after the vehicle is safely secured. Check both rotor faces with a light and mirror, plus inner and outer pad wear.

Look for cracks, deep scoring, heavy corrosion, uneven pad contact, and signs of a binding caliper. If removal is needed for access, support the caliper without straining its hose. Check bearing play as directed before precision measurements; looseness makes runout readings unreliable.

3. Measure thickness and thickness variation

Clean the measurement points without sanding away material. Use a brake-disc micrometer capable of resolving the specified tolerance. Measure at eight evenly spaced positions around the swept surface, at the same radius specified by the vehicle procedure. Avoid the outer wear lip, slots, holes, and loose rust.

Record every reading. The smallest value checks minimum thickness; the largest minus the smallest is measured DTV. Compare both with the vehicle’s limits. Ordinary calipers may not have the resolution needed. A visible wear lip alone does not tell you how much usable thickness remains.

4. Measure lateral runout with the rotor secured

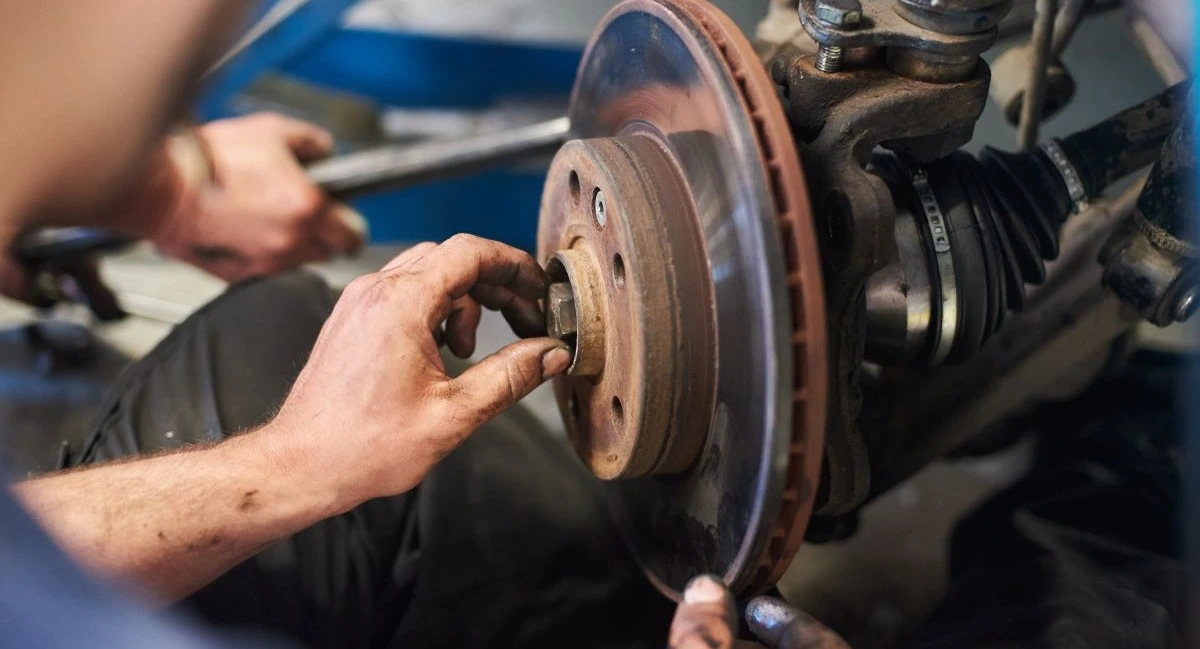

For a slip-on rotor, clamp it evenly to the hub using the prescribed nuts/bolts, suitable spacers, and test torque. A loose disc or its small retaining screw alone may not reproduce the installed condition. Use the vehicle’s setup so fasteners seat correctly without bottoming out.

Attach the indicator holder to a rigid, stationary component. Position the tip squarely against a smooth rotor face at the specified radius, preload it, and zero the gauge. Rotate the disc slowly by hand through a full turn, record the highest and lowest readings, and repeat. The difference is total indicated runout.

If it exceeds the limit, mark the rotor’s position relative to the hub before removal. Clean the mating faces without gouging them, refit, and remeasure. If permitted, indexing the disc to another stud position may reduce assembly runout. Persistent excess requires a hub-face and bearing check before condemning the rotor. If your tools cannot resolve the specified limits, request these measurements rather than a visual-only diagnosis.

How to tell which brake rotor is warped

Keep a separate record for left front, right front, left rear, and right rear. For each tested disc, record minimum thickness, DTV, installed runout, and visible damage. Start with the axle suggested by the symptoms, measure both sides, and continue to the other axle if the results do not explain the vibration.

A disc with excessive DTV or structural damage needs attention. Excessive assembly runout still requires separating the rotor from hub or bearing causes. More than one wheel can be affected. Steering feel, which direction the car pulls, or which wheel seems hottest cannot reliably identify a single warped rotor.

If the dimensions are within specification but judder remains, investigate friction deposits, hot-only brake behavior, caliper operation, and suspension play. Do not buy a left or right rotor solely from where you feel the shake.

Should you resurface or replace the brake rotors?

Resurfacing is an option only when the manufacturer permits it, the disc has no disqualifying damage, and the finished thickness will meet the applicable machining and service limits. Check assembled runout afterward. Sanding the visible patches is not a substitute for correcting DTV or runout.

Choose replacement brake rotors for cracks, insufficient thickness, severe damage, or a condition that cannot be corrected within specifications. Normally replace rotors as an axle pair. Inspect the pads; replace worn, contaminated, glazed, or unevenly worn pads. A compatible brake rotor and pad kit simplifies the job when both need service.

Before fitting new parts, correct hub/bearing and caliper faults, clean the mounting faces, verify installed runout, and torque wheel fasteners evenly to specification. Then follow the actual pad/rotor supplier’s bedding instructions. Our brake bedding guide explains the purpose of a uniform transfer layer; use the procedure specified for your parts rather than a universal hard-stop routine.

Restore smooth braking with A-Premium

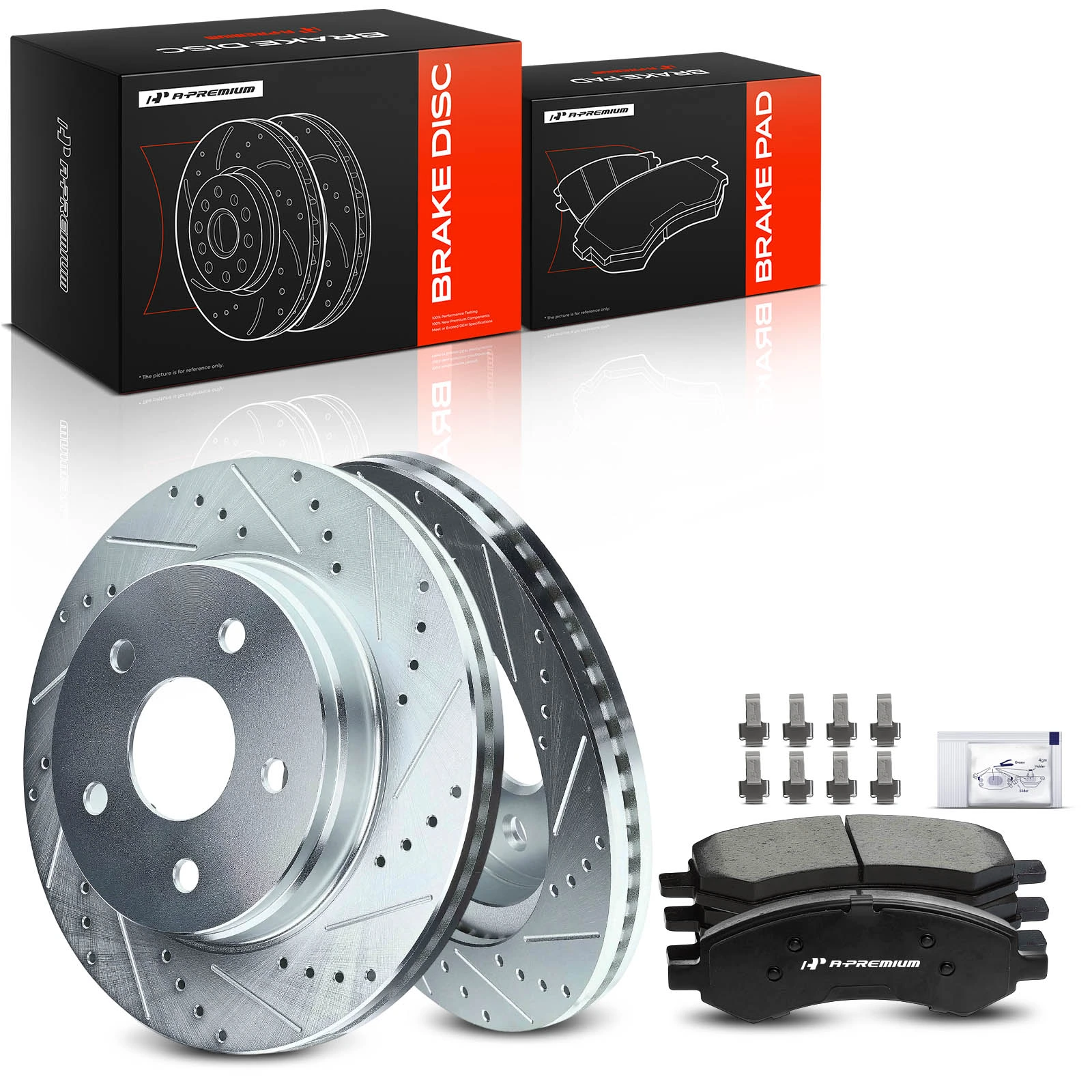

Choose the right replacement once the measurements identify the repair. A-Premium offers vehicle-specific brake rotors and rotor and pad kits, with OE-style replacement options and direct-to-consumer pricing to help control parts costs.

Match year, make, model, axle position, and brake-package details. Verify disc diameter, thickness, hat height, vented or solid construction, and any trim-specific restrictions. Check what the kit includes; the same model can use different brake sizes.

Contact 24/7 customer support for fitment and order questions. A 90-day return window supports your purchase under the return policy, and warranty coverage is stated on the selected product page. Accurate fitment plus a clean, correctly measured installation helps prevent doing the job twice.
