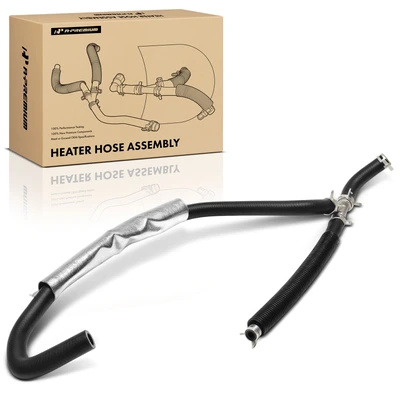

Dodge Heater Hose Assembly

Heater Hose Assemblies Carry Engine Coolant

Hot engine coolant reaches the cabin heater through the heater hose assembly. Heat passes through the heater core into the air supplied to the cabin, and coolant returns to the engine cooling circuit. These hoses carry coolant, not the refrigerant used by the air-conditioning circuit.

An inlet hose supplies the heater circuit, while the return hose carries coolant away. Their routing and connections are designed around the engine compartment. Calling both a heater core hose does not make the two positions interchangeable.

Molded Hoses, Branches, and Rigid Sections

A molded heater hose follows bends without depending on a straight hose being forced into shape. Some assemblies combine flexible sections with rigid tubes, branches, or connectors. Those features route coolant while providing clearance from nearby moving or hot components.

Compare length and inside diameter alongside the branch layout and molded bends. The intended shape lets the assembly reach both connections while maintaining clearance from nearby components.

Quick Connectors and Assembly Contents

Quick-connect ends use a specific retention and sealing arrangement. Hose-clamp connections work differently. The heater hose assembly needs the correct connection for each end; a fitting that pushes over a tube is not necessarily securely retained or properly sealed.

Some packages include clamps, clips, or protective sleeves, while others do not. Sensors and valves attached to a coolant assembly should likewise not be assumed to be supplied. List the separate service parts needed before removal so brittle connectors or damaged retainers are not reused merely because they were overlooked.

Supporting the installed hose

Hose supports and protective covers help preserve the intended clearance. Once fitted, the hose should not be twisted or left touching a moving component. Inspect the surrounding connections for stress as the assembly is positioned; a sound replacement hose can still leak if attached to a damaged tube or fitting.
