Radiator Support Assembly

Radiator support assembly can mean three different repair parts

Radiator support assembly can describe a large front carrier, an upper or lower tie bar, or a smaller left or right support. Product titles may share the same category name even though the parts cover different portions of the front structure. Identify the damaged section first, then compare mounting points for the radiator, condenser, lamps, hood latch, and surrounding panels.

Match the repair piece to the damaged section

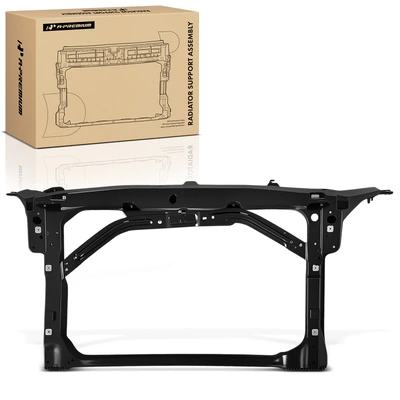

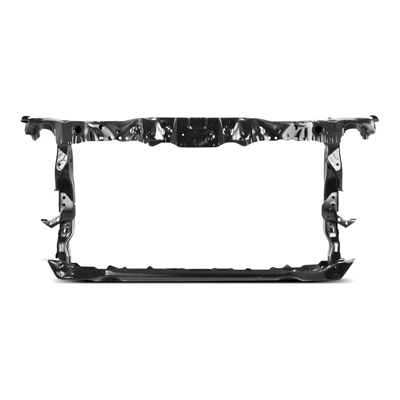

Complete front carrier

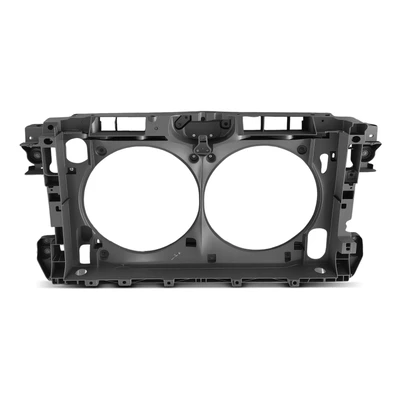

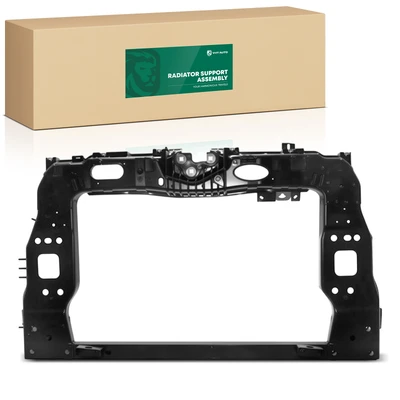

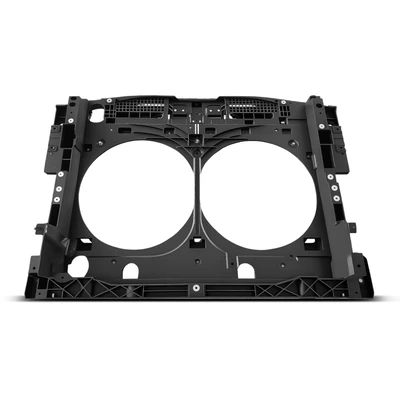

A complete-style carrier spans much of the front opening, but the package can still exclude side rails, fender structure, or detachable hardware. Compare the itemized boundaries with the damaged vehicle before planning one large replacement.

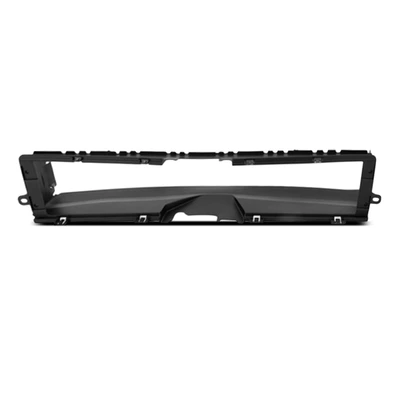

Tie bar

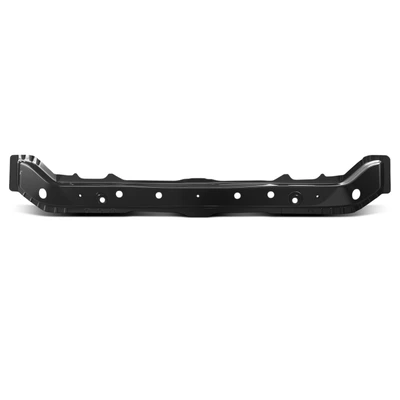

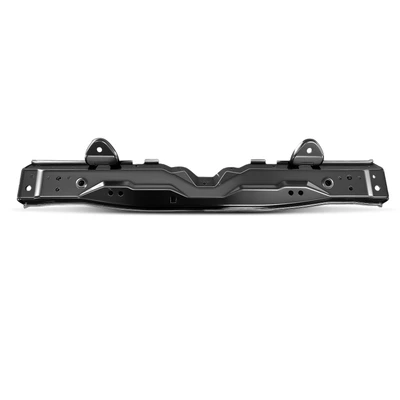

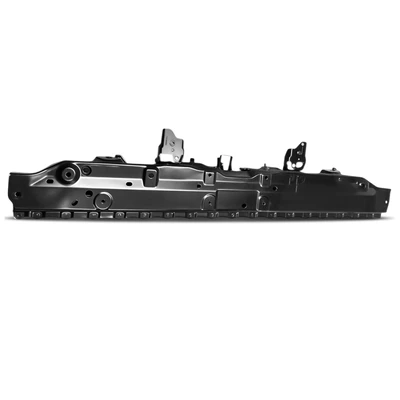

Upper and lower tie bars repair a narrower horizontal section. An upper bar cannot substitute for the lower bar because radiator, latch, bumper, and splash-panel connections may differ.

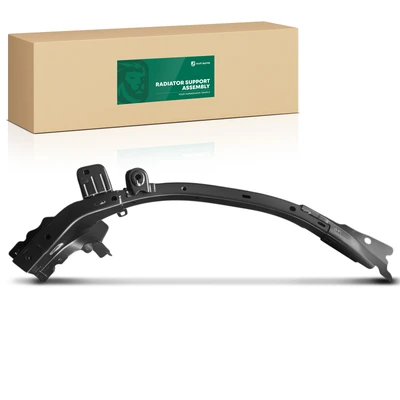

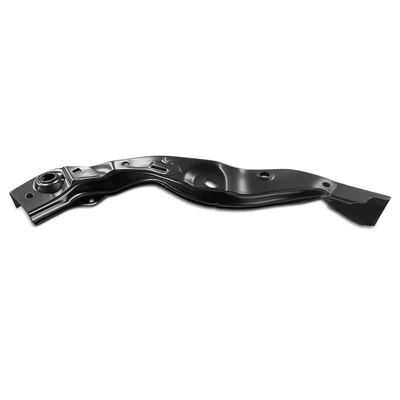

Side support

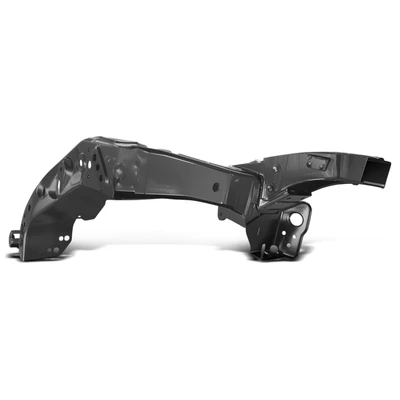

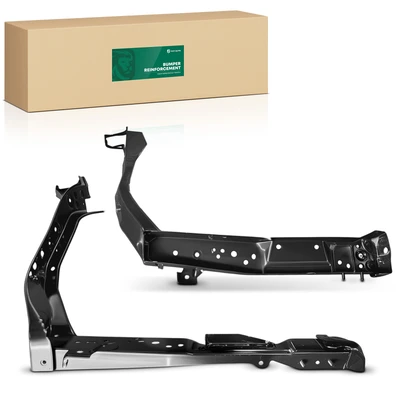

Left and right supports are side-specific. Match driver or passenger position as well as upper, lower, or full-height wording.

Material and color are not enough to identify the part. Steel and reinforced plastic carriers can serve different vehicles, and black finishes appear across unrelated shapes. Use material as a confirmation after the support scope, mounting geometry, and vehicle conditions already agree.

Build origin, production date, and radar equipment can alter the support

Body mounting points can change within the same model range. One Mazda support is limited to Japan-built vehicles and excludes specified radar-cruise and Smart City Brake configurations. Other products require radar cruise, begin from a stated production month, or apply only after an exact build date.

Use the door-jamb label, vehicle equipment, and product fitment note together. Model year alone may not separate two front structures. Preserve every production-date or equipment condition when comparing interchange references.

Look for sensor brackets and openings near the grille before removing the original support. Radar or collision-avoidance equipment may need a particular mounting area even when the support outline looks close. Photograph harness clips and module positions so they return to the same routes without stretching or rubbing.

Front-end damage can extend beyond the visible support

Before ordering, inspect the hood-latch area, headlamp mounts, bumper connections, condenser, cooling fan, and replacement radiator. A straight-looking tie bar does not rule out movement in the side supports or rails. Measure the structure when collision damage is present.

Replacement can require removal of cooling, air-conditioning, and exterior components. Follow the vehicle procedure for refrigerant, coolant, electrical connectors, and alignment. A support that is tightened before the surrounding panels are positioned can leave poor hood gaps or stressed mounts. Structural or refrigerant work may require professional equipment.

Dry-fit detachable brackets, lamps, and the hood latch before paint or final assembly when the repair process allows it. Every threaded insert should accept its fastener without prying the surrounding panel. A mounting point that misses by a visible amount can signal the wrong support or unrepaired structural movement.
