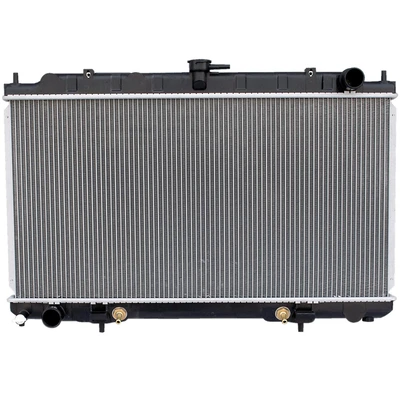

Nissan Radiator

Car Radiator Design and Engine Cooling

Engine coolant carries heat away from the engine to the car radiator, where tubes and fins transfer it to passing air. Coolant circulation and airflow both matter. The water pump circulates coolant, the thermostat regulates its route, and the fans support airflow when needed.

Radiator Cooler Connections

For radiator replacement, cooling-system connections matter as much as the core itself. An automotive radiator may also contain a transmission-fluid or engine-oil heat exchanger. These separate fluid circuits require their own connections. Include the cooler arrangement when comparing replacement radiators.

What to Compare Beyond Radiator Dimensions

Core height, width, and thickness describe the heat-exchanger section, not necessarily the complete assembly. Tanks, mounting brackets, hose necks, and cooler fittings add to its overall size. Fan-shroud attachments also need to line up without pulling the radiator out of position.

Two design details help explain radiator descriptions:

• Crossflow radiators have side tanks; downflow radiators have top and bottom tanks. The surrounding cooling system and available space determine the appropriate layout.
• Core and tank materials are separate specifications. An aluminum core can be combined with different tank materials, so read both descriptions when comparing construction.

Radiator Assemblies and Related Cooling Parts

An assembly may be the radiator alone or a package with additional cooling components. A-Premium offers both individual radiators and selected radiator-and-fan combinations; the included-parts description establishes what comes in each package. Check the package contents for cooler connectors, caps, and mounting cushions.

The radiator, condenser, and fans sit close together but perform different tasks. A blocked air path can limit heat rejection even when the radiator does not leak. Before fitting a replacement, inspect the surrounding supports and air passages so bent brackets or trapped debris do not damage the new unit.
