Windshield Washer Nozzle

Washer nozzles differ by position, heating, and package size

Windshield washer nozzles differ by front or rear position, driver or passenger placement, heated connection, mounting shape, and package quantity. Products range from one nozzle to matched pairs and larger 20- or 22-piece kits. Select the vehicle, then compare the old jet's hose connection, electrical connector if heated, retaining tabs, and spray position. A similar hood-mounted nozzle may not lock into the same opening.

Front, rear, heated, and unheated jets are separate choices

Front versus rear

Front nozzles may mount on the hood or cowl and can be side-specific or sold as a pair. Rear jets use another body shape and hose route at the hatch or rear glass. Position must match before spray pattern is considered.

Heated versus unheated

A heated nozzle has an electrical interface in addition to the fluid connection. Do not install an unheated jet where the selected vehicle requires the heated design, and do not assume a heated unit will connect to a vehicle without the matching wiring.

Driver-or-passenger wording also differs from a dedicated left or right nozzle. Some single front jets can serve either side, while paired products supply both positions. Read the position field with quantity so one universal-looking spray jet is not mistaken for a complete pair.

Check fluid delivery before blaming the spray jet

1. Operate the washer briefly and inspect the reservoir, pump sound, hoses, joints, and visible leaks. No fluid at the nozzle can begin upstream.
2. If fluid reaches the jet, check for a blocked or damaged nozzle, then compare its position, connector, and mounting tabs before replacement.

Use washer fluid suited to the operating temperature and avoid damaging the outlet with oversized cleaning tools. A weak pattern can also follow a kinked hose, frozen fluid, low pump output, or poor nozzle aim.

After installation, aim only by the method allowed for that nozzle. Some jets have an adjustable outlet; others use a fixed fan pattern and can be damaged by prying. Test with the hood closed when the nozzle mounts on the hood so the spray is observed in its normal position.

Small fitment notes can override model and year

Some Toyota applications separate U.S.-built vehicles and exclude a stated cold-weather specification. A heated BMW X5 pair is limited to the M model for specified years and excludes other trims. Another Jeep nozzle uses a production-date boundary. These conditions apply only to the named products, but they show why model year alone can be incomplete.

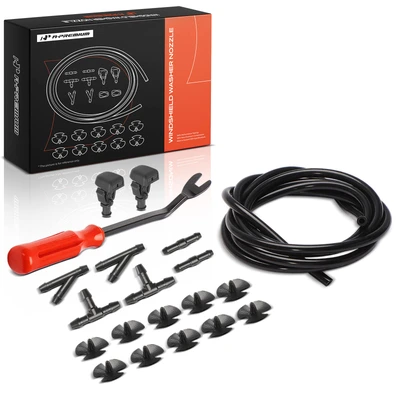

Read package contents with equal care. Some nozzles include gaskets, while others do not state them. A 20- or 22-piece kit should be checked against its itemized description and images; the quantity does not tell you which seals or connectors are present.

Keep the old gasket, connector shape, and hose diameter available until the replacement has been compared. Large kit counts can serve a broad group of listed vehicles, but that does not make every piece correct for every position on one vehicle. Install only the parts assigned to the selected application.
