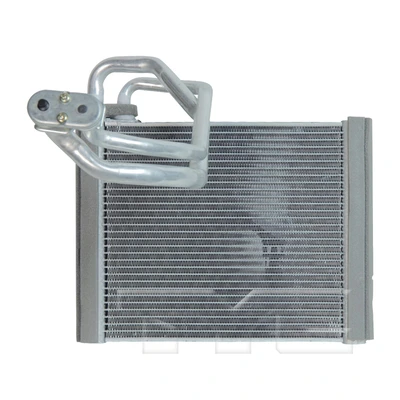

Jeep AC Evaporator

Choosing an AC Evaporator for Front or Rear HVAC Position

An AC evaporator must be chosen for the correct HVAC case. Front and rear units can use different housings, mounting points, and refrigerant-line locations, so they should not be treated as interchangeable. Start with the vehicle's exact HVAC position, then use any body style, engine, automatic temperature control, or production-date condition stated for the part. Those details narrow the application before core dimensions or construction type are considered.

AC Evaporator Core Size and Connection Layout

Core height, width, thickness, and fitting position determine whether an evaporator can sit correctly inside the HVAC case. Use the dimensions for the specific part rather than carrying measurements from one application to another. The line connections also need to approach the core from the correct direction. A unit that is close in size can still be wrong if the inlet, outlet, or mounting layout does not align with the vehicle.

Plate-Fin vs Parallel-Flow Auto AC Evaporators

Plate-fin and parallel-flow evaporators use different internal and external layouts, but the construction name is not a preference or upgrade choice by itself. Select the design specified for the vehicle and HVAC housing. Position, fitting geometry, and case compatibility remain more important than choosing one flow style over another. When two cores use similar overall dimensions, the stated application and connection arrangement should decide which one belongs in the vehicle.

Pressing Plate, ATC, and Production-Date Conditions

Some AC evaporator applications call for a pressing plate, while others do not include one. Automatic temperature control, a body configuration, or a production-date split may also separate parts for the same model. Treat each condition as part-specific: use it only when it appears in the fitment information for the unit being considered. Also note whether the pressing plate is included, since that piece is not supplied with every application.

AC Evaporator vs Condenser, Heater Core, and Compressor

The evaporator sits inside the HVAC case and absorbs heat from cabin air. It is not the condenser at the front of the vehicle, the heater core that carries engine coolant, or the compressor that circulates refrigerant. Similar symptoms can come from several A/C components, so poor cooling alone does not identify the evaporator as the failed part. Separate the component being serviced before choosing a replacement core.
