Blend Door Actuators Control Air Temperature

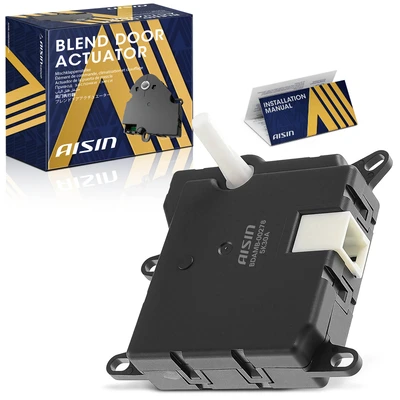

A blend door actuator moves an HVAC air door that regulates how air passes through the heating section of the system. Changing the door position changes the mixture of warmer and cooler air reaching the cabin. The actuator moves the door; it does not create heat or supply refrigerant.

Not every HVAC air door actuator has that temperature role. A mode actuator selects outlets such as the floor or windshield, while an inlet actuator controls fresh or recirculated air. Product descriptions can use broad air-door terminology, so identify the door function rather than treating every small HVAC motor as a temperature actuator.

Door Shafts and Actuator Mounting

The actuator's output connects to a particular door shaft or linkage. Shaft shape, mounting points, and electrical connection must work together. Operating range and position-feedback arrangements are additional differences to account for when comparing similar outer cases.

The door itself also needs to move as intended. A broken shaft or binding mechanism can prevent correct operation even with a functioning actuator. During diagnosis, separate an electrical motor or gear problem from a mechanical problem in the HVAC housing.

Multiple Zones and Separate Door Positions

Dual-zone or rear climate equipment can add actuators with different assignments. Driver-side temperature, passenger-side temperature, and rear air control are not automatically served by the same part. The location description should refer to the relevant door position, not simply to a left or right side without context.

Complete Actuators and Repair Gears

An individual actuator, a repair gear, and a multi-actuator package also represent different repair scopes. A gear-only repair cannot replace damaged electronics or a broken housing. Choose the scope that matches the diagnosed fault rather than replacing unrelated actuators because they share the same system.
