P0175 Code: System Too Rich (Bank 2) What to Check and Fix
Diagnose P0175 (System Too Rich, Bank 2) by comparing fuel trims. Isolate Bank 2 injector or sensor faults versus shared MAF, pressure, or purge issues. Follow our step-by-step guide to fix it safely and avoid unnecessary part replacements.
Quick Answer
P0175 means the engine computer has detected an excessive rich-fuel correction on Bank 2, the cylinder bank without cylinder 1. Start by comparing both banks’ fuel trims: a Bank 2-only problem points toward that bank’s injectors or upstream sensor circuit; both banks being rich makes shared airflow, fuel-pressure, temperature, or purge faults more likely. Save the scan data before clearing anything. Diagnose promptly, and stop for a flashing engine light, severe shaking, or a fuel leak.
Safety note: Run the engine outdoors, secure the vehicle in Park or the appropriate gear, and keep tools clear of belts, fans, and hot exhaust. Stop the engine for visible fuel leaks, severe misfire, or a strong raw-fuel odor. Never loosen direct-injection high-pressure lines for a DIY check. Fuel-pressure equipment must match the fuel type and system, and testing must follow the vehicle’s pressure-relief procedure.
What does the P0175 code mean, and where is Bank 2?
P0175 is “System Too Rich (Bank 2).” During closed-loop operation, the computer uses exhaust-sensor feedback to adjust injector delivery. Short-term fuel trim (STFT) is the immediate correction; long-term fuel trim (LTFT) is learned compensation. Negative values mean it is subtracting fuel.
The code sets when rich correction meets the vehicle’s specified limit and duration. The computer may already be bringing the mixture back toward its target, so the exhaust does not have to remain visibly rich at the moment you scan it. A fuel-delivery problem or a misleading sensor input can create the excessive correction.
Bank 2 is the bank that does not contain cylinder 1. It is not universally the driver or passenger side. Find the cylinder-numbering diagram for your exact engine before testing bank-specific parts. On a two-bank engine, B2S1 identifies the Bank 2 upstream exhaust sensor.
If Bank 1 also sets a rich code, the companion P0172 guide explains that code. Compare both banks even when only P0175 is stored; one bank may reach its threshold first.
How serious is P0175, and can you keep driving?
You may notice only a steady check-engine light, or poor fuel economy, rough idle, hard starting, reduced power, fuel odor, or black exhaust smoke. A steady light with otherwise normal operation calls for prompt diagnosis and limited driving rather than continuing routine use.
Stop for a flashing light, severe misfire, a fuel leak, or strong raw-fuel odor. Excess unburned fuel can overheat the catalytic converter, and prolonged overfueling can dilute engine oil. If the oil level is rising or it is strongly fuel-contaminated, resolve the fault and assess the oil before further operation.
What causes P0175 on Bank 2?
Use the two-bank comparison to prioritize these possibilities; it is a starting point, not proof of a failed component.
| Pattern | Possible cause | How it produces rich correction |
|---|---|---|
| Mostly Bank 2 | Leaking or over-delivering injector | Adds excess fuel on that bank. |
| Mostly Bank 2 | Biased upstream O2/A/F signal or circuit | Reports richness that may not match actual exhaust. |
| Often both banks | MAF overreporting or implausibly cold temperature input | Commands more fuel than needed. |
| Often both banks | Excess fuel pressure | Delivers more fuel for a given injector command. |
| Often both banks | Purge valve leaking with fuel-rich vapor | Adds uncommanded vapor through the intake. |
An air-filter or intake inspection is worthwhile, especially after recent work, but a dirty filter alone does not establish why a computer-controlled engine is running rich. Likewise, a high upstream-sensor reading can reflect real richness rather than a defective sensor.
How to diagnose and fix a P0175 code step by step
Preserve the evidence, compare the banks, check simple inputs, then test fuel delivery and sensor accuracy. This order keeps you from replacing a Bank 2 sensor for a whole-engine problem. Use an OBD-II scanner that displays live fuel trims and the vehicle’s service information.
1. Save codes and freeze-frame data
Record stored and pending codes before clearing them. Save RPM, engine temperature, load, and fuel trims from freeze frame. Note whether the fault appeared at idle, during driving, after refueling, or after a repair.
Identify any MAF, temperature, upstream-sensor circuit/heater, or cylinder-misfire codes. Follow their relevant circuit checks rather than treating P0175 as the only clue. Check for engine-specific service bulletins, particularly on flex-fuel vehicles.
2. Compare Bank 1 and Bank 2 fuel trims
Warm the engine only if it runs safely. Confirm the scanner shows closed-loop operation. At steady idle, record STFT B1, LTFT B1, STFT B2, and LTFT B2. Repeat briefly at a steady speed around 2,000–2,500 RPM if the service procedure permits; this stationary check is not a substitute for reproducing a road-load fault.
Compare each bank’s short- and long-term corrections together, not one changing number. For example, LTFT of −20% with STFT near zero still shows substantial learned fuel removal. That example is not a universal code threshold.
Bank 2 much more negative: Prioritize its injectors, upstream-sensor wiring, and sensor accuracy. Both similarly negative: Start with shared air-measurement, temperature, fuel-pressure, and purge checks. If the trims now look normal, use freeze-frame conditions to investigate the intermittent fault; do not assume it has repaired itself.
3. Check easy inputs before opening the fuel system
With the engine off, check the air-filter housing, intake duct, and disturbed electrical connectors. Look for an incorrect or contaminated airflow sensor, loose connections, or modifications. If a mass air flow sensor overreports incoming air, commanded fuel can be excessive. Compare its data with the engine’s specification; there is no universal idle grams-per-second value.
Clean the MAF only if that design permits it, using the specified sensor-safe product without touching the element. Let it dry and refit it correctly. Replace it only when testing supports the fault.
On a fully cold engine before startup, compare coolant and intake-air temperature readings with the surrounding temperature. A clearly implausible cold reading needs sensor/circuit checks. Do not replace a thermostat solely because P0175 is present.
4. Test the branch suggested by the data
After-refueling symptoms or shared richness: Check whether the EVAP purge valve seals when commanded closed. A compatible bidirectional scanner can command purge off, but a stuck-open valve can still leak. Follow the vehicle’s no-flow or vacuum test to confirm it; unplugging the connector alone does not establish sealing.

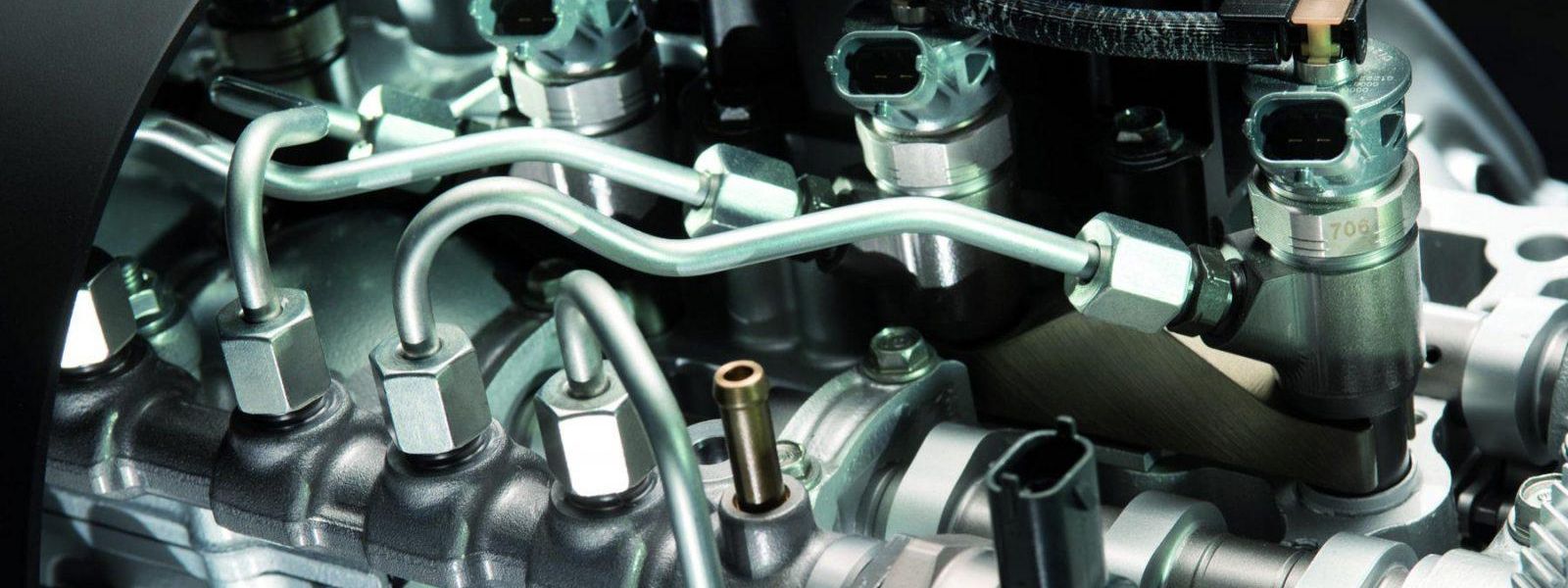

Fuel-pressure concern: Compare actual pressure with the specified value under the stated conditions. On a port-injected engine with an approved test port, use the correct gauge and pressure-relief procedure. On direct injection, start with specified scan data and the manufacturer’s test process; do not attach a low-pressure kit to the high-pressure circuit. Excess pressure calls for regulator, return-path, or control diagnosis—not an automatic pump replacement.
Bank 2-only richness, especially with hard restarting: Test its fuel injectors for leakage and balance. Clicking proves movement, not correct flow or sealing. Pressure decay after shutdown is a clue, but does not identify a particular injector. Injector leakage/balance testing is the appropriate next service if you lack the required equipment.
5. Verify the Bank 2 upstream sensor, then confirm the repair

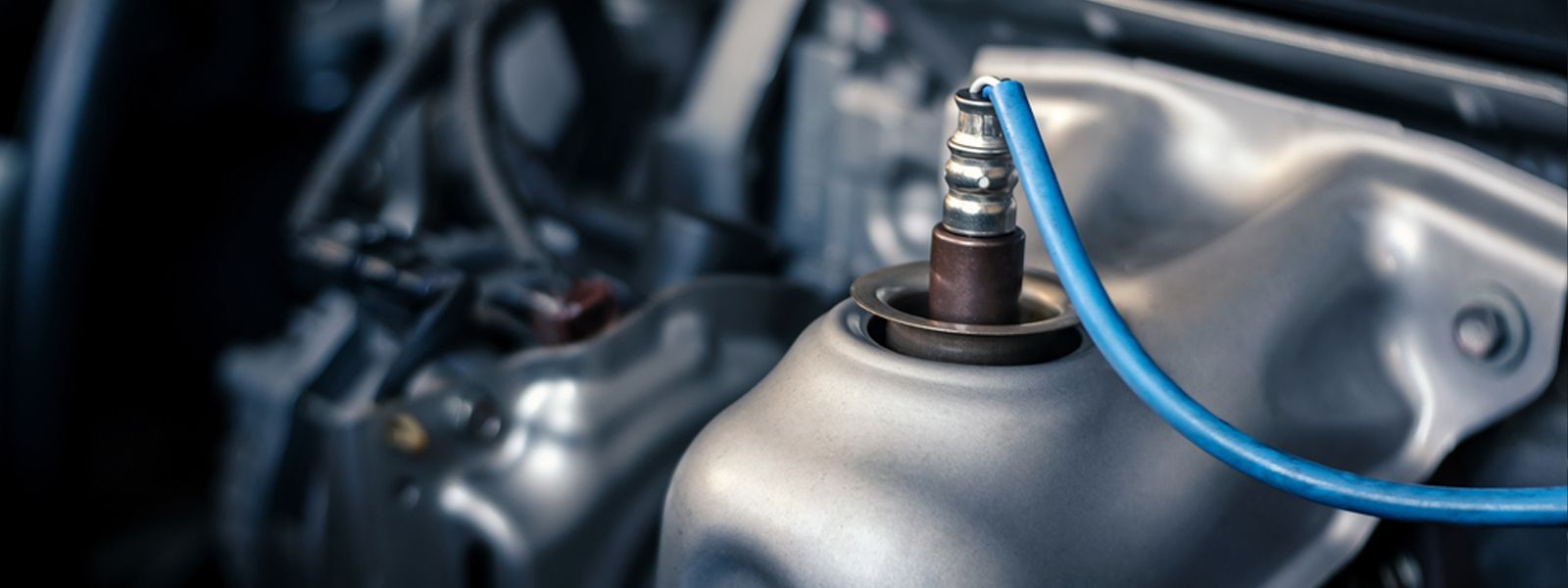

Inspect the B2S1 connector and harness for corrosion, damaged insulation, or contact with the exhaust. Test the sensor’s response using the vehicle’s prescribed procedure after checking fuel delivery. A narrowband O2 sensor and a wideband A/F sensor use different signals; do not apply a generic voltage rule to both.
If testing confirms a biased sensor, select the correct upstream oxygen or air/fuel sensor. Our upstream/downstream compatibility guide explains the fitment differences. A rich reading alone is not enough to condemn it.
After repair, clear codes and reset adaptations only as directed. Repeat the same warm operating checks and confirm that fuel correction improves and pending codes do not return. Clearing codes also resets emissions readiness; permanent codes, where supported, require the monitor to verify the repair.
Choose the confirmed P0175 repair at A-Premium
Buy the part your tests identify, with the fitment details needed to finish the job. A-Premium offers MAF sensors, fuel injectors, and O2/A/F sensor options, alongside applicable purge-valve listings. The right solution can be one component rather than a set of guessed replacements.
Match the year, model, engine, OE reference, and connector. For exhaust sensors, confirm Bank 2 Sensor 1 and sensor technology. For injectors, check port versus direct injection and any coding requirements. For MAFs, check probe-only versus complete housing. Read the listing’s brand and application details.
OE-style replacement options, published specifications, and direct-to-consumer pricing help you compare parts costs. The full repair bill also depends on diagnostic time, access, seals, and programming—not the P0175 code itself. Contact 24/7 customer support for fitment or order questions. Purchases have a 90-day return window under the return policy; warranty coverage is shown on each product page.
FAQs
Does P0175 mean you need a new O2 sensor?
No. Check bank fuel trims, wiring, fuel delivery, and sensor response. The sensor may be correctly reporting excess fuel.
Can P0175 appear without P0172?
Yes. Bank 2 may have a local fault or reach its limit first. Read both banks’ trims even if only one rich code is stored.
Will fuel-injector cleaner fix P0175?
It will not repair an electrical fault, excessive pressure, or a mechanically leaking injector. Use leakage and flow tests to decide the repair rather than relying on an additive.
