P0117 Code: Engine Coolant Temperature Sensor Circuit Low
P0117 indicates a low-voltage signal in the engine coolant temperature sensor circuit. Learn what it means, where the sensor may be located, how to distinguish a faulty sensor from wiring damage, and how to fix the problem safely.
Quick Answer
P0117 means the engine computer has detected an abnormally low-voltage signal from the engine coolant temperature (ECT) sensor circuit. Because most ECT sensors have lower resistance and lower signal voltage as coolant temperature rises, the computer may interpret this electrical fault as an implausibly hot engine. Common causes include an internally shorted ECT sensor, a signal wire shorted to ground, or a damaged or corroded connector. Do not replace the sensor from the code alone: compare cold-engine ECT and intake-air readings, inspect the circuit, and use live data to separate a failed sensor from a wiring problem.
Safety note: Never remove a radiator or coolant reservoir cap while the engine is hot. Pressurized coolant can cause severe burns. If the temperature warning is red, the gauge is in the hot zone, steam is present, or coolant is leaking heavily, stop the engine when safe and arrange a tow rather than continuing to drive.
What Does the P0117 Code Mean?
P0117 is a generic OBD-II powertrain code commonly described as “Engine Coolant Temperature Sensor 1 Circuit Low Input” or “Engine Coolant Temperature Circuit Low.” The wording identifies an electrical signal problem; it does not prove that the engine is overheating, and it does not prove that the ECT sensor itself has failed.
The ECT sensor is usually a negative-temperature-coefficient thermistor. Its resistance is higher when the coolant is cold and lower when the coolant is hot. The engine control module supplies and monitors the circuit, then uses the reported temperature to manage cold-start fueling, ignition strategy, cooling-fan operation, and other functions. If circuit voltage drops below the expected range, the module can calculate an unrealistically high coolant temperature and store P0117.
The letter after the first character is a zero, not the letter O. Searches such as PO117 code usually refer to the same P0117 fault. For help reading other diagnostic codes, see A-Premium’s OBD2 codes guide.
Is It Safe to Drive with a P0117 Code?
Treat P0117 as a prompt to check the engine’s actual condition before deciding to drive. Some vehicles substitute a fail-safe temperature value and run the electric cooling fans continuously. The engine may still run, but cold starting, idle quality, fuel mixture, and fuel economy can be affected. Manufacturer responses vary.
| What you observe | What to do |
|---|---|
| Red temperature warning, hot-zone gauge, steam, severe coolant loss, knocking, or loss of power | Stop driving. Shut the engine off when safe, let it cool, and arrange professional diagnosis or towing. |
| Steady Check Engine light, engine runs normally, no leak or physical overheating signs | A short trip to a safe diagnostic location may be possible, but check coolant only when cold and monitor for real overheating. |
| Hard cold start, rough running, black smoke, or stalling | Avoid unnecessary driving. Incorrect temperature data may be disrupting the engine’s cold-start strategy. |
Where Is the P0117 ECT Sensor Located?

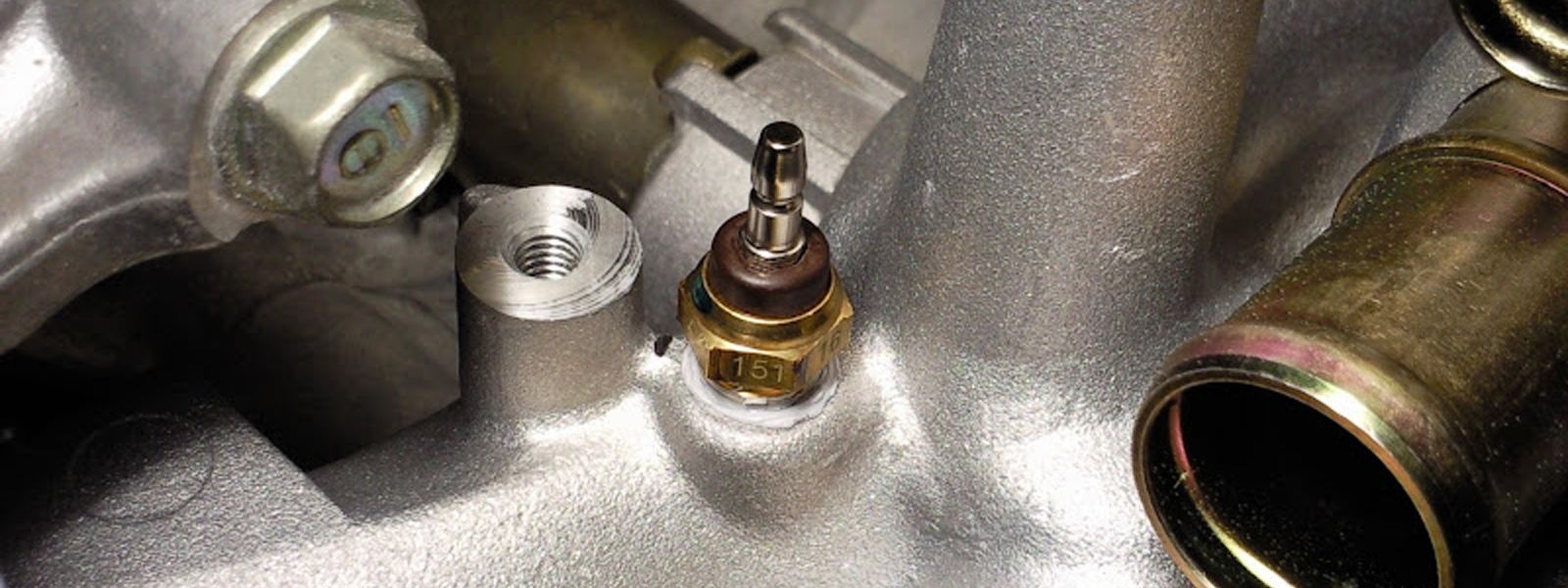

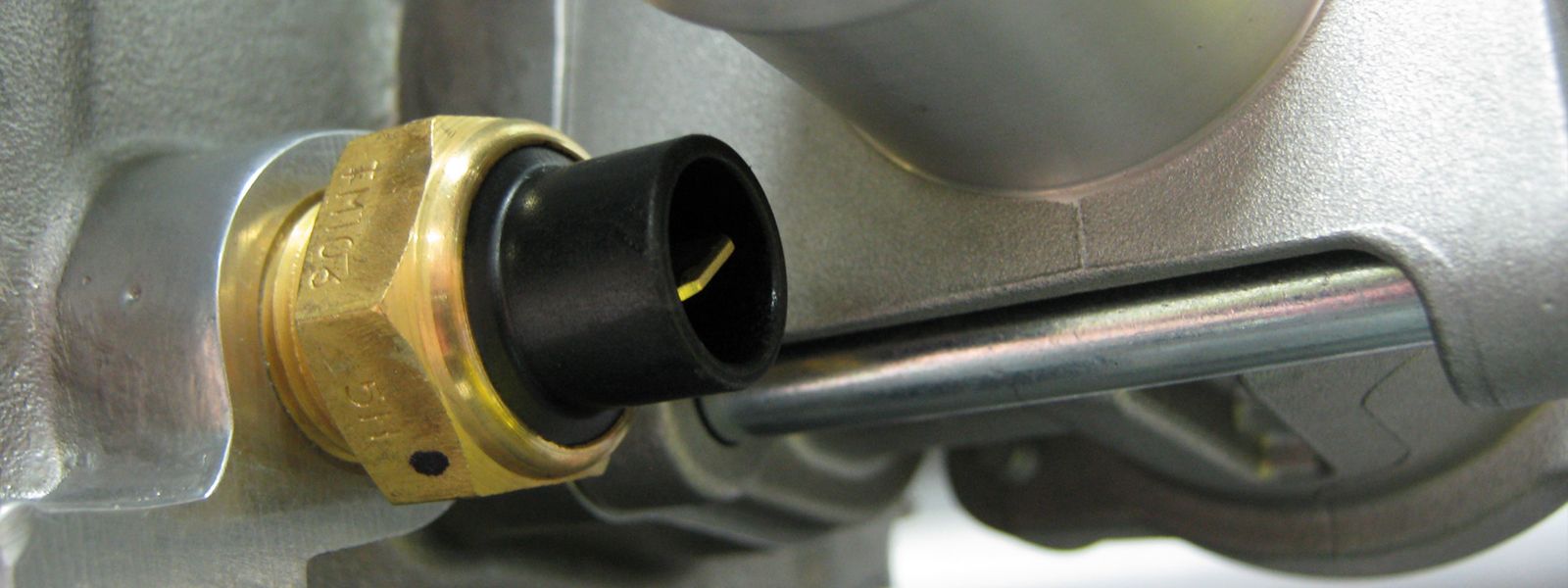

The ECT sensor is threaded or clipped into a coolant passage, but its exact location depends on the year, make, model, engine, and which coolant temperature sensor the code refers to. Common areas include the cylinder head, engine coolant outlet, thermostat housing, intake-manifold coolant passage, or radiator. It usually has a small two-wire electrical connector, but connector shape and terminal count are not universal.
Do not identify the part by location alone. Some vehicles use more than one coolant temperature sensor, and the dashboard gauge may use a separate sender. For example, certain Honda applications list one sensor at a water outlet and another at the radiator. A Toyota, Lexus, Dodge, Ford, or Peugeot can use a different layout even when the scan code is identical.
- Decode the VIN or confirm the exact year, model, engine, and drivetrain.
- Consult the vehicle-specific wiring diagram and service procedure for “ECT Sensor 1.”
- Trace the upper radiator hose toward the engine only as an initial visual clue—not as proof of sensor identity.
- Match the connector, terminal arrangement, thread or retaining method, and listed installation location before ordering.
If you are unsure which configuration you have, A-Premium’s free VIN decoder can identify core vehicle specifications before you check product compatibility.
What Symptoms and Causes Point to P0117?
Symptoms depend on how the manufacturer programs fail-safe operation. The Check Engine light may be the only obvious sign, or the false high-temperature input may change starting, fueling, and cooling-fan behavior.
| Finding | What it can suggest |
|---|---|
| ECT live data is extremely hot immediately after an overnight cold soak | Shorted sensor or signal circuit; the engine cannot physically be that hot before starting. |
| Cooling fan runs continuously from a cold start | Possible fail-safe response to an implausible ECT signal; confirm with scan data. |
| Reading changes when the harness is moved | Intermittent connector contact, chafed insulation, heat damage, or an internal wire break. |
| Actual steam, coolant loss, or hot engine components | A real cooling-system problem may exist alongside the code and must be addressed first. |
Likely electrical causes include an internally shorted ECT sensor, a signal wire shorted to ground, moisture or corrosion in the connector, pushed-out or loose terminals, and harness insulation damaged by rubbing or exhaust heat. A control-module fault is possible but uncommon and should be considered only after the sensor, connector, wiring, powers, grounds, and any shared reference circuit have been tested.
Low coolant, a stuck thermostat, or a weak water pump does not normally create a circuit-low electrical fault by itself. However, a genuinely overheating engine can produce a high-temperature reading, so physical cooling-system symptoms must not be dismissed. Learn how the component differs from the thermostat in this engine coolant temperature sensor guide.
How Do You Diagnose P0117 Without Replacing the Wrong Part?
Use a scan tool first and a digital multimeter only when you have the correct wiring diagram and connector information. Record all stored and pending codes plus freeze-frame data before clearing anything.
- Confirm whether the engine is physically overheating. With the engine fully cold, check coolant level and inspect for leaks. Stop if there are real overheating signs.
- Compare cold-soak readings. Before starting the engine, compare ECT with intake air temperature and ambient temperature. They should be reasonably close after the vehicle has sat long enough to equalize. A wildly hot ECT reading is strong evidence of a circuit problem.
- Inspect the connector and harness. Look for coolant contamination, corrosion, loose pins, damaged locks, rubbed insulation, melted sections, and recent repair damage.
- Perform a sensor-disconnect check with key on, engine off. Watch ECT live data while disconnecting the correct sensor. If the value changes from implausibly hot to an extreme-cold substitute, the sensor may be internally shorted. If it stays implausibly hot, suspect a signal wire short to ground or another circuit fault.
- Test the circuit to manufacturer specifications. Check the reference, signal, and ground paths only with the correct pinout. Do not assume every vehicle uses the same voltage, resistance, connector, or test threshold.
- Use a wiggle test for intermittent faults. Move accessible harness sections while monitoring live ECT data. A sudden jump helps identify the affected area.
Common mistake: installing a new ECT sensor, clearing the code, and assuming the repair is complete. If P0117 remains after sensor replacement, recheck that the correct sensor was replaced, verify the connector is fully seated, confirm part fitment, and test the wiring for a short to ground. On systems with a shared reference circuit, related sensor codes can provide another clue.
How Do You Fix P0117 and Verify the Repair?
The correct repair follows the confirmed cause. Clean or replace a damaged connector using an approved repair method, repair chafed wiring, or replace the ECT sensor only when testing identifies it as faulty. A real coolant leak, circulation problem, or overheating condition requires a separate cooling-system diagnosis.

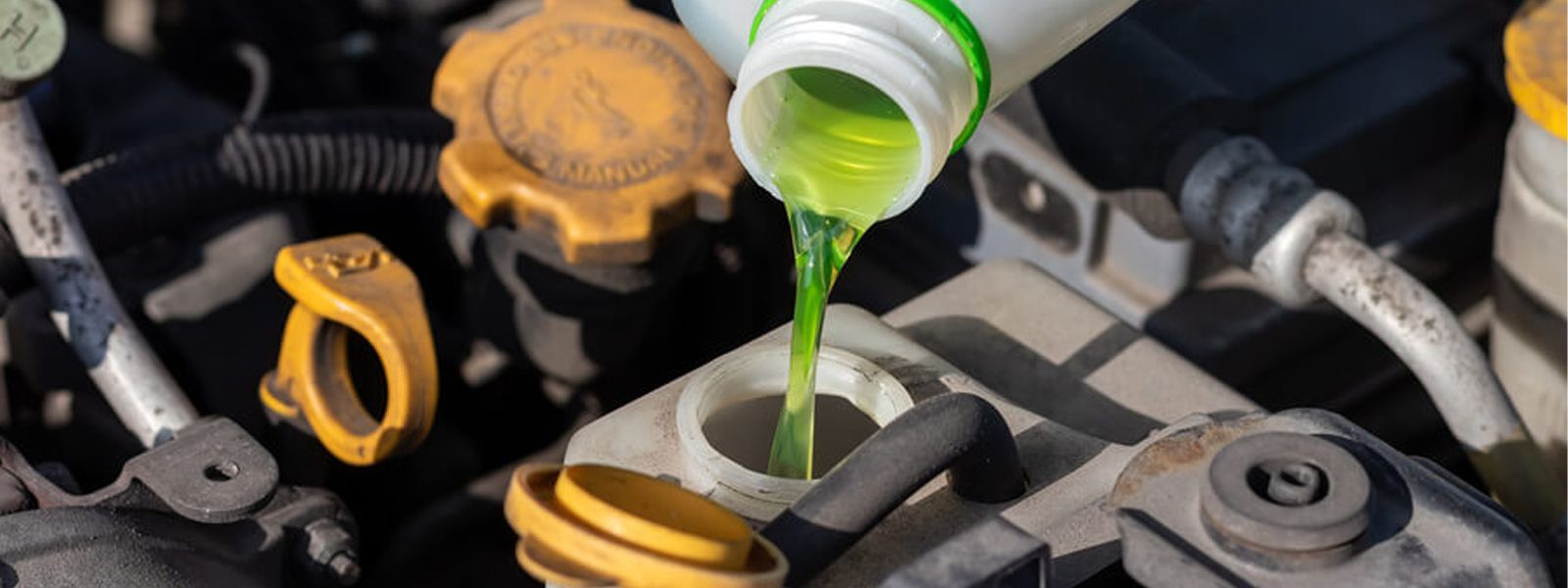

Sensor replacement can release coolant. Let the engine cool completely, follow vehicle-specific drain and refill instructions, use the specified coolant, and bleed the system as required. Use the service manual for the sealing method and tightening specification; universal torque values can damage a sensor, housing, or cylinder head.
After the repair, reconnect everything, restore coolant level as specified, clear the code, and start the engine while watching live ECT data. The reading should begin near the cold-soak baseline and rise smoothly as the engine warms. Confirm normal fan operation, inspect for leaks, complete an appropriate drive cycle, and rescan for stored or pending codes.
Which A-Premium Parts Fit a Confirmed P0117 Repair?
P0117 does not automatically mean you need a new sensor. Once live-data and circuit tests confirm that the ECT sensor is internally faulty, choose a replacement by exact vehicle and installation position—not by code number alone. The following are representative fitment examples for vehicle groups that commonly appeared in searches for this topic.
| Vehicle group | Example A-Premium sensor | Fitment check |
|---|---|---|
| Toyota / Lexus and selected applications | APTS0034 coolant temperature sensor | Confirm year, engine, rectangular connector, and two-blade configuration. |
| Honda / Acura | APTS0005 coolant temperature sensor | Confirm whether the required sensor is at the water outlet or radiator. |
| Chrysler / Dodge / Jeep / Ram | APTS0018 coolant temperature sensor | Verify the exact year, model, engine, connector, and listed compatibility. |
You can also use an OBD2 scanner to save codes, review freeze-frame information, and monitor live ECT data. Before ordering any sensor, enter the vehicle details on the product page and compare the connector and installation notes with the part removed from the vehicle.
FAQs
Does P0117 always mean the coolant temperature sensor is bad?
No. A short-to-ground in the signal wire, connector corrosion, damaged terminals, or a less common module/reference-circuit problem can create the same low-input condition. Test before replacing parts.
Can a bad thermostat cause P0117?
A thermostat problem usually affects actual coolant temperature rather than directly shorting the ECT electrical circuit. Diagnose genuine overheating or warm-up problems separately and check for related codes such as P0128.
Why does the radiator fan run when the engine is cold?
Some control modules command the fan on as a protective fail-safe when the ECT signal is implausible. Verify the displayed temperature and circuit fault rather than assuming the fan itself is defective.
Why did P0117 return after I replaced the sensor?
The connector or wiring may still be shorted, the wrong sensor may have been replaced, the new part may not match the vehicle, or another shared circuit fault may be present. Recheck live data and the manufacturer’s circuit tests.
Are Toyota P0117 and Honda P0117 diagnosed the same way?
The code describes the same general circuit-low condition, but sensor location, connector pinout, thresholds, fail-safe behavior, and test steps can differ. Use vehicle-specific service information.
Can I clear P0117 without fixing it?
A scanner can clear the code, but it will usually return if the fault remains. Save freeze-frame data before clearing, repair the confirmed cause, and verify the live reading through a warm-up cycle.
