P2096 Code: Post Catalyst Fuel Trim System Too Lean

Getting a check engine light or malfunction indicator lamp (MIL) can instantly disrupt your peace of mind. When you connect a scan tool and pull a p2096 code, it flags a specific issue: Post Catalyst Fuel Trim System Too Lean on Bank 1.

While this code might sound intimidating, breaking down its exact data parameters makes troubleshooting highly manageable. Before replacing expensive emissions components blindly, this guide will help you diagnose the root problem accurately and implement long-term solutions.

The P2096 diagnostic trouble code stands for "Post Catalyst Fuel Trim System Too Lean on Bank 1," which indicates that your vehicle's powertrain control module (PCM) has detected an excessive amount of residual oxygen—or a shortage of fuel—in the exhaust stream after it passes through the catalytic converter.

In modern automotive engine management, while the upstream oxygen sensor manages real-time combustion delivery, the downstream heated oxygen sensor is used by the computer to evaluate catalyst efficiency and fine-tune the post catalyst fuel trim. When this rear sensor continuously reads a lean condition, the PCM attempts to compensate by adding extra fuel; once these long-term corrections hit maximum allowable limits (typically exceeding to ), it illuminates the check engine light and stores the code in its memory.

This specific code targets Bank 1, which designates the engine side containing cylinder number one—a crucial architectural distinction when performing a diagnosis on V6 or V8 models found in brands like Jeep or Subaru, compared to single-bank inline engines.

Differentiating P2096 from a pre-catalyst lean code like P0171 is a key step for car owners, as P0171 usually points to entry-level combustion issues like a faulty MAF sensor or unmetered vacuum leaks, whereas P2096 narrows the problem down to downstream faults.

For more professional consulting on OBD2 codes, you can read OBD2 Codes Categories Explained (P, C, B, U) .

The Role of Post-Catalyst Monitoring

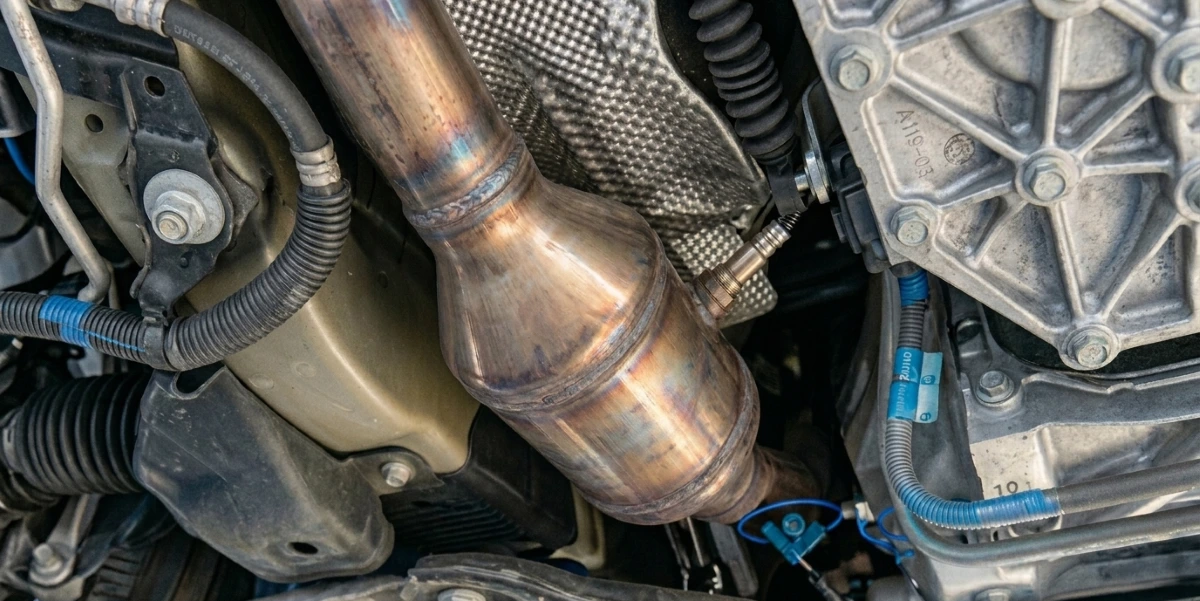

Modern vehicles utilize a pre-catalyst (upstream) oxygen sensor primarily to regulate air-fuel ratio delivery. The post catalyst fuel trim system uses a downstream heated oxygen sensor to verify that the catalytic converter is doing its job reducing tailpipe emissions.

The p2096 code is set when the downstream oxygen sensor, Sensor 2, shows the post-catalyst trim staying too lean. When this downstream sensor reads a persistent lean condition (excess residual oxygen or insufficient fuel), the PCM tries to compensate by adjusting fuel delivery. When those software adjustments hit their physical maximum threshold, the PCM will determine a fault exists and trigger the warning light.

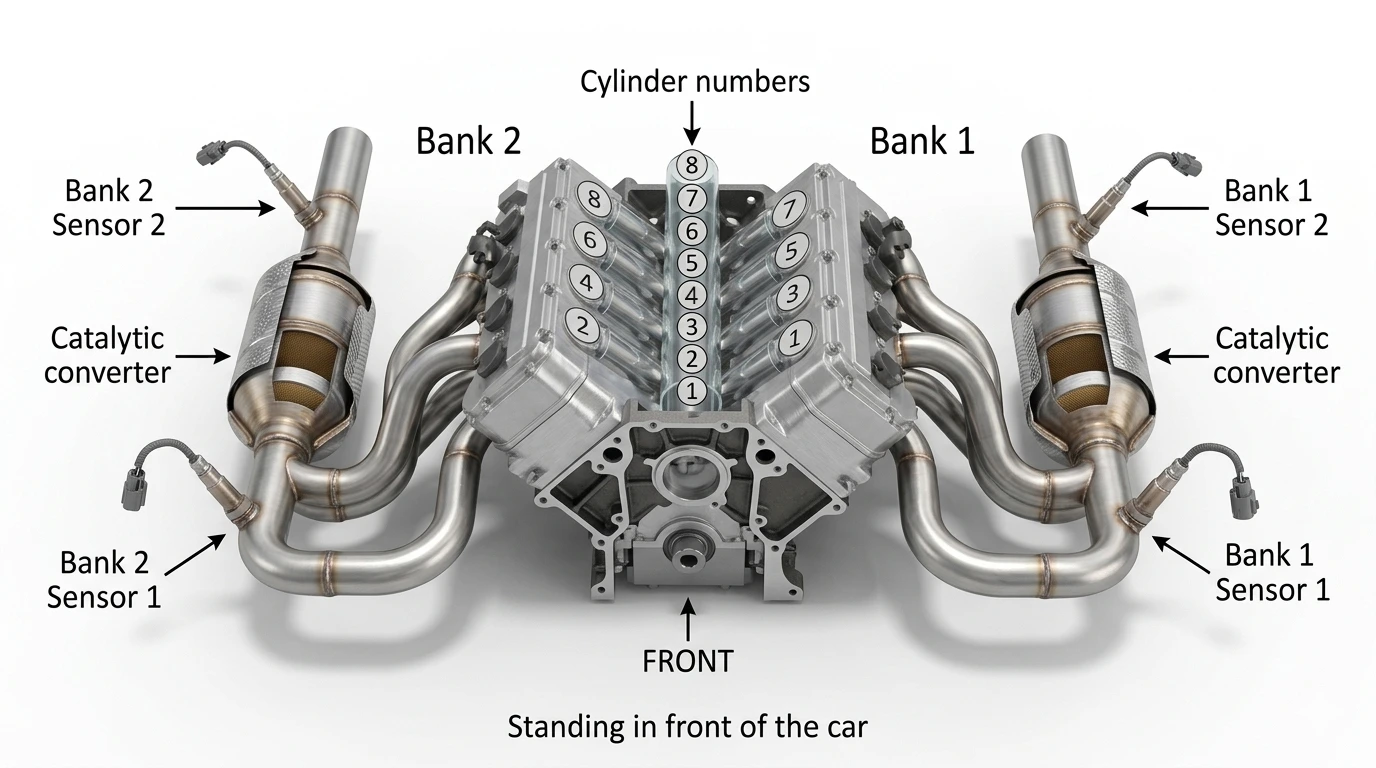

• Understanding Bank 1: Bank 1 refers explicitly to the side of the engine block that contains cylinder number one. This applies to inline configurations as well as split V-blocks found across manufacturers like Jeep or Subaru. Proper diagnosis is key before replacing parts.

While the most obvious indicator is the illuminated check engine light, common symptoms can also include performance issues that vary depending on the underlying lean-condition cause, as mentioned below:

• Diminished Fuel Economy: A marginal loss of 1 to 3 MPG as the engine management computer hunts for the optimal stoichiometric burn.

• Minor Idle Fluctuations: Rough, unrefined feedback at a stoplight or when coasting down the road.

• Engine Hesitation: A brief stumble or delay when accelerating from a dead stop under heavy load conditions.

• Spark Knock (Detonation): Lean mixtures generate higher combustion temperatures. If you hear a faint metallic pinging sound under acceleration, address the issue immediately to prevent irreversible piston or cylinder damage.

A systemic lean reading at the rear sensor typically stems from one of three areas: sensor failure, metered air distortion, or a physical structural break.

Isolating a P2096 code requires a systematic, data-driven methodology using basic shop tools.

1. Freeze Frame & Live Data Analysis

Connect your scan tool to the OBD-II port, turn the ignition switch to the ON position (or keep the engine idling depending on your scanner’s requirements), and pull the stored data memory. Inspect the "Freeze Frame" snapshot to view parameters like engine load, RPM, and fuel trim values exactly when the fault occurred.

2. Monitor Heated Oxygen Sensor Voltage

Review live sensor stream voltages on your scan tool.

• A healthy post-catalyst oxygen sensor should output a relatively flat, stable wave signal hovering between 0.45V and 0.55V.

• If the downstream oxygen sensor voltage fluctuates wildly or drops to zero, it indicates potential issues with the sensor or its wiring, such as a severed harness or a completely burnt-out heating element.

3. Check for Exhaust Air Intrusion

Raise the vehicle safely and trace the entire length of the exhaust pipe starting from the manifold collector down through the converter assembly. Look closely for dark carbon soot trails surrounding pipe welds, slip joints, or oxygen sensor bung threads. Even pinpoint pinholes can draw in enough ambient air to skew the sensor’s voltage calculations.

4. Isolate Intake and Vacuum Paths

Inspect the soft rubber intake ducting located between the airbox filter housing and the throttle body. Check for hidden hairline tears inside the duct bellows. You can safely identify intake tract leaks by spraying a light mist of targeted cleaner around intake gaskets while running live data; watch for sudden changes in short-term fuel trims.

Once your testing pinpointed the exact breakdown point, use the corresponding repair path:

• Downstream Oxygen Sensor Replacement: If the sensor element is dead or non-responsive, swap it out completely. Avoid generic universal variants that require wire splicing; use direct-fit plug-and-play components to avoid high resistance faults.

  • Estimated Cost: $150 – $400

• Mending Exhaust Leaks: Replace failed compression rings, leaking flange gaskets, or have a professional muffler shop weld up structural cracks in the exhaust tubing.

  • Estimated Cost: $100 – $500

• Correcting Unmetered Vacuum Breaches: Swap out dry-rotted PCV hoses, vacuum lines, or leaking intake manifold gaskets.

  • Estimated Cost: $75 – $400

• Catalytic Converter Replacement: If structural substrate failure is verified, a replacement converter is required. Aftermarket catalytic converters are designed to replace original equipment manufacturer (OEM) parts, providing a cost-effective solution for vehicle owners. These specialized emission units are essential for maintaining strict vehicle emissions standards and ensuring optimal engine performance across all operating limits.

  • Estimated Cost: $800 – $2,500

Once physical fixes are finished, hook up your scan tool, navigate to the clear codes menu, and remove the P2096 data trace from the PCM memory.

To ensure a permanent fix, perform a dynamic drive cycle. Drive the car for 20 to 30 minutes across a mix of stop-and-go surface streets and sustained highway speeds. Verify that long-term fuel trim values settle comfortably inside the normal operating window of -10% to +10% and that the malfunction indicator lamp remains completely dark.

Disclaimer: The technical instructions outline common diagnostic strategies for educational reference. Some high-clearance checks or testing procedures may require special tools or professional garage assist infrastructure to safely execute. If you lack the necessary tools, consult a certified technician to protect your powertrain.

• OEM Quality, Aftermarket Prices: Why pay $300 at the dealership when our direct-fit oxygen sensors perform identically for just $120? Engineered to meet or exceed factory specifications, they deliver precise readings and long-lasting durability.

• True One-Stop Shopping: From catalytic converters and flex pipes to fuel pumps, injectors, and MAF sensors, we stock everything required to resolve your P2096 code. Eliminate the hassle of multi-store hunting and get your parts shipped fast in one complete order.

• Expert Support & Peace of Mind: Backed by over a decade of automotive aftermarket experience, our dedicated customer service team is ready 24/7 to help you trace the exact fitment for your vehicle.

Fix it right the first time without breaking the bank. Head over to our website to find premium, budget-friendly emission solutions tailored to your ride.

Can I continue driving with a P2096 code active?

Yes, you can operate the vehicle temporarily, as it rarely causes an immediate roadside breakdown. However, driving with a persistent lean condition forces the engine to run hotter and degrades fuel efficiency, meaning a delay in repairs can eventually cost you more money at the pump.

Can a faulty upstream O2 sensor cause a P2096 code?

It is uncommon. A failed upstream sensor usually throws a pre-catalyst lean or rich code first (such as P0171). P2096 specifically targets the downstream sensor’s observation of post-catalyst exhaust behavior.

What's the difference between P2096 and P0171?

P0171 indicates the pre-catalyst (upstream) fuel trim is too lean on Bank 1, while P2096 indicates the post-catalyst (downstream) fuel trim is too lean. P0171 usually points to actual engine problems like vacuum leaks or fuel system issues. P2096 more often indicates downstream oxygen sensor failure or exhaust leaks after the converter. They can appear together when a severe lean condition affects both sensors.

Can I clean the downstream oxygen sensor?

No, you can't effectively clean oxygen sensors. The sensing element operates at extremely high temperatures and deteriorates over time. Cleaning with solvents or other chemicals doesn't restore functionality and usually damages the sensor further. When an oxygen sensor fails, replacement is the only solution. They're wear items designed to be replaced periodically.

How long do oxygen sensors last?

Downstream oxygen sensors typically last 100,000-150,000 miles under normal conditions. Harsh driving, poor fuel quality, or oil consumption can shorten sensor life. Upstream sensors typically fail sooner at 70,000-100,000 miles because they experience harsher conditions. Consider replacing oxygen sensors as preventive maintenance when they reach the upper end of their service life.
