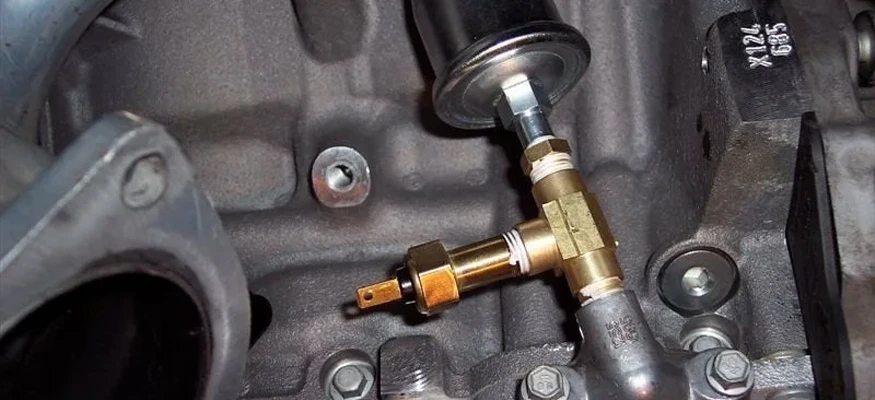

Bad Oil Pressure Sensor Symptoms: Sensor Failure or Low Oil Pressure?

What Does an Oil Pressure Sensor Actually Do?

The oil pressure sensor monitors the pressure of the oil moving through the engine’s lubrication system. It converts that pressure into an electrical signal used by the powertrain control module, dashboard gauge, or oil pressure warning light. Its purpose is to report what the oil pressure is doing—it does not circulate oil or create pressure.

The oil pump generates oil flow, while resistance within the engine’s lubrication passages helps create pressure. Oil level, viscosity, temperature, pump condition, restricted passages, and internal engine clearances can all affect actual pressure. That is why replacing a sensor cannot correct low pressure caused by insufficient oil, a worn pump, a restricted pickup, or internal engine wear.

Oil Pressure Sensor vs. Switch vs. Sending Unit

Manufacturers and parts catalogs sometimes use these names interchangeably. Do not choose a replacement by name or appearance alone. Verify the vehicle, engine, connector, terminal count, thread design, installation location, and OE interchange number.

What Are the Most Common Bad Oil Pressure Sensor Symptoms?

1. The Oil Pressure Warning Light Stays On or Flickers

A failing sensor, damaged connector, or intermittent wire can make the oil pressure light stay on, flicker, or appear at unpredictable times. However, the same warning can appear when actual oil pressure is low, especially when the engine is hot or idling.

Do not assume that a flickering light automatically means a faulty sensor. Low oil level, incorrect oil viscosity, a restricted oil pickup, worn engine clearances, or a weak oil pump can also produce pressure that is close to the warning threshold.

2. The Oil Pressure Gauge Reads Zero or Maximum

A gauge that stays at zero, remains at maximum, or does not respond to engine operation can indicate a failed sensor or electrical circuit. A disconnected connector, open wire, short circuit, poor ground, or instrument-cluster problem can produce similar behavior.

A zero reading must still be treated as potentially real until actual pressure is tested. A normal oil level does not prove that the oil pump is producing adequate pressure.

3. The Gauge Reading Changes Erratically

Oil pressure normally changes with engine speed, oil temperature, and operating load. Those changes should generally follow a logical pattern. A needle that instantly jumps between unrelated values or repeatedly drops out can point to an unstable sensor signal or wiring fault.

Record when the behavior occurs. A reading that becomes low only after the engine reaches operating temperature may require a different diagnosis than a gauge that jumps randomly over bumps or during engine vibration.

4. The Check Engine Light Comes On

On vehicles that monitor the sensor through the powertrain control module, a bad signal can illuminate the Check Engine Light and store an oil-pressure-related trouble code:

• P0520: Engine Oil Pressure Sensor/Switch Circuit
• P0521: Engine Oil Pressure Sensor/Switch Range/Performance
• P0522: Engine Oil Pressure Sensor/Switch Low Voltage
• P0523: Engine Oil Pressure Sensor/Switch High Voltage
• P0524: Engine Oil Pressure Too Low

A code identifies the system and type of fault detected by the computer; it does not confirm that the sensor itself is defective. For example, a P0521 code can be caused by an implausible sensor signal, wiring trouble, contaminated oil, or actual pressure outside the expected range. P0524 requires especially cautious diagnosis because it reports a low-pressure condition.

5. Oil Leaks Around the Sensor or Connector

An oil pressure sensor is exposed to pressurized engine oil. Its housing, internal seal, mounting seal, or threaded connection can leak. You may find wet oil around the sensor body, inside the electrical connector, or on nearby engine surfaces.

Clean the area before deciding where the leak starts. Oil from a filter housing, valve cover, or another component can run across the sensor and make a good sensor look defective. Oil inside the electrical connector is a stronger sign that the sensor body or internal seal has failed.

6. Reduced-Power Warnings on Some Vehicles

On some vehicles, the computer may limit engine performance when it receives an oil pressure signal that appears unsafe or implausible. This can result in a reduced-power warning or sluggish acceleration. The exact response depends on the vehicle’s control strategy.

Loss of power, rough idle, overheating, ticking, and knocking are not universal proof of a bad oil pressure sensor. They can also indicate real low oil pressure, variable valve timing problems, incorrect oil, or unrelated engine faults. Treat them as reasons for broader diagnosis rather than reasons to replace the sensor immediately.

Is It a Bad Sensor or Real Low Oil Pressure?

This is the most important distinction in the diagnosis. A failed sensor can produce a false warning, but genuine low oil pressure can damage the engine if it continues running. No single dashboard symptom can reliably separate the two.

A quiet engine does not prove that pressure is safe, and a full dipstick does not prove that the pump is working. A mechanical pressure test compared with vehicle-specific specifications is the most reliable way to separate a reporting fault from a lubrication problem.

How Do You Diagnose a Bad Oil Pressure Sensor Step by Step?

Work from the safest and least invasive checks toward specialized testing. Do not buy a sensor simply because the oil light is on.

1. Stop and check the oil level. Park safely, switch off the engine, and follow the owner’s manual procedure for checking the dipstick. If the level is low, do not assume adding oil completes the diagnosis; determine where the oil went.
2. Inspect for external leaks. Look around the sensor, oil filter housing, oil pan, engine seals, and the ground under the vehicle. Cleaning existing residue may be necessary to identify the actual source.
3. Record the warning conditions. Note whether the warning occurs on a cold start, at hot idle, during acceleration, over bumps, or continuously. Do not repeatedly rev the engine to make the warning disappear.
4. Scan for trouble codes. Record P0520–P0524 and any related oil control, variable valve timing, or electrical codes. Do not clear them before saving available freeze-frame information.
5. Inspect the connector and wiring. Look for oil contamination, loose terminals, damaged insulation, broken connector locks, corrosion, and wiring that has rubbed against the engine.
6. Verify actual pressure. A technician can temporarily install a mechanical oil pressure gauge and compare the result with the manufacturer’s specification at the required oil temperature and engine speed.
7. Test the circuit when needed. Reference voltage, signal voltage, resistance, and grounding procedures vary by vehicle. Use the correct wiring diagram and service information instead of applying a universal specification.

If the vehicle also stores an oil pressure control code, review the P06DD oil pressure control diagnostic guide. Oil control solenoid faults, oil quality problems, and sensor faults can overlap, but they are not interchangeable diagnoses.

Can You Drive With a Bad Oil Pressure Sensor?

Do not continue driving until actual oil pressure has been verified. From the driver’s seat, a false sensor warning and a real low-pressure warning can look the same. If the oil pressure warning appears while the engine is running, pull over safely, switch off the engine, and check the oil level according to the procedure in your owner’s manual.

If the oil level is low, do not restart the engine until you understand why. If the level is correct but the warning remains, the problem could still involve the sensor, wiring, oil pump, restricted oil flow, or internal engine wear. Arrange proper diagnosis instead of driving to see whether the warning disappears.

Even after testing confirms normal mechanical pressure and identifies a failed sensor, the repair should not be postponed indefinitely. Without a reliable sensor or switch, you may not receive an accurate warning if a real oil pressure problem develops later.

Stop the Engine and Arrange Service If:

• The oil pressure warning remains on while the engine runs
• The oil level is low and the cause is unknown
• You hear new ticking, knocking, or grinding
• There is a significant or active oil leak
• The engine loses power or shuts down with an oil warning
• A mechanical test confirms pressure below specification

What Causes an Oil Pressure Sensor to Fail?

Oil pressure sensors operate in a demanding location. They are exposed to engine heat, vibration, electrical load, and pressurized oil throughout every drive cycle.

• Heat cycling: Repeated heating and cooling can weaken internal seals and electrical components.
• Engine vibration: Constant movement can fatigue terminals, wiring, and internal sensor elements.
• Oil contamination: Sludge or debris can restrict the sensor port and delay or distort the pressure signal.
• Seal or housing failure: Oil can leak around or through the sensor body and contaminate the connector.
• Connector corrosion: Moisture, oil, and damaged seals can create excessive resistance or intermittent contact.
• Wiring damage: Heat, abrasion, poor routing, or previous repairs can interrupt the signal circuit.
• Incorrect installation: Wrong sealant, damaged threads, or excessive tightening can damage the sensor or engine mounting point.

How Much Does Oil Pressure Sensor Replacement Cost?

Oil pressure sensor replacement commonly costs approximately $150 to $350 when parts, diagnosis, and professional labor are included. The final price can fall outside this range depending on the vehicle, sensor type, local labor rate, and how difficult the sensor is to access.

On some engines, the sensor is easy to reach near the oil filter, oil filter housing, or cylinder head. On others, intake components, engine covers, brackets, or other hardware must be removed. Mechanical oil pressure testing, connector repair, wiring work, oil cleanup, and additional engine diagnosis can also increase the total cost.

DIY replacement may reduce labor cost, but diagnosis should come first. Installing a new sensor without confirming actual oil pressure can waste money and leave a serious lubrication problem unresolved. Installation procedures, sealing methods, socket sizes, and tightening specifications are vehicle-specific.

How Do You Choose the Right Replacement Oil Pressure Sensor?

Oil pressure sensors can look nearly identical while using different threads, pressure ranges, connectors, or terminal arrangements. Match the replacement to more than the basic vehicle name.

Confirm the following before ordering:

• Vehicle year, make, model, and engine
• Oil pressure sensor, switch, or sending-unit function
• Connector shape and gender
• Terminal quantity and terminal type
• Thread and sealing design
• Installation location
• OE and interchange numbers
• Vehicle-specific fitment notes
