Wheel Cylinder

Find the right brake wheel cylinder for your vehicle

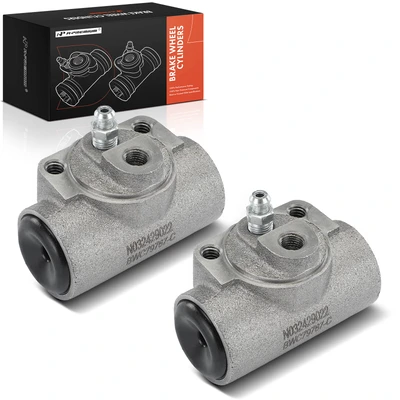

A brake wheel cylinder is a hydraulic component used in drum brake systems. When brake pressure reaches the cylinder, its pistons push the brake shoes outward against the drum to create stopping force. Replacement fitment can vary by vehicle, axle position, bore diameter, drivetrain, wheelbase, brake package, and other chassis details. Start by selecting your vehicle, then compare the listing's installation position, fitment notes, quantity, and part specifications with the cylinder being replaced.

How to choose the right brake wheel cylinder

A cylinder that bolts to the backing plate is not automatically the correct match. Use the vehicle fitment information first, then verify the brake configuration and the specifications that can change hydraulic operation or installation.

Shop brake wheel cylinders by vehicle

Vehicle selection is the fastest way to narrow the catalog because wheel cylinder fitment can change within the same brake category. Choose a make below, then continue to the model and year that match your vehicle.

• Ford Brake Wheel Cylinders
• Chevrolet Brake Wheel Cylinders
• Toyota Brake Wheel Cylinders
• GMC Brake Wheel Cylinders
• Dodge Brake Wheel Cylinders
• Jeep Brake Wheel Cylinders

Signs that a brake wheel cylinder needs inspection

Wheel cylinder problems are usually identified by inspecting the drum brake assembly rather than by one symptom alone. Common warning signs include:

• Brake fluid inside the drum or wetness around the wheel cylinder boots.
• Brake shoes contaminated by leaking fluid.
• A piston that sticks, moves unevenly, or does not return freely.
• Uneven braking or pulling caused by one drum brake applying differently from the other side.
• A soft or sinking pedal accompanied by a confirmed hydraulic leak.

A soft pedal by itself does not prove the wheel cylinder has failed. Air in the hydraulic system, a damaged brake hose, a master-cylinder problem, or another leak can produce similar symptoms, so inspect the full hydraulic system before replacing parts.

Replace one wheel cylinder or both sides?

Replacing both wheel cylinders is not automatically required when only one side leaks, but the opposite side should be inspected because both cylinders operate under similar age, fluid, heat, and road conditions. If the other cylinder shows seepage, corrosion, damaged boots, restricted piston movement, or similar wear, replacing the pair can avoid another drum-brake teardown soon after the repair.

A leaking cylinder can also damage nearby friction and hardware components. Before closing the repair, inspect the brake shoes, brake drum, springs, adjuster, and brake hardware. Fluid-contaminated or damaged components should be addressed before the vehicle returns to service.

What to verify in a brake wheel cylinder listing

After selecting your vehicle, use the product details to confirm the exact application rather than relying on appearance alone. Pay particular attention to information that can separate two otherwise similar cylinders.

• Installation position: Check whether the cylinder is listed for the front or rear axle and whether driver/passenger positioning is specified.
• Fitment notes: Read exclusions or requirements tied to GVW, wheelbase, RWD or 4WD, brake package, or other vehicle configuration details.
• Bore size: When a bore dimension is provided, match it to the original brake setup rather than assuming another size is interchangeable.
• Quantity: Confirm whether the package contains one cylinder or a pair for both sides of an axle.
• Interchange number: If the removed part number is readable, compare the complete interchange number with the listing for an additional fitment check.
