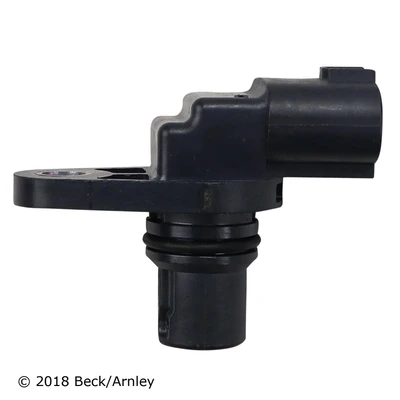

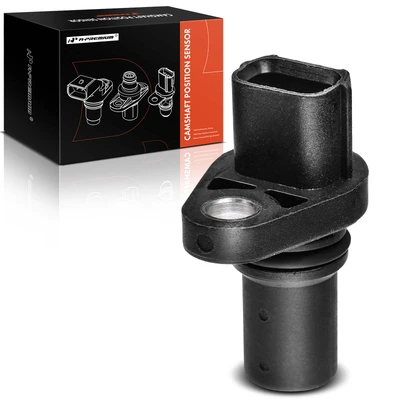

Scion FR-S Camshaft Position Sensor

The camshaft position sensor (CMP sensor) plays a key role in a modern internal combustion engine. It monitors the position and speed of the camshaft, which controls the opening and closing of the engine's intake and exhaust valves.

Location: The camshaft position sensor is typically located near the camshaft in the engine's cylinder head or valve cover. Its exact location may vary depending on the vehicle's make and model.

Function: The CMP sensor's primary function is to monitor the position and speed of the camshaft. It sends this information to the engine control unit (ECU) or engine control module (ECM). The ECU uses this data to determine the optimal timing for fuel injection and ignition, ensuring efficient engine operation.

Types of CMP Sensors

Hall Effect Sensor: Many CMP sensors use the Hall effect principle, which generates a voltage signal based on the camshaft's position.

Magnetic Pickup Sensor: Some vehicles use a magnetic pickup sensor that generates a voltage signal as the camshaft's lobes pass by it.

Symptoms of a bad camshaft position sensor

A failing or faulty camshaft position sensor (CMP sensor) can lead to various symptoms and issues in your vehicle's engine performance. Recognizing these symptoms can help diagnose and address the problem in a timely manner. Check the following:

• Check engine light: Illuminates on the dashboard due to sensor malfunction.
• Poor engine performance: Results in rough idling, stalling, and power loss.
• Misfires: Causes engine misfires, vibrations, and reduced power.
• Starting issues: Leads to hard starting or no start conditions.
• Fuel efficiency: Decreases fuel efficiency and increased consumption.
• Timing problems: Disrupts engine timing, causing erratic operation.
• Loss of OBD-II data: Affects diagnostic data and troubleshooting.
• Emissions increase: Raises emissions levels and compliance concerns.
• Transmission impact: This may affect automatic transmission shifting.
