What is a CV intermediate shaft?

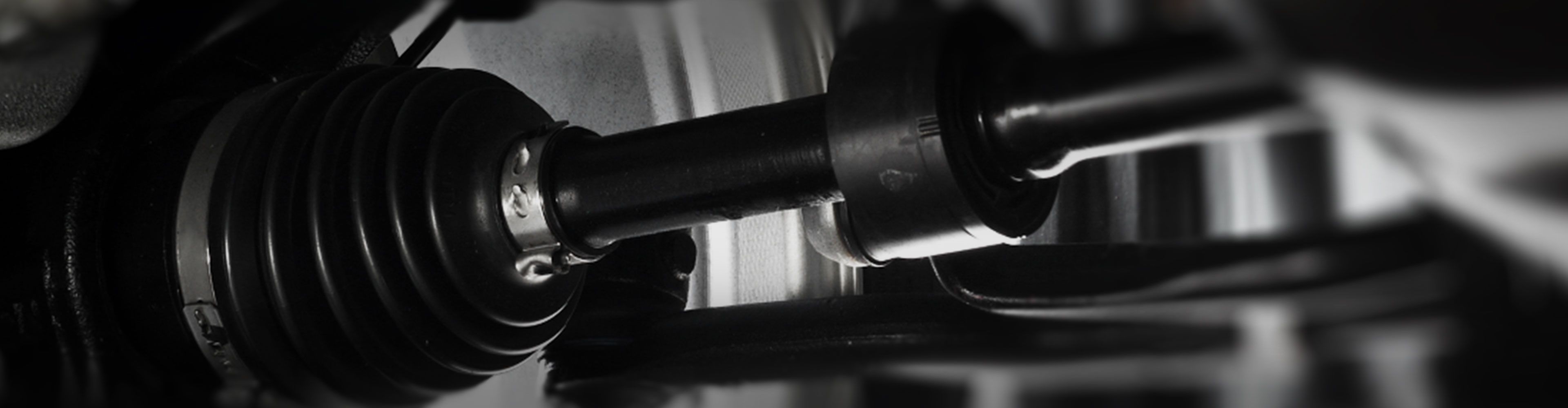

The CV intermediate shaft, also known as the CV axle or CV half shaft, is a vital component of a vehicle's drivetrain system. It is designed with a constant velocity (CV) joint at each end. These CV joints allow for flexible movement and accommodate the up-and-down motion of the suspension while maintaining a consistent velocity. This flexibility is essential for smooth power transmission, especially during turns and uneven road surfaces.

How does the CV intermediate shaft work?

The CV intermediate shaft functions by transferring the torque from the transmission or transfer case to the wheels of a vehicle. It accomplishes this through the use of constant velocity (CV) joints located at each end of the shaft. When the engine produces torque, it is transmitted through the transmission or transfer case to the CV intermediate shaft. The CV joints at the ends of the shaft allow for flexibility and articulation, accommodating the up-and-down motion of the suspension as well as the steering angles during turns.

The CV joints are designed with a set of bearings that allow for smooth rotation while maintaining a constant velocity. This is achieved through the use of specialized grooves and balls inside the CV joint housing. The CV joints are also sealed with rubber or thermoplastic boots to protect them from dirt, debris, and moisture, ensuring their longevity and performance. As the CV intermediate shaft rotates, it delivers torque to the wheels, enabling them to rotate and propel the vehicle forward. This allows for smooth power delivery, even during turns or when driving on uneven surfaces.

Maintenance tips

It's important to note that the CV intermediate shaft is subject to wear and tear over time, particularly in demanding driving conditions. Regular inspection and maintenance, including checking for damaged CV joint boots and listening for any abnormal noises during operation, can help identify potential issues and ensure the proper functioning of the CV intermediate shaft.
