P0102 Code: MAF Circuit Low Causes and Fixes

What Does the P0102 Code Mean?

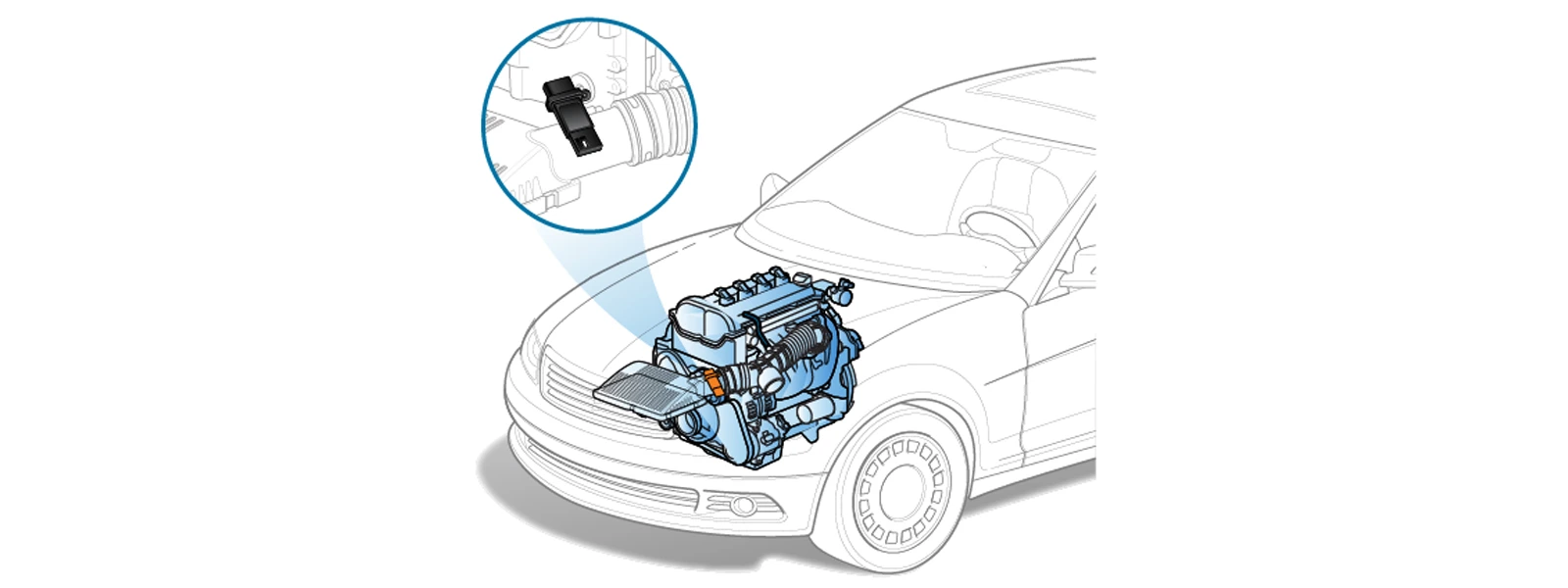

Diagnostic trouble code P0102 is commonly described as “Mass or Volume Air Flow ‘A’ Circuit Low.” The mass air flow sensor, usually located in the air-intake path between the air filter housing and throttle body, reports how much air is entering the engine. The powertrain control module uses that input when calculating fuel delivery and checking whether measured airflow agrees with engine speed, throttle position, the manifold absolute pressure (MAP) sensor, and other operating data.

“Circuit low” means the reported MAF signal dropped below the calibrated range under the conditions monitored by that vehicle. It does not simply mean the engine is receiving too little air, and it does not prove the sensing element has failed. Depending on the vehicle, the computer may monitor a voltage signal, frequency signal, or calculated airflow value. Use specifications for the exact year, engine, and sensor design rather than a universal voltage or grams-per-second target.

How Serious Is P0102, and Can You Keep Driving?

P0102 is usually not an immediate stop-engine warning if the car starts, idles steadily, accelerates normally, and has no fuel smell or flashing check-engine light. However, the computer may substitute an estimated airflow value, so performance and fuel control can be less reliable than normal.

Symptoms that may accompany P0102 include an illuminated check-engine light, unstable idle, difficult starting, hesitation, stalling, reduced acceleration, unusual fuel consumption, or exhaust smoke. These symptoms are not unique to a MAF fault, which is why testing matters.

What Usually Causes a P0102 MAF Circuit Low Code?

The most useful way to rank causes is by what can pull the signal low or make calculated airflow implausibly low—not by assuming every air-intake problem has the same effect.

1. MAF connector left loose or unplugged: This is especially common after air-filter or intake work. A partially seated lock or pushed-back terminal can create an intermittent low signal.
2. Open, shorted, corroded, or damaged wiring: Missing sensor power, a poor ground, or a signal circuit shorted low can set P0102 even when the MAF element is usable.
3. Contaminated sensing element: Dust, oil residue from an over-oiled reusable filter, or deposits can insulate the hot-film or hot-wire element and distort its response.

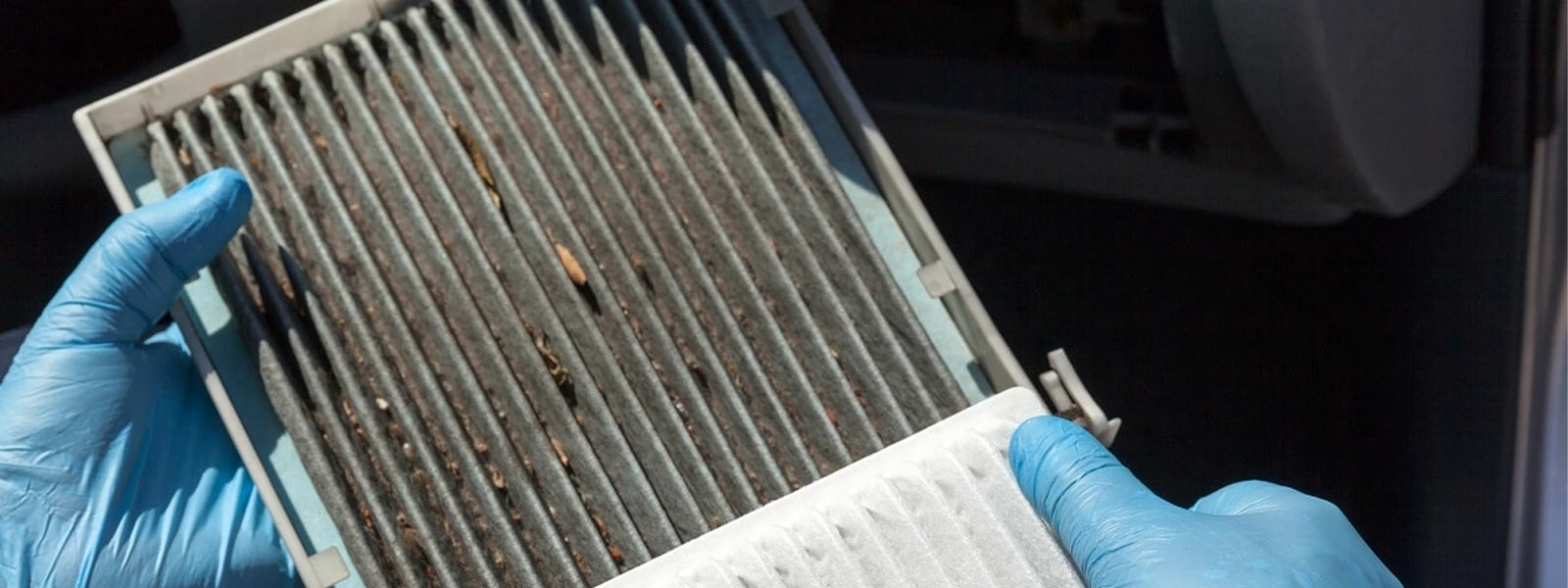

4. Restricted or incorrectly assembled intake: A severely clogged engine air filter, blocked inlet, collapsed duct, or incorrectly installed air box can reduce measured airflow.
5. Failed or incorrect MAF sensor: Internal electronics can fail, but the replacement must match the vehicle’s calibration, connector, housing, and sensor configuration.
6. PCM or shared-circuit problem: This is uncommon and should be considered only after the sensor, wiring, terminals, powers, grounds, and related codes have been tested.

An intake leak after the MAF can cause lean operation and airflow-correlation problems, but it does not automatically explain a low electrical circuit signal. If P0101, P0171, P0174, fuel-trim issues, or an unstable idle appear with P0102, inspect the duct, clamps, PCV plumbing, and vacuum system as part of the wider diagnosis.

How Do You Diagnose P0102 and Identify the Right Repair?

1. Read every code and save freeze-frame data

Record whether P0102 is current, pending, history, or permanent and note engine speed, load, temperature, and vehicle speed when it set. Codes for sensor supply voltage, intake-air temperature, throttle position, MAP, lean mixture, or misfires can reveal a shared circuit or a broader intake problem. For example, P0102 and P0113 together may point toward an unplugged MAF/IAT assembly or shared connector issue on vehicles that combine both sensors.

2. Check recent work and inspect the air path

With the ignition off, make sure the connector is fully latched and inspect it for corrosion, bent pins, pushed-back terminals, oil, and broken locking tabs. Follow the harness far enough to find rubbing, stretching, or heat damage. Check that the filter is correctly seated, the air-box lid closes evenly, the air intake hose is not split or collapsed, and every clamp and breather connection is secure.

3. Compare MAF scan data with how the engine is operating

Look for a reading that is missing, stuck, implausibly low, or fails to change smoothly as engine speed rises. Compare it with RPM, throttle position, manifold pressure, and calculated load. Do not condemn the sensor from an internet rule such as a fixed grams-per-second value at idle; engine displacement, altitude, valve timing, load, and sensor strategy change the expected reading.

4. Clean the MAF only when contamination is visible or plausible

Remove the sensor only if the service procedure allows it. Spray the sensing element with cleaner specifically labeled for MAF sensors, do not touch or scrub the delicate element, and let it dry completely before reinstalling. Do not use brake cleaner, carburetor cleaner, compressed air, or a cotton swab. Cleaning cannot repair failed electronics, damaged terminals, or a missing circuit feed.

5. Test power, ground, and signal using the correct diagram

Identify every terminal from vehicle-specific wiring information because pin counts and signal types vary. Verify the specified power supply and ground under operating conditions, then check whether the signal responds as the manufacturer describes. A frequency-output sensor requires different testing from a voltage-output sensor. Avoid piercing insulation or shorting adjacent terminals; use approved back-probing methods and seek professional help if the circuit design is unclear.

Which Repair Will Clear P0102?

The repair must match the failed check. Possible fixes include reconnecting and securing the plug, repairing damaged wiring or terminals, correcting a power or ground fault, replacing a severely restricted filter, resealing or replacing a damaged intake duct, cleaning a contaminated sensor, or replacing a MAF sensor that fails circuit and response tests.

Replacing the MAF will not permanently fix P0102 if the real cause is a loose terminal, missing supply voltage, damaged harness, intake restriction, or incorrect part. Likewise, disconnecting the sensor and noticing that the engine runs differently is not a complete test; the PCM may switch to substitute values whenever the sensor is unplugged.

Choose the Right A-Premium Intake-System Solution

P0102 does not have one universal parts solution. A-Premium offers competitively priced intake-system components that can address the confirmed fault: a replacement MAF sensor when its power, ground, and wiring pass but its output remains incorrect; an engine air filter when airflow is genuinely restricted; or an air intake hose when the duct is cracked, collapsed, or cannot seal correctly. A throttle body or MAP sensor should be replaced only when its own testing or related codes identify it as faulty, not simply because the PCM uses its data to cross-check airflow.

Listings identify fitment by year, make, model, engine, connector or pin count, housing design, included components, and interchange numbers where applicable. Enter the complete vehicle information and compare the original part and listing notes before ordering. If a detail is unclear, A-Premium’s 24/7 customer service can help verify compatibility. Eligible purchases include 90-day free returns, while the applicable warranty is shown on each product listing. This combination of fitment information, product quality, competitive pricing, and support reduces the chance of repeating the repair because the wrong configuration was selected.

How Do You Verify the P0102 Repair?

1. Reconnect every plug and intake connection, then inspect the engine bay for tools, loose clamps, or disconnected hoses.
2. Clear the code only after recording the original codes and freeze-frame data.
3. Start the engine and confirm that the MAF reading is present, plausible, and responds smoothly as operating conditions change.
4. Road-test under conditions similar to the saved freeze frame while monitoring P0102 status and related data.
5. Rescan for current, pending, and permanent codes. A permanent P0102 cannot normally be erased manually; it clears after the onboard monitor confirms the fault is no longer present.

If P0102 returns immediately with the key on or just after startup, concentrate on the connector and electrical circuit. If it returns only under particular load or speed conditions, compare scan data and inspect for an intermittent harness, restriction, duct problem, or vehicle-specific correlation fault.
