P0521 Code: Oil Pressure Sensor Range/Performance — Causes, Fix & Cost
P0521 is an engine diagnostic code that indicates a problem with the engine oil pressure sensor. It is important to address this issue promptly to ensure proper engine performance and prevent potential damage.
Quick Answer
Code P0521 means the PCM detected an Engine Oil Pressure Sensor/Switch Range/Performance problem—the oil pressure signal is out of expected range or behaving abnormally. It can be a failed oil pressure sensor or wiring, low/dirty oil, a wrong or clogged filter, or genuine low oil pressure from a pump or internal wear. Check the oil level first. If the oil pressure warning light is on or you hear ticking/knocking, stop driving and verify pressure with a mechanical gauge before replacing parts. After tests confirm a bad sender, replace the oil pressure sensor, clear the code, and recheck.
Safety note: Low oil pressure can destroy an engine quickly. Do not treat P0521 as a “sensor-only” annoyance until oil level and mechanical oil pressure are verified. Hot oil and pressurized systems can burn you—use vehicle-specific service information. This guide is general education, not a substitute for professional diagnosis.
When a scanner shows P0521 code, the computer is telling you the oil pressure reading does not look right. That matters because the same code can mean a cheap sensor—or a lubrication problem that can wipe bearings in minutes. This guide follows the questions drivers actually search: what P0521 means, symptoms, whether it is safe to drive, causes, diagnosis order, fixes, cost, and how it differs from related codes like P0520–P0524 and P06DD.
What Does the P0521 Code Mean?

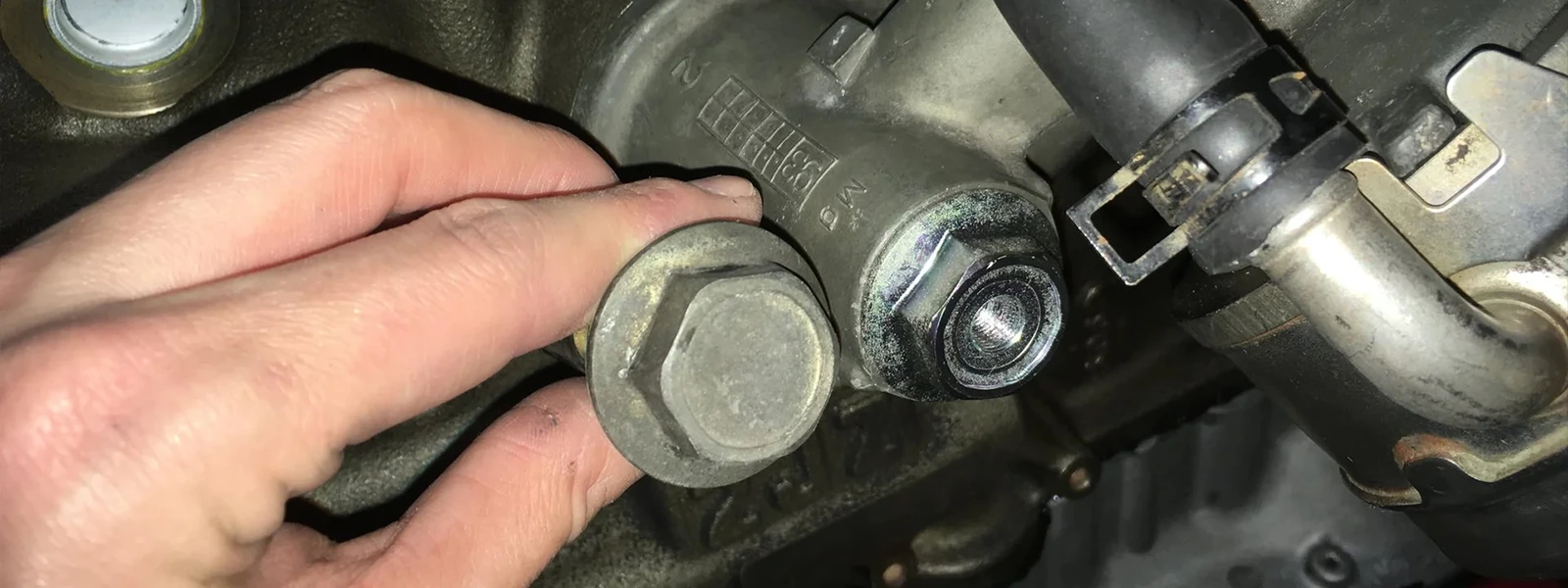

P0521 is a generic OBD-II powertrain code defined as Engine Oil Pressure Sensor/Switch Range/Performance. The oil pressure sensor (also called a sender or switch, depending on design) reports engine oil pressure to the PCM. The PCM compares that signal with expected values for RPM, temperature, and operating conditions. If the reading is too high, too low, stuck, or inconsistent with expected performance, it stores P0521 and usually turns on the check engine light.
In plain English: the computer does not trust the oil pressure signal it is getting. That distrust may come from the sensor circuit—or from real pressure that is outside the normal window. P0521 alone does not prove which one.
What Are the Symptoms of a P0521 Code?
Common P0521 symptoms include dashboard warnings and abnormal oil pressure indications. Urgency rises when mechanical noise appears.
| Symptom | Urgency | What it may mean |
|---|---|---|
| Check engine light | High—diagnose soon | PCM stored P0521 |
| Oil pressure warning light | Critical | Treat as possible low oil pressure until proven otherwise |
| Oil pressure gauge too high, too low, or unstable | High | Bad sensor, wiring, or real pressure problem |
| Ticking, knocking, or rattling from the engine | Critical—stop | Possible lubrication failure or oil-pressure-fed timing components starving |
| Rough running, reduced power, or stalling | High | May accompany low pressure or related strategy limits |
If you mainly see false gauge readings or a light with no noise, you may still be looking at a failed sender—but confirm with a mechanical gauge. More symptom detail: Signs of a Bad Oil Pressure Sensor and Diagnostic Fixes.
Is It Safe to Drive with a P0521 Code?
Not until you know whether oil pressure is real or the sensor is lying. Use this decision guide:
- Stop immediately and arrange a tow if the oil pressure warning light is on, the gauge reads near zero while running, or you hear knocking/ticking that was not there before.
- Check the dipstick now if oil looks low, burnt, milky, or heavily sludge-like. Top up only with the correct viscosity if level is low—then diagnose why it was low.
- Short, careful trip to diagnosis only may be reasonable if you have P0521 with a check engine light, normal oil level, no oil warning light, and no abnormal engine noise—still verify mechanical pressure as soon as possible.
- Do not keep highway commuting for days “to see if it clears.” Real low pressure can cause catastrophic engine damage quickly.
What Causes a P0521 Oil Pressure Sensor Range/Performance Fault?
Rank causes so you test the cheap and common items before condemning the oil pump:
| Cause | Likelihood | Notes |
|---|---|---|
| Faulty oil pressure sensor / switch | Common | Incorrect signal while mechanical pressure is normal |
| Low oil level, dirty oil, wrong viscosity | Common | Overdue service is a frequent trigger |
| Damaged wiring or corroded connector | Common | Heat, oil soak, or loose pins skew the signal |
| Wrong, clogged, or bypassing oil filter; sludge restriction | Possible | Flow restriction can drop pressure; housing leaks can also complicate diagnosis |
| Failing oil pump or internal engine wear | Less common but severe | Mechanical gauge reads low; do not “fix” with a sensor only |
| PCM / software issues | Rare | Consider only after oil, wiring, sensor, and pressure tests pass |
On some engines, oil pressure also feeds timing chain tensioners or variable oil control systems. Low pressure can create secondary noises or related codes such as P06DD. Always read companion codes before deciding the repair path.

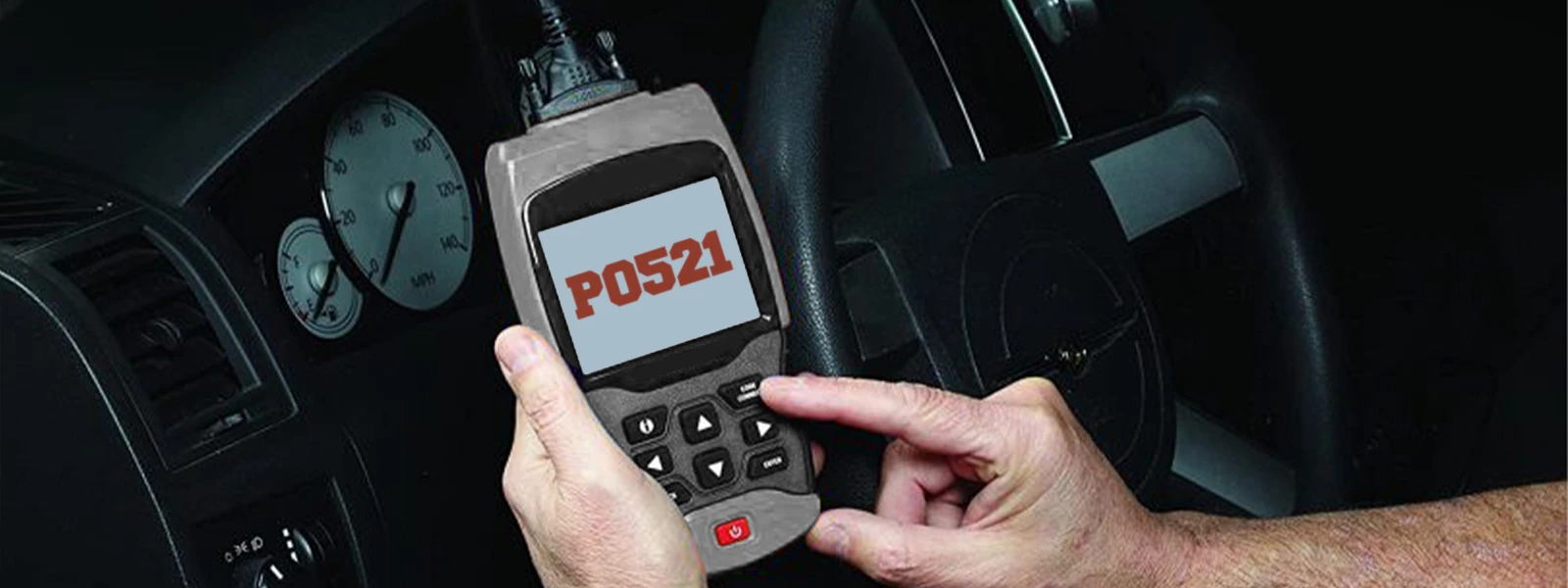

How Do I Diagnose a P0521 Code?
Use this order so you separate a bad oil pressure sensor from real low oil pressure:
- Scan and document. Confirm P0521, note freeze-frame data, and list related codes (P0520, P0522, P0523, P0524, P06DD, VVT codes, etc.).
- Check oil level and condition on a level surface with the engine off (follow the owner’s manual hot/cold procedure).
- Inspect for leaks at the filter, drain plug, cooler lines, valve covers, and around the sensor.
- Visually inspect the sensor connector and wiring for oil intrusion, corrosion, broken locks, or chafing.
- Install a mechanical oil pressure gauge in place of the sensor (or at the designated test port). Compare idle and higher-RPM readings to the service specification for your engine.
- Branch the diagnosis:
- Mechanical pressure normal + scan/gauge data abnormal → focus on sensor and circuit.
- Mechanical pressure low → do not stop at a sensor swap; investigate filter, viscosity, sludge, pump, and bearing wear.
- Test the sensor/circuit electrically with a DVOM per the wiring diagram and manufacturer specs.
- Repair, clear P0521, and verify with a road test and a second scan.
Skipping the mechanical gauge is the most common reason P0521 “comes back” after a parts swap.

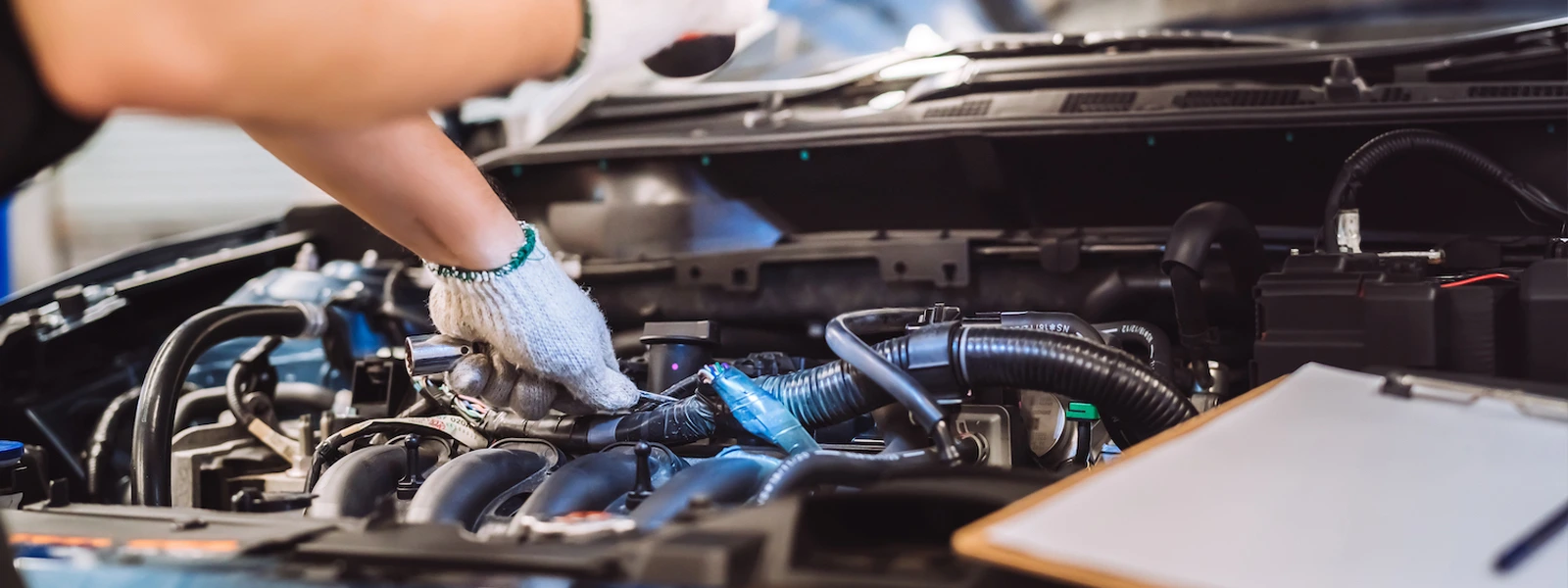

How Do I Fix Code P0521?
Match the repair to the root cause:
- Service the oil and filter with the correct viscosity and a quality filter if level/condition are wrong.
- Repair wiring or connectors if power, ground, or signal circuits are damaged.
- Replace the oil pressure sensor/switch when mechanical pressure is proven good and the sender fails testing—or when diagnosis clearly points to the sensor.
- Address mechanical oil pressure faults (pump, pickup, sludge, internal wear) when the gauge confirms low pressure.
When the sender is the confirmed fault, use exact-fit lookup for your year, make, model, and engine. Start at A-Premium and select an oil pressure sensor / sender that matches your application notes (gauge-equipped vs switch-style designs can differ).
How Much Does It Cost to Fix P0521?
P0521 repair cost swings widely because a sensor job and an oil-pump job are not the same repair. Treat the ranges below as planning estimates:
| Repair | Typical DIY parts (Estimated) | Typical shop total (Estimated) |
|---|---|---|
| Oil and filter service | About $40–$100 | About $60–$150+ |
| Oil pressure sensor replacement | Often about $20–$120 for the sensor | Often about $100–$350 parts + labor |
| Wiring / connector repair | Varies | About $100–$400 depending on access |
| Oil pump replacement | Parts vary by engine | Often several hundred to $1,000+ |
| Internal engine repair | Case-by-case | Can reach $1,000–$5,000+ if bearings or major wear are involved |
Accurate diagnosis is what keeps you from buying a sensor when you need a pump—or replacing a pump when a $40 sender and a wiring repair would have cleared P0521.
How Is P0521 Different from P0520, P0522, P0524, or P06DD?
These codes sit in the same lubrication monitoring family but do not mean the same failure:
| Code | Typical focus |
|---|---|
| P0520 | Oil pressure sensor/switch circuit (general circuit fault) |
| P0521 | Sensor/switch range or performance (this article) |
| P0522 | Sensor/switch circuit low |
| P0523 | Sensor/switch circuit high |
| P0524 | Engine oil pressure too low (leans more toward confirmed low pressure conditions) |
| P06DD | Engine oil pressure control system fault (control/solenoid strategy—diagnose with its own steps) |
If multiple oil-pressure codes appear together, start with oil level and a mechanical gauge, then chase the circuit and control components indicated by the full code set. For code category context, see the OBD2 Codes List.
Final Takeaway
P0521 is a range/performance complaint about the oil pressure signal—not an automatic sentence to buy an oil pump, and not proof that “it’s only a sensor.” Check oil level and condition, respect oil-pressure warning lights and engine noise, verify pressure with a mechanical gauge, then repair the wiring or replace the oil pressure sensor when the data says the sender is wrong.
Ready to replace a confirmed bad sender? Use vehicle fitment on A-Premium to find the correct oil pressure sensor, then clear and verify P0521 after install.
FAQs
What does P0521 mean in plain English?
It means the computer thinks the oil pressure sensor signal is out of range or not performing as expected. The cause may be the sensor, the wiring, the oil condition/level, or real low oil pressure.
Can a bad oil pressure sensor cause P0521?
Yes. A failed sender is one of the most common causes—especially when a mechanical gauge shows normal pressure while the dash reading or scan data is wrong.
Will an oil change fix P0521?
Sometimes, if the oil was critically low, the wrong viscosity was used, or the oil/filter condition was restricting pressure. If pressure is still abnormal after a correct oil service, continue diagnosis.

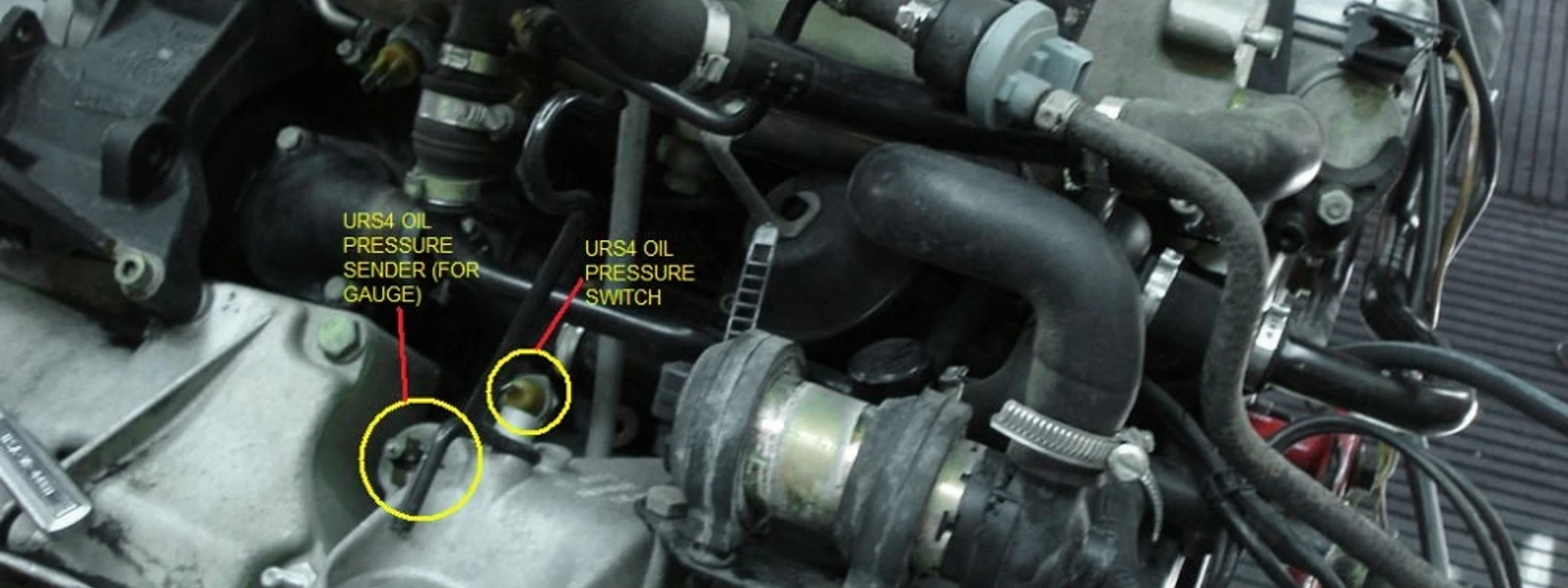

Where is the oil pressure sensor located?
Location varies by engine. Many sensors thread into the engine block, oil filter housing, or oil gallery near the filter. Use a vehicle-specific diagram before removing parts.
Can low oil pressure destroy an engine quickly?
Yes. Without adequate oil pressure, bearings and other moving parts can be damaged in a short time. That is why oil warning lights and knocking noises require an immediate shutdown.
Should I replace the oil pump for P0521?
Only if testing shows mechanical oil pressure is actually low and other simple causes (level, viscosity, filter, pickup/screen, sludge) are ruled out. Do not replace the pump solely because P0521 is stored.
