What is an exhaust resonator and pipe assembly?
An exhaust resonator and pipe assembly combines a resonator with the vehicle-specific exhaust pipe section attached to it. The resonator helps control selected exhaust sound frequencies, while the connected pipe routes exhaust gases between adjoining sections of the system.
Because the resonator and pipe are supplied as one formed assembly, fitment depends on more than the resonator body itself. Pipe bends, overall length, flange or slip-joint connections, hanger locations, installation position, engine and vehicle configuration, and interchange numbers must all match the original exhaust layout.
How to choose the right exhaust resonator and pipe assembly
Start with the exact vehicle, then compare the complete assembly from one connection point to the other. A resonator with a similar body shape can still be attached to a pipe with different bends, hangers, or flange positions.
| Check |
What to verify |
Why it matters |
| Vehicle fitment |
Year, make, model, engine, trim, and drivetrain notes where listed |
The same model can use different exhaust routing or pipe lengths. |
| Installed section |
Front, center, rear, or other stated position |
Different exhaust sections use different adjoining connections, lengths, and hanger points. |
| Pipe routing |
Bends, length, resonator location, and underbody clearance |
A similar resonator body does not make differently formed pipes interchangeable. |
| Connections |
Flanges, slip joints, inlet/outlet orientation, and flange clocking |
The assembly must connect to adjoining exhaust sections without being forced into alignment. |
| Hangers and brackets |
Number, location, and angle of hanger rods or brackets |
Incorrect hanger geometry can cause poor alignment, vibration, or body contact. |
| Part number |
Complete OE or interchange reference where available |
A complete reference provides a stronger fitment check than visual similarity alone. |
| Package contents |
Whether clamps, gaskets, or other joint hardware are included |
Required installation hardware can vary by assembly and may be sold separately. |

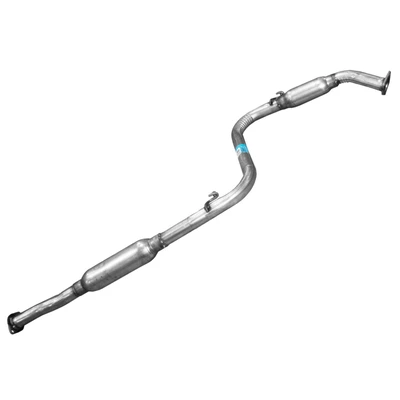

Walker exhaust resonator and pipe assemblies
A-Premium lists Walker exhaust resonator and pipe assemblies across a wide range of vehicle applications. Walker part numbers are application-specific, so the brand name alone does not establish fitment. Confirm the exact Walker part number, vehicle application, exhaust position, pipe routing, and available OE or interchange references before ordering.
Specifications can differ between Walker assemblies. Depending on the part number, listings may identify front or rear installation positions, steel construction, different resonator body dimensions, and vehicle-specific interchange numbers. Use those product-level specifications to narrow the correct assembly after selecting the vehicle.
Exhaust resonator vs. muffler, catalytic converter, and exhaust pipe
Several exhaust components can sit close together under the vehicle, but they do different jobs. Identifying the damaged section correctly helps avoid ordering the wrong assembly.
| Part |
Main role |
How it differs |
| Exhaust resonator |
Tunes or reduces selected exhaust sound frequencies. |
It is a sound-control component and does not perform the emissions-treatment job of a catalytic converter. |
| Exhaust muffler |
Reduces overall exhaust noise before gases leave the system. |
A muffler and resonator may both affect sound but use different locations and internal designs. |
| Catalytic converter |
Treats exhaust gases as part of the vehicle's emissions system. |
It is an emissions component, not a substitute for a resonator. |
| Exhaust pipe |
Routes exhaust gases between system components. |
A plain pipe section may not include a resonator body. |
If inspection shows another section is damaged, compare the appropriate exhaust muffler assembly, exhaust pipe assembly, or catalytic converter instead of substituting part names.
Signs an exhaust resonator and pipe assembly needs inspection
Changes in sound or exhaust odor can point to a problem in this section, but they do not prove the resonator itself has failed. Inspect the complete assembly and both adjoining connections.
- A louder or noticeably different exhaust tone near the resonator section.
- Metallic rattling from internal resonator damage, a loose shield, or exhaust contact with the body.
- Visible corrosion, holes, cracks, or damaged welds on the resonator or attached pipe.
- Soot marks or exhaust leakage around a flange, slip joint, or pipe connection.
- Broken or distorted hangers that allow the pipe to sag, vibrate, or contact nearby components.
An exhaust leak can also come from a flex section, muffler connection, catalytic-converter joint, or another pipe. Locate the source before replacing the assembly so the repair targets the correct exhaust section.
Popular exhaust resonator and pipe assembly applications
Vehicle selection is the fastest way to narrow assemblies with different pipe lengths, bends, and hanger locations. A-Premium currently lists popular applications across Ford, Toyota, Honda, Nissan, and other makes.
Frequently Asked Questions (FAQ)
What does an exhaust resonator and pipe assembly do?
The resonator helps control selected exhaust sound frequencies, while the attached pipe carries exhaust gases between adjoining sections of the system. Because the pipe is formed for a specific underbody layout, the entire assembly must match the vehicle rather than just the resonator body.
Is an exhaust resonator the same as a muffler?
No. Both affect exhaust sound, but they are separate components. A resonator is generally used to tune or reduce selected sound frequencies, while a muffler is designed for broader exhaust-noise reduction. Their locations, connections, and vehicle fitment are not interchangeable.
How do I know which Walker exhaust resonator and pipe assembly fits my vehicle?
Select the exact vehicle first, then compare the Walker part number, installation position, pipe bends, flange or slip-joint connections, hanger locations, and available OE or interchange numbers. Two Walker assemblies can use similar resonator bodies while fitting completely different exhaust layouts.
Why does a replacement resonator pipe not line up with the exhaust system?
The assembly may be wrong for the vehicle configuration, or an adjoining pipe, hanger, or mounting point may be bent or corroded. Compare the complete routing and connection points before tightening. Do not use clamps or fasteners to pull a mismatched pipe into position.
Are exhaust gaskets and clamps included with a resonator and pipe assembly?
Only when the product listing states that they are included. Check both connection points before service and review the package contents for required gaskets, clamps, or fasteners. Corroded adjoining hardware or damaged mating surfaces may also need separate replacement.
